SINGLE PHASE HI 3.6/5kW | Installer Manual28

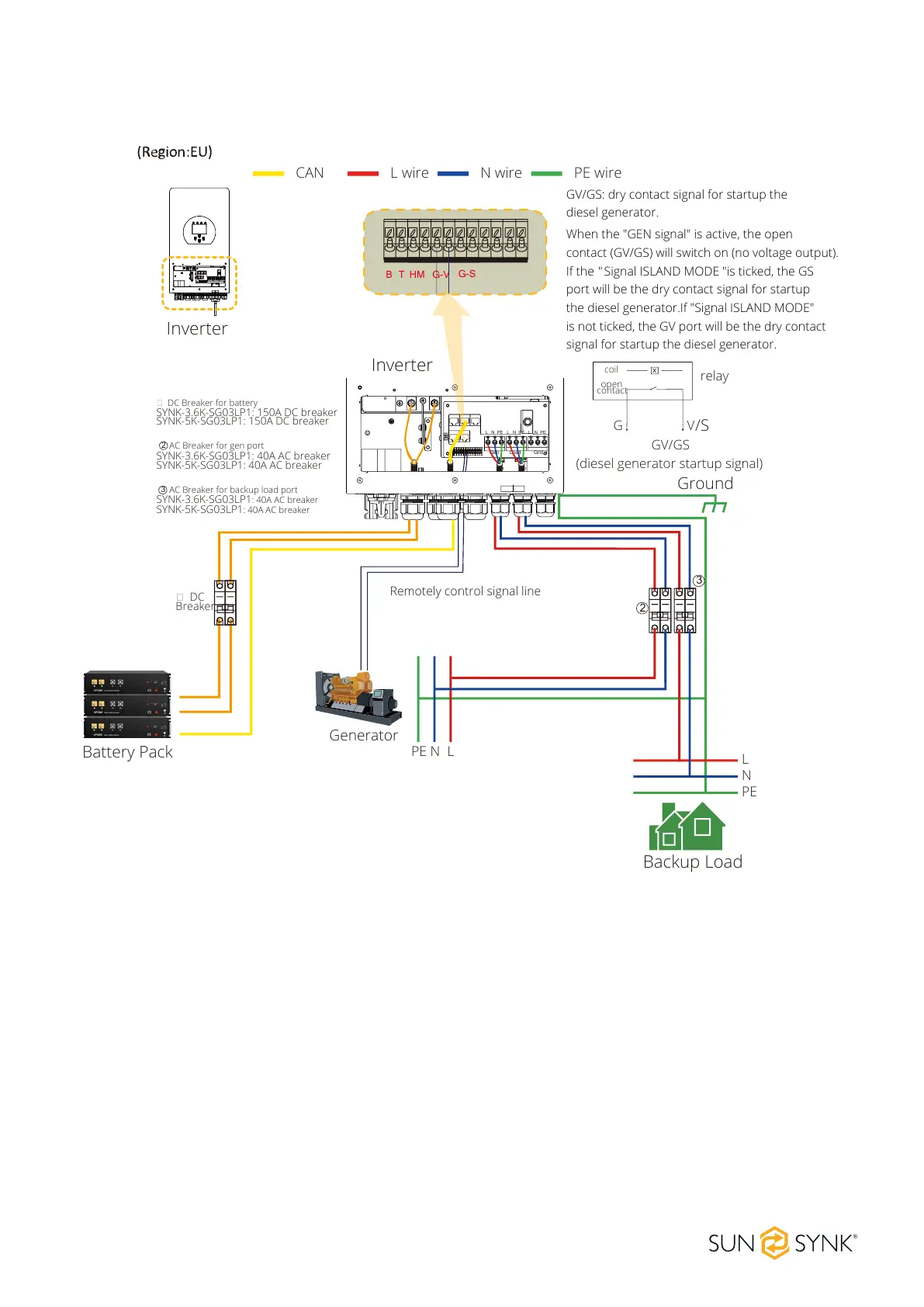

Typical Application of Diesel Generator
GV/GS: dry contact signal for startup the
diesel generator.
When the "GEN signal" is active, the open
contact (GV/GS) will switch on (no voltage output).
If the " Signal ISLAND MODE "is ticked, the GS
port will be the dry contact signal for startup
the diesel generator.If "Signal ISLAND MODE"
is not ticked, the GV port will be the dry contact
signal for startup the diesel generator.
ON
1 2
ON
1 2
Load
L N PEL N PE
L N PE
Grid
Gen
L wireCAN N wire PE wire
� DC Breaker for battery
SYNK-3.6K-SG03LP1: 150A DC breaker
SYNK-5K-SG03LP1: 150A DC breaker
Inverter
Battery Pack
� DC
Breaker
Backup Load
L
N
PE
LNPE
Ground
Generator
2
3
AC Breaker for gen port
SYNK-3.6K-SG03LP1: 40A AC breaker
SYNK-5K-SG03LP1: 40A AC breaker
2
Remotely control signal line
B HM G-V
G-S
T
GV/GS
(diesel generator startup signal)
relay
coil
open
contact
G V
/S
SYNK-3.6K-SG03LP1: 40A AC breaker
AC Breaker for backup load port
3
SYNK-5K-SG03LP1: 40A AC breaker
Inverter
