2.2 CABIN
1 Monitor
2 Heating/defrost alternation switch
3 Right operating handle
4 Bulldozer/chassis telescopic control rod
6 Engine accelerograph speed control
7 Starting switch
8 Wane control switch
9 Seat
10 Left operating handle
11 Pilot safety rod
12 Assisting control pedal
13 Left-traveling control rod
14 Right-traveling control rod
15 Arm swing control pedal

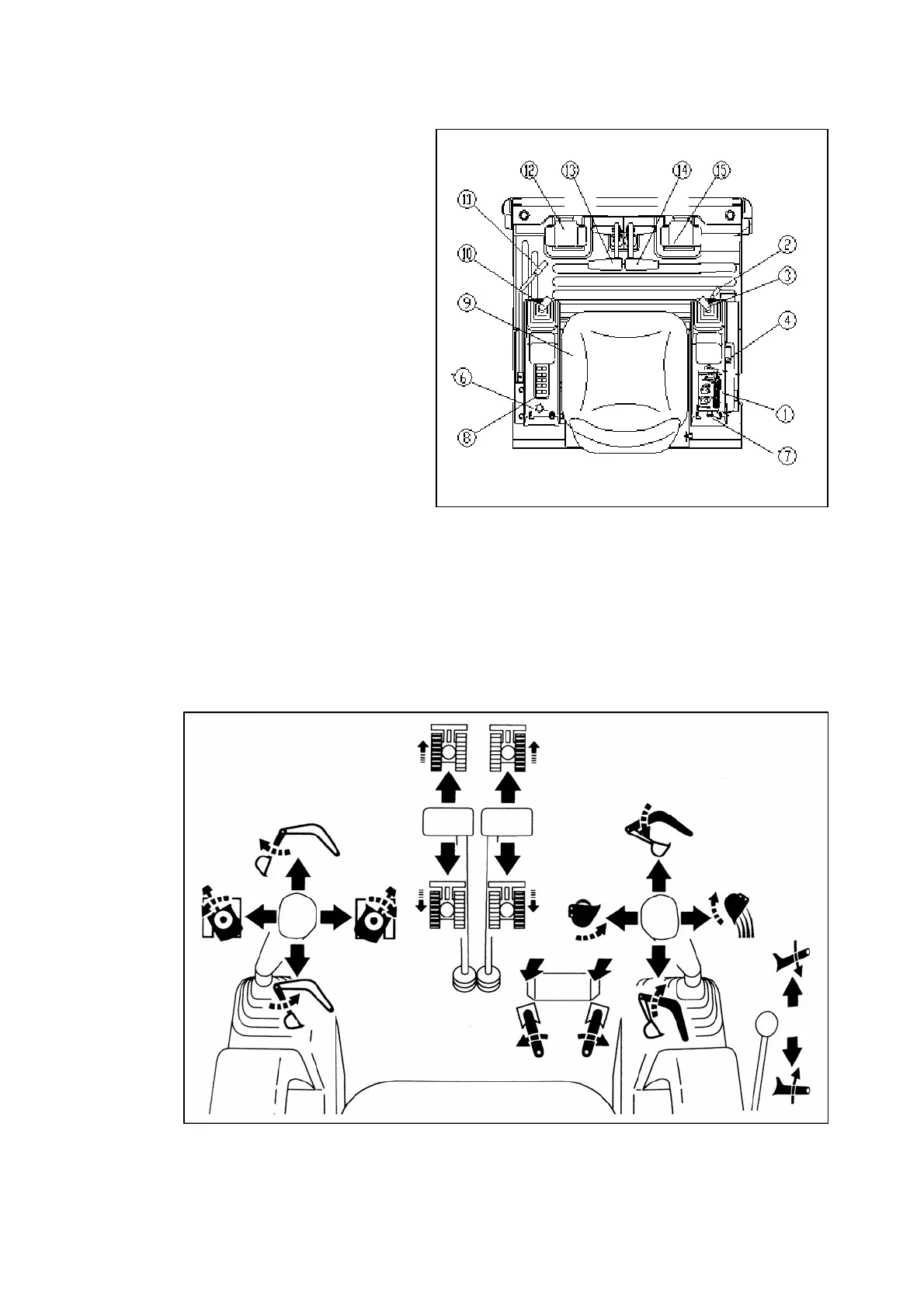

Cab operation:
