19

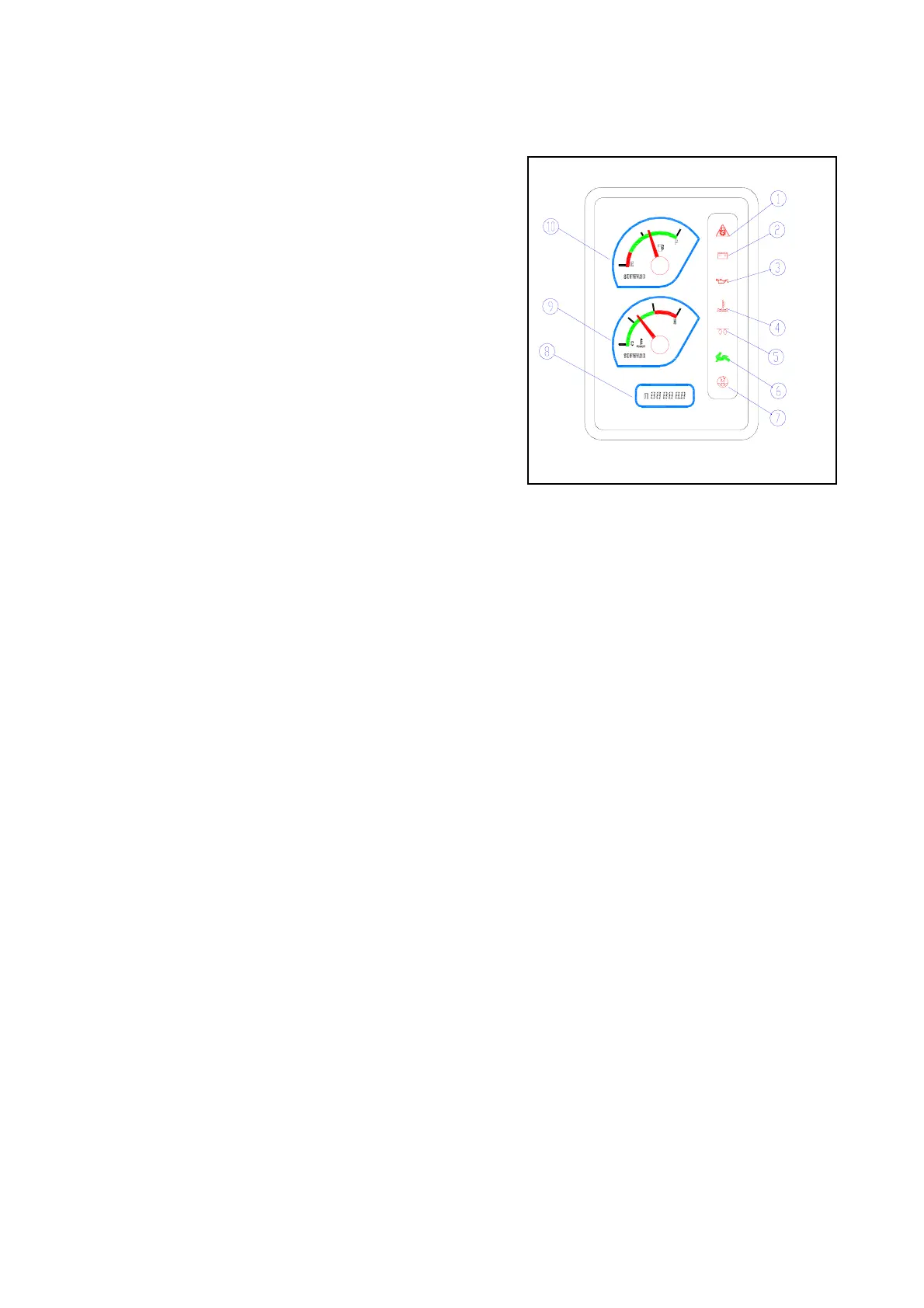

2.3 MONITOR PANEL
— Engine abnormality condition indicator
2 — Electric charging indicator
3 — Engine oil pressure warning indicator
4 — Cooling water temperature warning indicator
5 — Warm-up indicator
6 — High speed traveling indicator
7 —Air filter clogged indicator lamp
8 —Work hour meter
9 — Cooling Water temperature indicator
10—Fuel level indicator
Check operation control
When the start switch is on position 3 (refer to start
switch), auto-check start, all the indicators come on
for about 2 seconds.
1 — Engine abnormality condition indicator
This symbol light comes on when the engine is in an abnormal condition (oil pressure too low or
cooling water temperature too high), meanwhile, the buzzer alarms, the engine will automatically
stop after about 30 seconds.
2 — Electric charging indicator
This symbol light comes on when the generator working condition is abnormal; and it turns off
when generator becomes normal.
3 — Engine oil pressure warning indicator
This indicator indicates the engine oil pressure. When the pressure is normal, there’s no
indication; it lights on when the pressure is low and meanwhile, buzzer will warn.
4 — Cooling water temperature warn indicator
When the water temperature is normal, there’s no display, the signal lights up when the
temperature is high, and the buzzer warns at the same time.
5 — Warm-up indicator
If the machine has to start in cold weather, put the key at warm-up position and this signal will
light up.
6 — High speed traveling indicator
This indicator lights up when machine is traveling at high speed; and it will not light up when the
machine is traveling at low speed.
7 — Air filter clogged indicator lamp
When the air filter core is clogged, red indicator light comes on. Please clean or replace outer
core.
FIG.2-5
