framework, keep as far as possible away from the battery connection wire end.
z Start engine.
2) Separate assistant battery
z First, break black cathode (-) wire away from framework.②
z Disjoin the other end of black cathode (-) wire from assistant battery. ②
z Disjoin red anode (+) wire from assistant battery.①
z Disjoin red anode (+) wire from machine battery.①
3.4 TRAVEL CONTROL
3.4.1 CONTROL TRAVEL WITH PEDAL

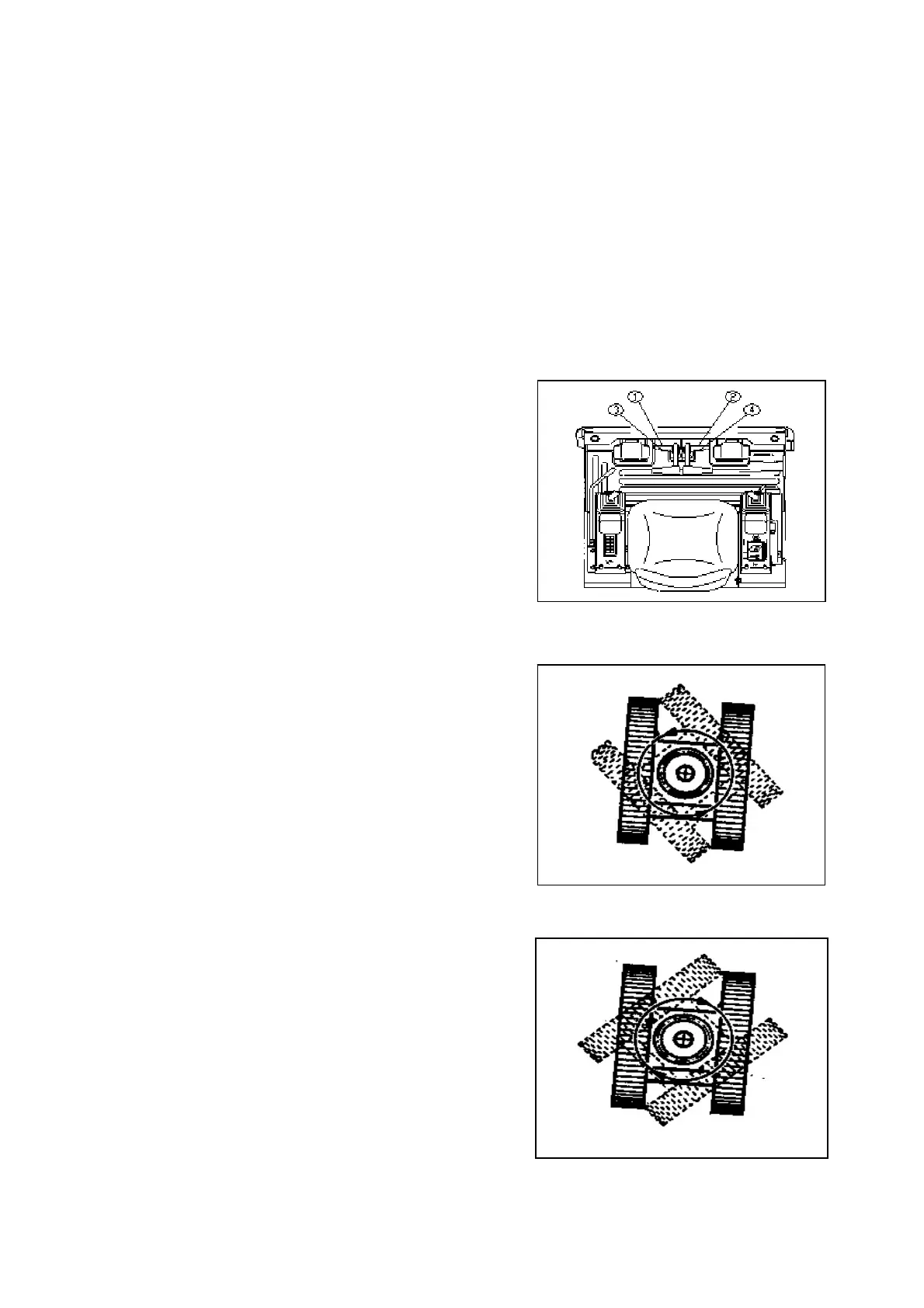

1) Straight travel: Treadle two pedals forward at the
same time. (pedal 1 and 2)
2) Straight back: Treadle two pedals backward at the
same time. (pedal 3 and 4)
3) Turning in one point
z
Turn left (FIG. 3-9): Treadle right pedal 2 forward
and treadle left pedal 3 backwards. (FIG. 3-6)
z Turn right (FIG. 3-10): Treadle right pedal 4
backwards and treadle left pedal 1 forward. (FIG.
3-6)
FIG.3-10
FIG 3-9
FIG 3-8
