7.3 OPERATION PARAMETER

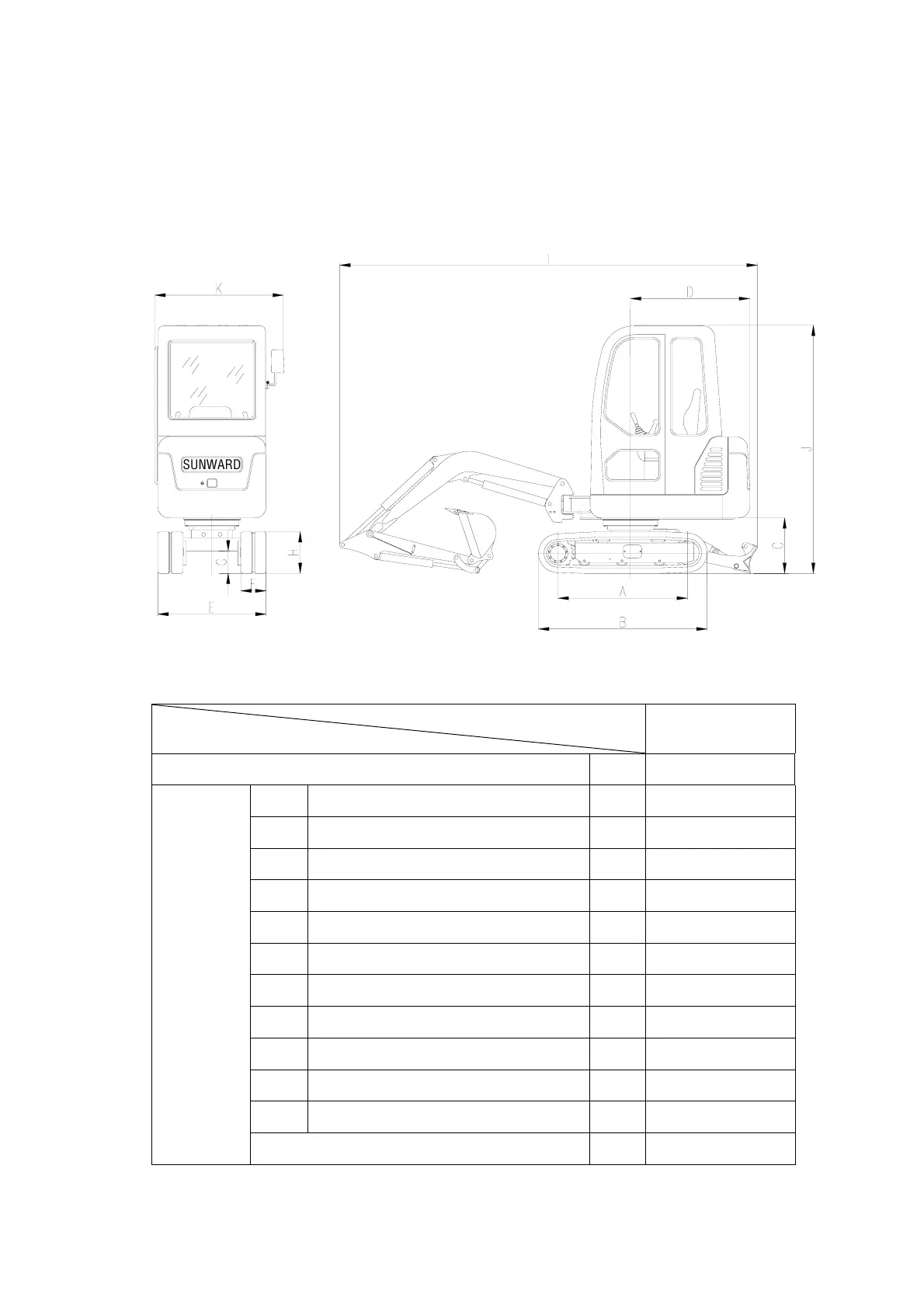

7.3.1 Outline dimension
(2)Working range dimension
model
parameter
SWE20B
Outline dimension(length×width×height) mm 3820X1170X2378
A Distance between wheel mm 1210
B Length of track mm 1537
C Turret distance to ground mm 446
D Gyration radius of turret mm 1122
E Chassis width mm 990/1320
F Track width mm 230
G Ground clearance of chassis mm 160
H Track height mm 381
I Overall length mm 3820
J Overall height(to cab top) mm 2210
K Upper structure width mm 1213
Dimension
parameter
Dozer dimension(length × width) mm 1310×267
