OPERATION & MAINTENANCE MANUAL SWE215F
【Important】
Stopping the engine improperly may damage
turbocharger.
Set start key to OFF position, stop the engine,
remove the key from starting lock, set pilot safety
lever to LOCK position.
Note
After completing work, the gear oil temperature
might be very high, wait for temperature to cool
down.
Pull out dipstick of swing redactor, wipe off oil trace,
reinsert it and pull out again, the oil mark should be
between the two scales.
If necessary, remove oil fill cap to add gear lubricating
oil. Check oil level again.

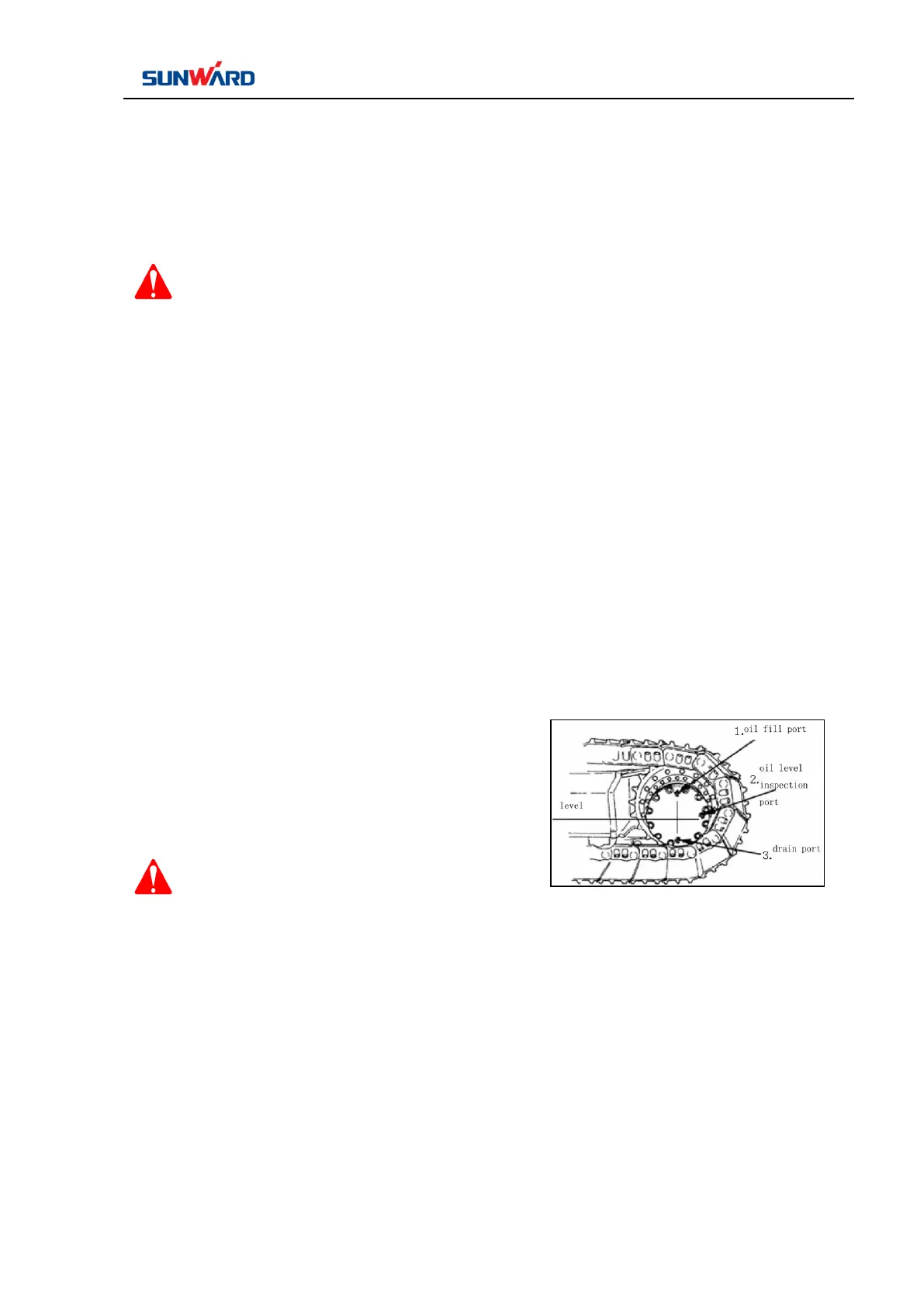

4.5.6.2 Checking Travel reduction gearbox Oil Level
Stop the machine at level ground, set the connect line
of travel reduction gearbox oil fill port 1 and drain
port 3 is vertical from horizontal level.
Shut auto-idle speed switch, run the engine unloaded
at low speed for 5 minutes.
【Important】
Stopping the engine improperly may damage
turbocharger.
Set start key to OFF position, stop the engine, remove
the key from starting lock, set pilot safety lever to
LOCK position.
Note
After completing work, gear temperature may
be very high. Wait for temperature to cool down
before loosening oil fill plug of fill port 1. Pay
attention that to keep body and face away from
oil fill port 1 during operation.
With gear oil cooled down, gradually loosen oil fill
port plug to release pressure.
Remove plug of oil fill port 1 and inspection port 2,
check through inspection port 2 that gear oil level
must be within the range of 10mm under inspection
port 2.
If necessary, add lubricating gear oil through oil fill
port 1, and then recheck oil level.
