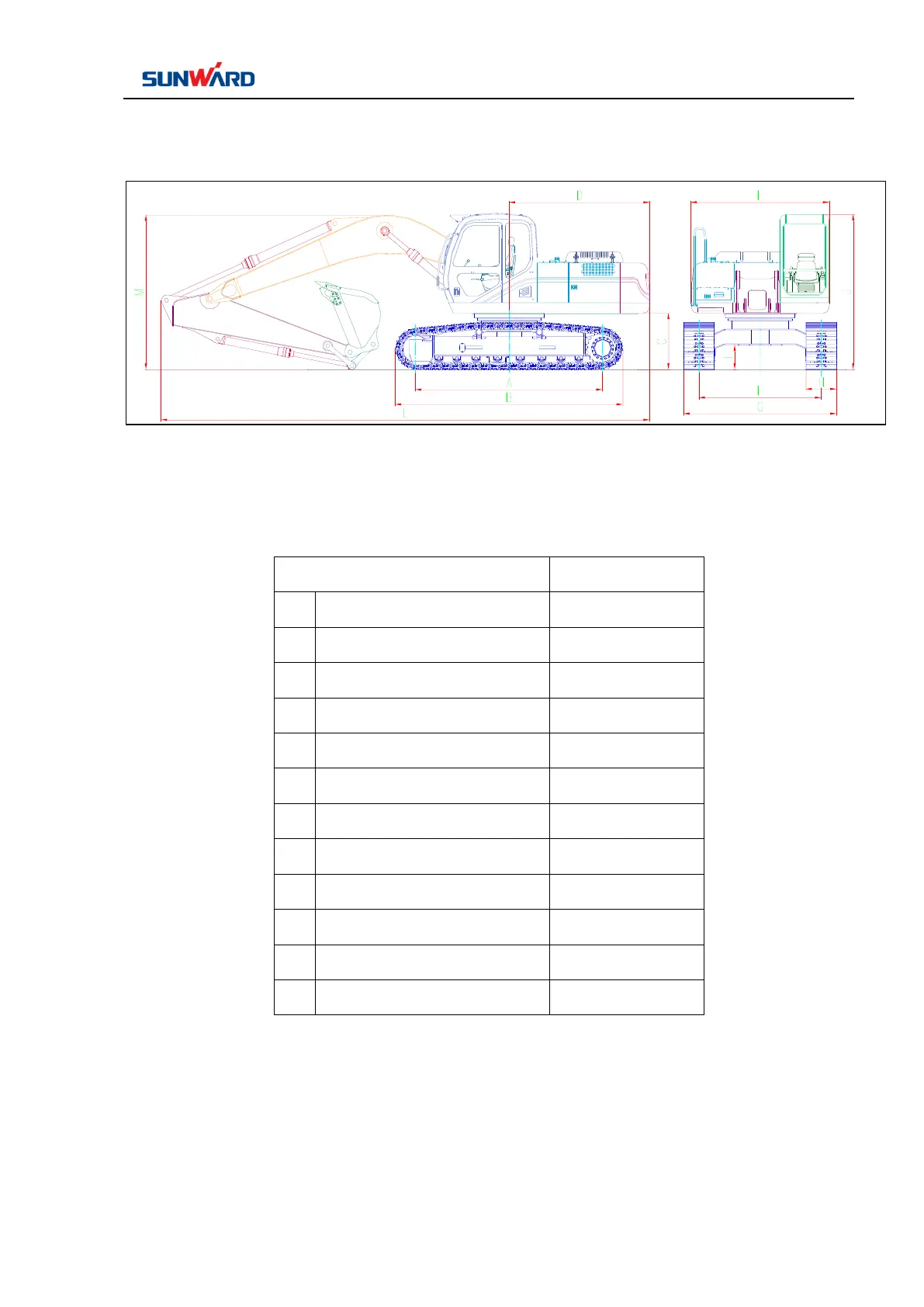

5.1.2 Dimension
Machine Model
SWE215F-5
A
Tumbler distance
3465
B
Overall length of crawler
4260
C
Platform ground clearance
1060
D
Tail swing radius
2750
E
Upper-carriage width
2710
F
Track gauge
2200
G
Chassis width
2800
H
Crawler width
600
I
Chassis ground clearance
478
J
Overall height of cab
2970
K
Transport length
9570
L
Boom height
2945
Unit：mm
