3.2.8 Left Pilot Control Handle
(With One-key Idling Switch)

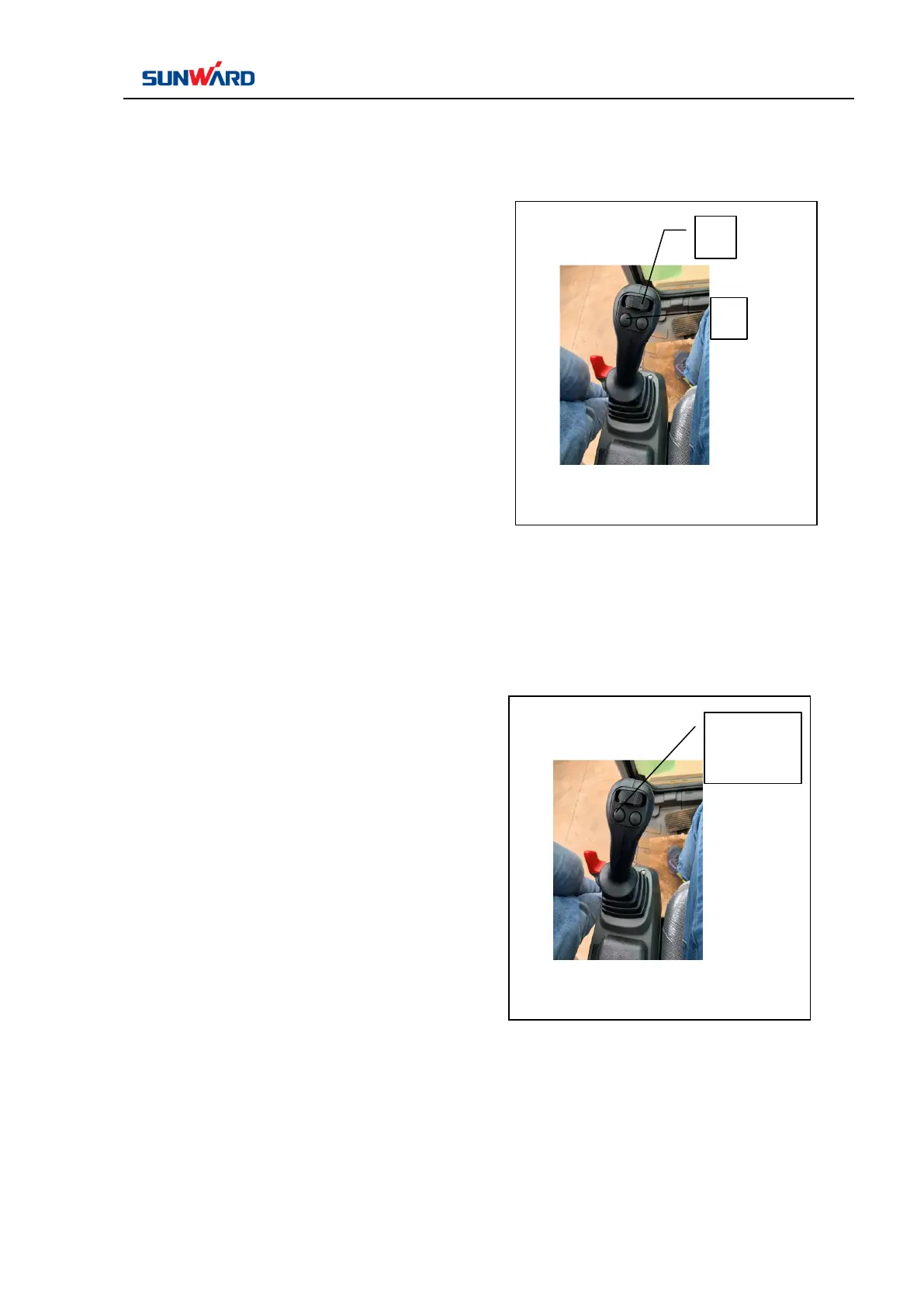

 Left side work equipment control handle is
used to operate arm to dig or dump and control
upper-structure to slew.
(1) push the handle forward--arm extend
(2) pull the handle backward-arm retract
(3) push the handle to right--
upper-structure swing clockwise
(4) push the handle to left--upper-structure
swing anticlockwise
A (Dial): Slew the auxiliary attachment
B (Button): One-key for idling speed
3.2.9 One-key Idling Switch
 The one-key idle speed switch can reduce the
rev of engine.
 This switch is located on the top of the left
handle.
 When engine is at the high speed, pull this
switch, rev of engine slow down to idle speed,
pull it once again , rev will restore.
A
B
、
one-key
idling
