45°.
 Repeat 3 times from step 3 until lubricating grease
overflows from swing bearing seal.
4.5.7.2 Lubricating Swing Mechanism
 Stop the machine at level ground, lower the bucket to
ground.
 Stop auto-idle switch, run the engine unloaded at low
speed for 5 minutes.
【Important】
 Stopping the engine improperly may damage
turbocharger.
 Set start key to OFF position, stop the engine, remove
the key from starting lock, set pilot safety lever to
LOCK position.

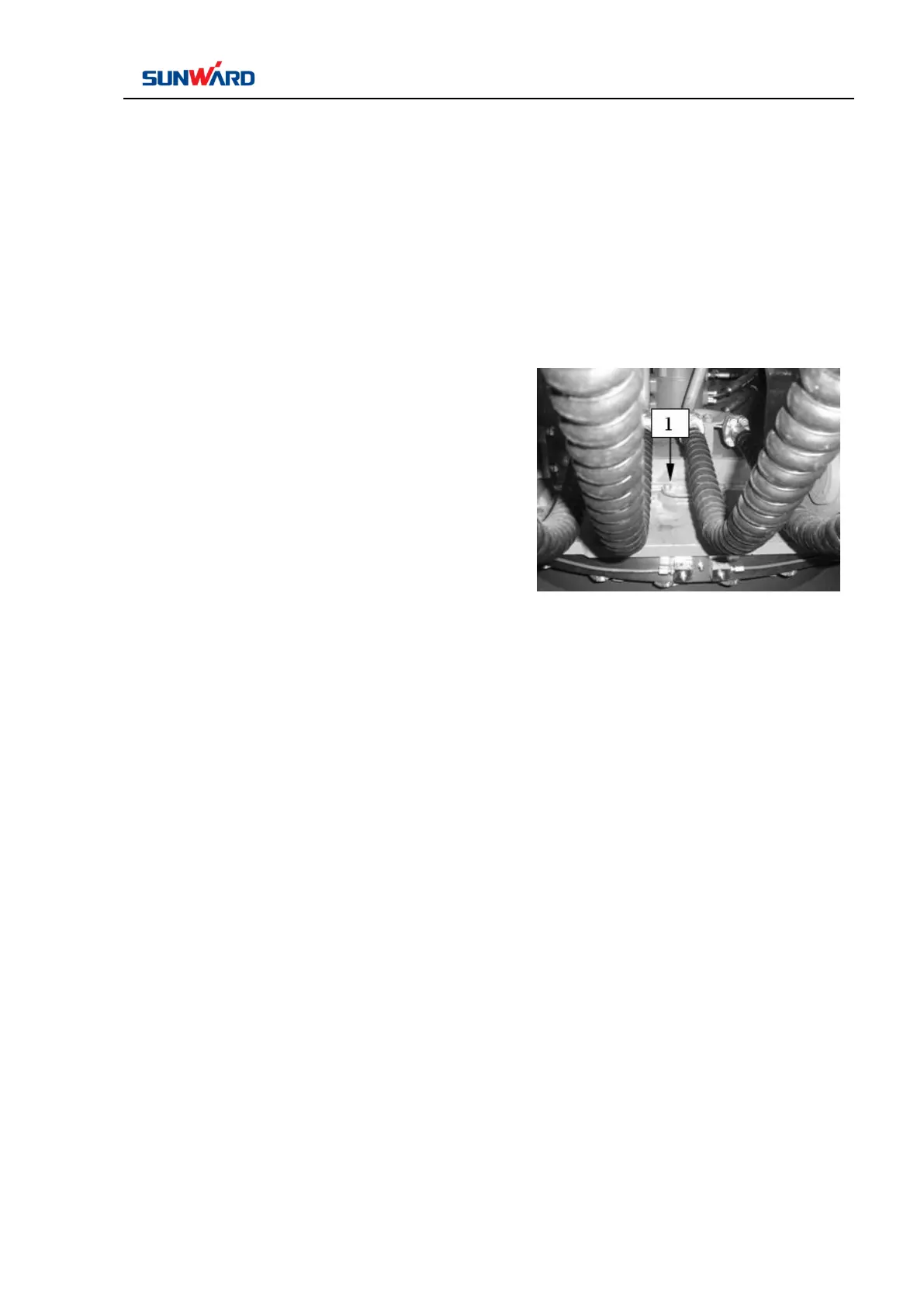

 Loosen 2 bolts of grease fill port cover located on
front part of platform. Then remove grease fill port
cover (1).
 Check that grease height in the position where pinion
passes by should be at least 14mm (0.6in), and free of
pollution; add 0.5kg lubricate grease to reach standard
height if necessary.
 Check the color of the grease, in case of white, change
it.
 Drain port locates around central swing joint under
lower carriage frame.
4.5.7.3 Replacing Engine Oil, Engine Oil Element
For details, refer to chapter 4.5.2.1.
4.5.7.4 Replacing Fuel Filter
For details, refer to chapter 4.5.2.3.
4.5.7.5 Replacing Fuel Primary Filter
For details, refer to chapter 4.5.2.4.
