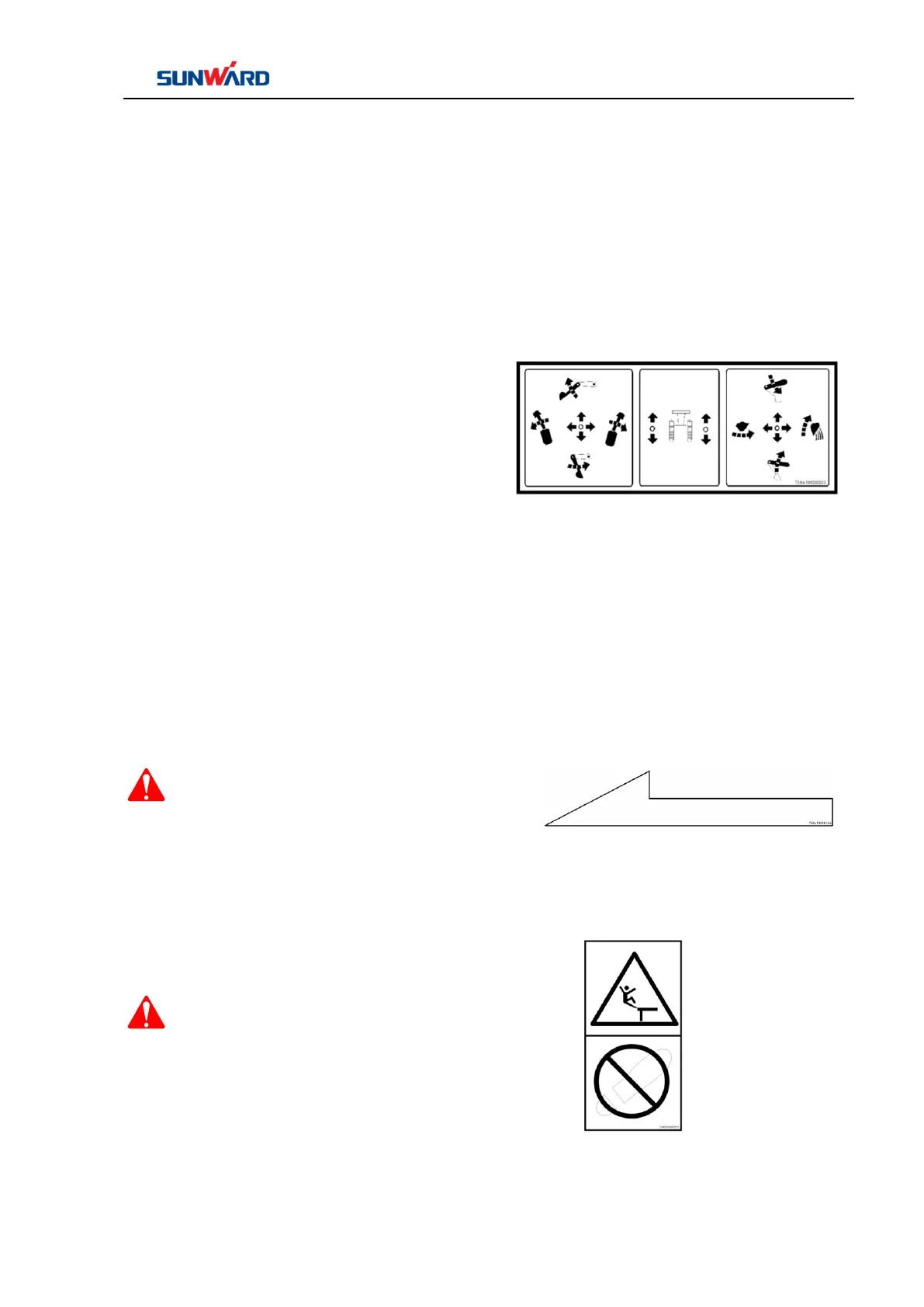

OPERATION & MAINTENANCE MANUAL SWE215F-5
working device motion, swing action of upper
structure, machine travel accordingly.
The right pilot handle controls motions as below：
a. boom rise
b. boom fall
c. backhoe loading , or grab bucket rotate clockwise
d. backhoe dumping, or grab bucket rotate
anticlockwise.
Left pilot handle controls motion as below：
e. rotate upper-structure to left (counterclockwise)
f. rotate upper-structure to right (clockwise)
g. extend arm
h. retract arm
Operation together with two pilot handles can also
take compound motion. In addition, horn switch
button is fixed on the handle.
Two travel control lever control forward motion,
reverse motion and steering of the machine.
（17）Direction Label
This label indicates travel direction of machine when
“travel control lever is pushed forward”.
Warning
In case that driving wheel is located underneath cab,
machine will travel rearward when pushing “travel
control lever” forward.(On this occasion, symbol
indicates backward).
(18) No Stepping Label
Warning
Stay clear of operation area of working device.
