2.1 POSITION OF THE VARIOUS MACHINE COMPONENTS
1. Cabin
2. Seat
3. Rear hood
4. Fuel tank
5. Hydraulic tank
6. Traveling motor
7. Support wheel
8. Carrier board
9. Rubber crawler
10. Guide wheel
11. Dozer blade
12. Dozer cylinder
13. Bucket
14. Link rod

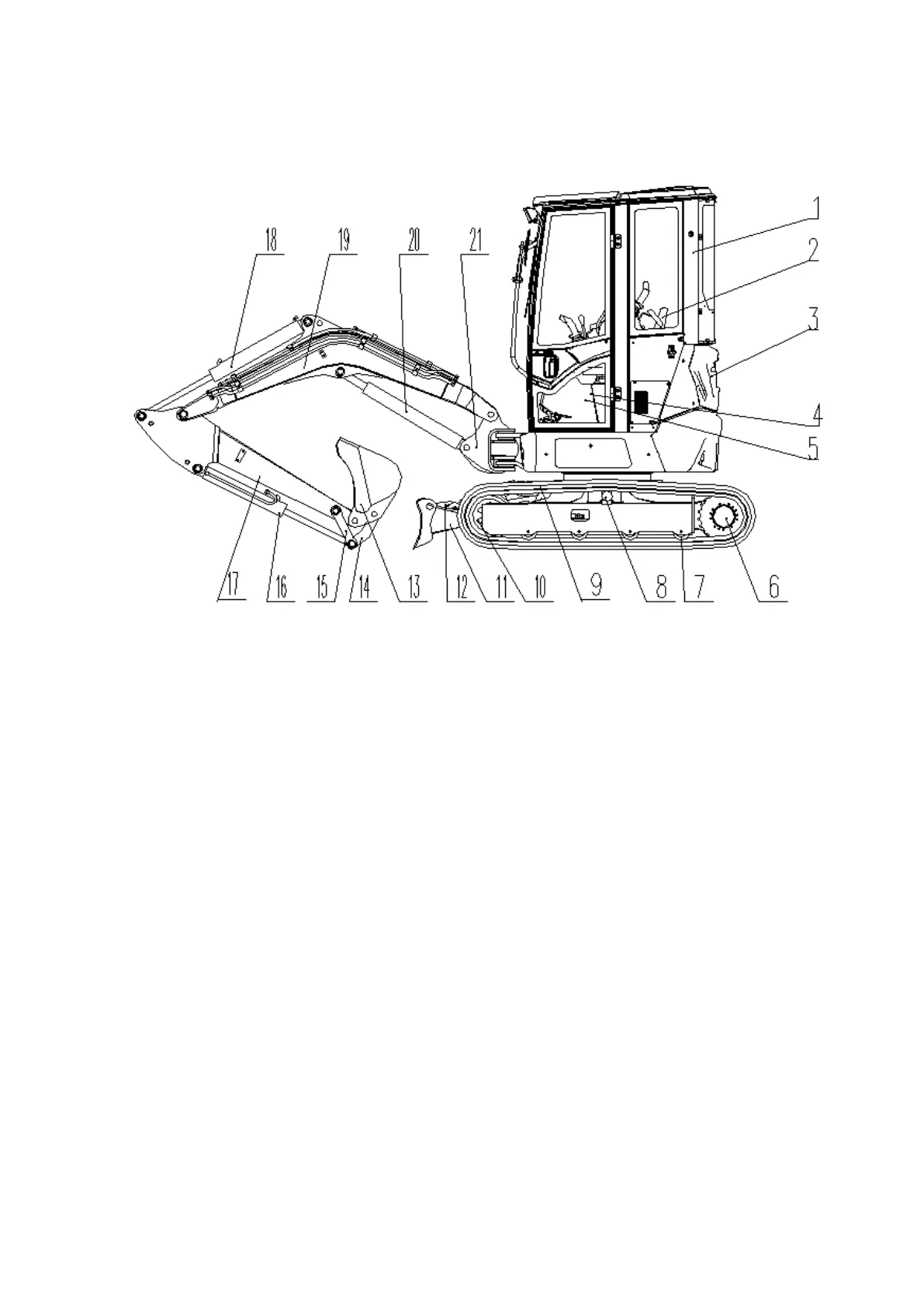

FIG. 2-1
