SUNWARD SWE25UF - Excavation Safety Precautions

34
connection. When connecting with excavator framework, keep as far as possible away
from the battery connection wire end.
⚫ Start engine.
2) Separate assistant battery
⚫ First, break black cathode (-) wire ② away from framework.
⚫ Disjoin the other end of black cathode (-) wire ② from assistant battery.
⚫ Disjoin red anode (+) wire ① from assistant battery.
⚫ Disjoin red anode (+) wire ① from machine battery.

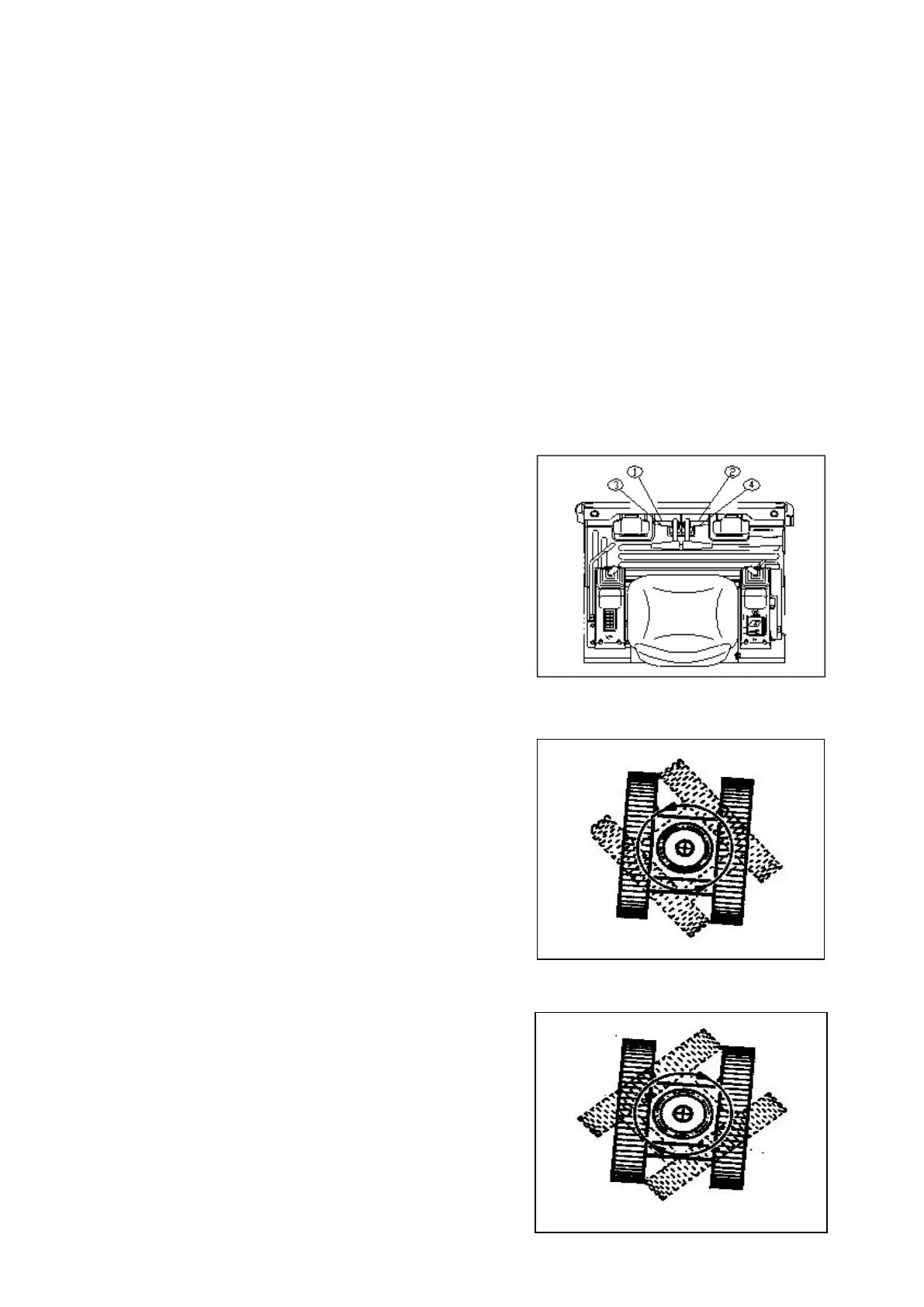

3.4 TRAVEL CONTROL
3.4.1 CONTROL TRAVEL WITH PEDAL
1) Straight travel: Treadle two pedals forward at the
same time. (pedal 1 and 2)
2) Straight back: Treadle two pedals backward at the
same time. (pedal 3 and 4)
3) Turning in one point
⚫ Turn left (FIG. 3-9): Treadle right pedal 2 forward
and treadle left pedal 3 backwards. (FIG. 3-6)
⚫ Turn right (FIG. 3-10): Treadle right pedal 4
backwards and treadle left pedal 1 forward. (FIG.
3-6)
FIG.3-10
FIG 3-9
FIG 3-8
