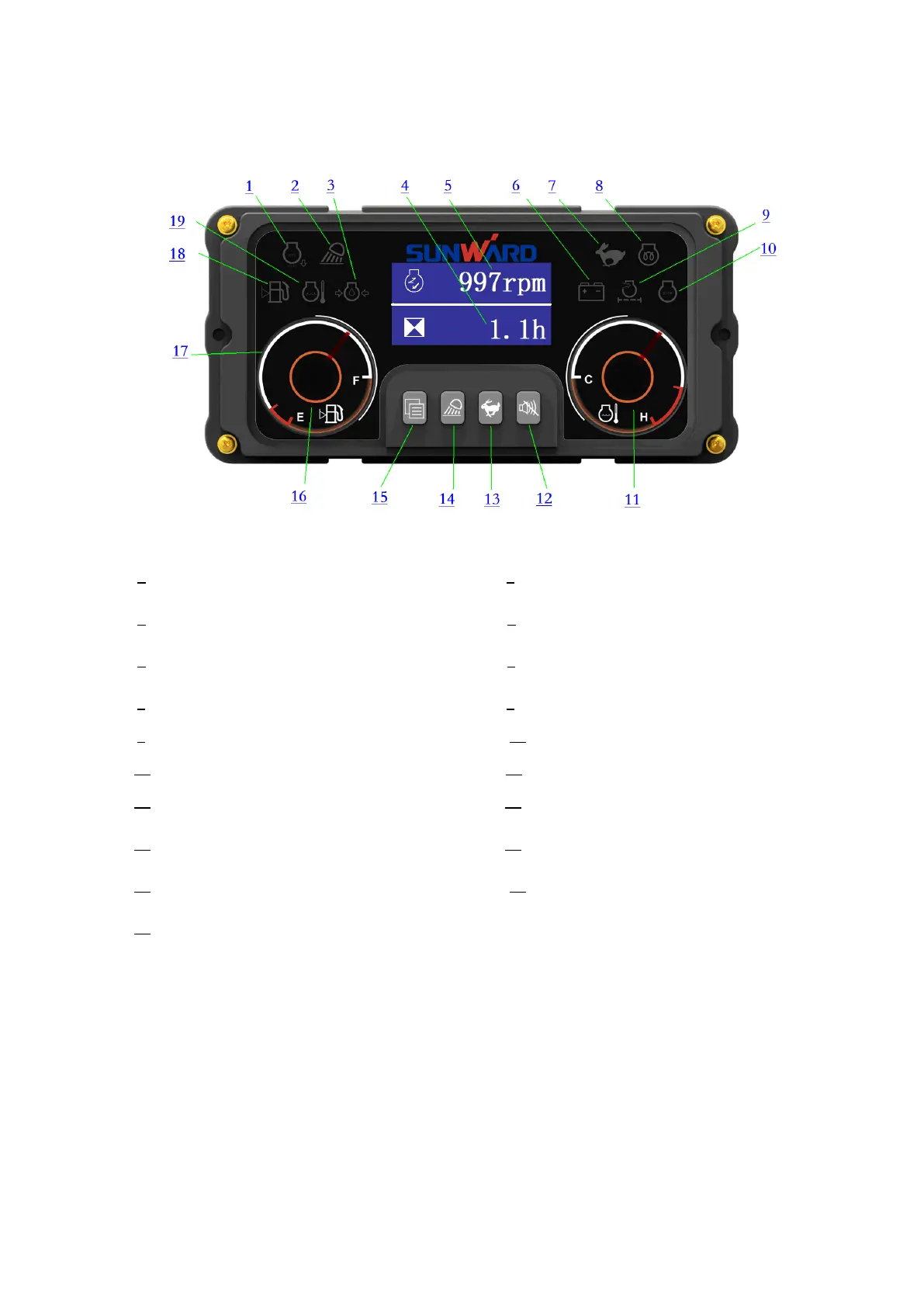

2.4 MONITOR PANEL
1 — Automatic idling indicator 2 — Working Light indicator
3 — Engine oil pressure warning indicator 4 — Work hour meter
5 — Engine speed meter 6 — Electric charging indicator
7 — High speed traveling indicator 8 — Warm-up indicator
9 — Air filter clogged indicator lamp 10— Flameout control indicator
11— Cooling Water temperature indicator 12— Sound cancel button
13— High speed traveling control button 14— Working Light control button
15— Screen switch button 16— Fuel level indicator
17— Excavator monitor 18— Fuel level warning indicator
19— Cooling water temperature warning indicator
Check operation control
When the start switch is on position 3 (refer to start switch), auto-check start, all the indicators
come on for about 2 seconds.
1 —Automatic idling indicator
This symbol light comes on when the system is in automatic idling. SWE17B-3 has no the
function of automatic idling
2 —Working Light indicator
