5. TRANSPORTATION AND STORAGE
5.1 General transportation rules
Before transporting the machine with trailer, obey the related local regulations of freeway
governing the length, width, height, and weight.
If any measurement exceeds the regulation of local freeway, you must apply for special
permission, or separate the machine to smaller parts for transportation purpose.
5.2 Transportation measurement

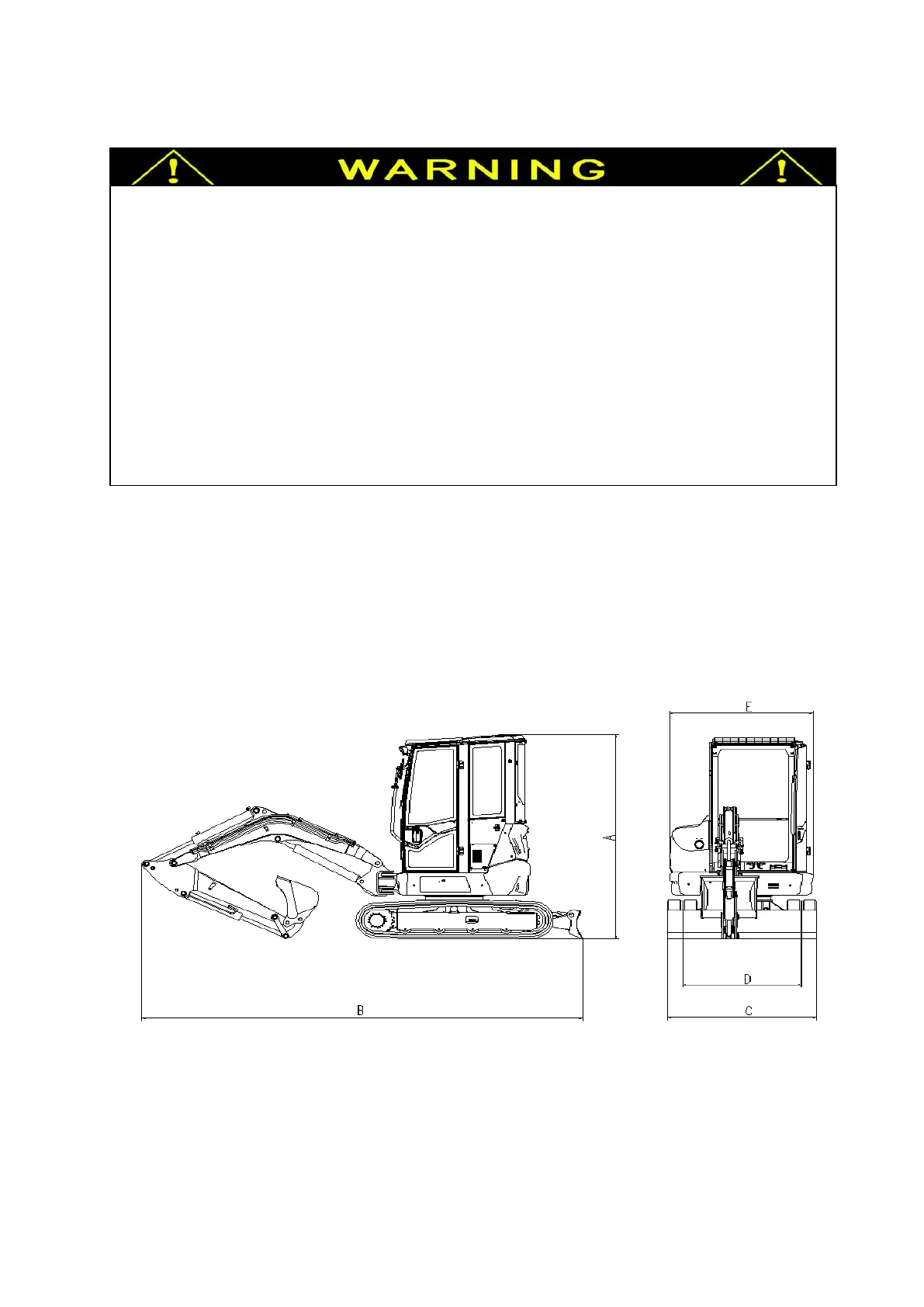

A. total height：2454mm C. chassis width：1500 mm
B. total length：4443 mm D. chassis width：（track frame extended）：1200 mm
E. superstructure width（cabin）：1444 mm
There is a possibility that the machine will roll, tip over, or fall while loading or
unloading it. Therefore, you need to take the following precautions:
⚫ Select a firm, level surface and keep sufficient distance from the roadside.
⚫ Use a loading ramp of adequate strength and size. Maintain the slope of loading ramps
within 15°.
⚫ Keep the truck bed and loading ramps free of oil, clay, ice, snow, and other materials,
which can become slippery.
⚫ Never change courses on the ramps.
⚫ Do not slew on the ramps. The machine may tip over.
⚫ If you must swing on the truck bed, do so slowly as the footing can be unstable.
⚫ Because the fulcrum on the trail is not stable, when swinging or rotating on a trail,
you need to do it very slow.
