When close the front window, hold the
handles tightly and lower the window
slowly so as not to break the glass or
hurt your head and hands.
2.12 OPEN AND CLOSE FRONT WINDOW
Front window of the cabin can easily be opened for maintenance and emergency leave. Open the
fastening of front window, push the glass window upwards and backwards to the scheduled
position, then the front window is fastened. Before closing the front window, firstly, loosen the
lock pin, grasp the 2 handles with your hands, lower the front window slowly to the bottom, then
lock the lock pin tightly.

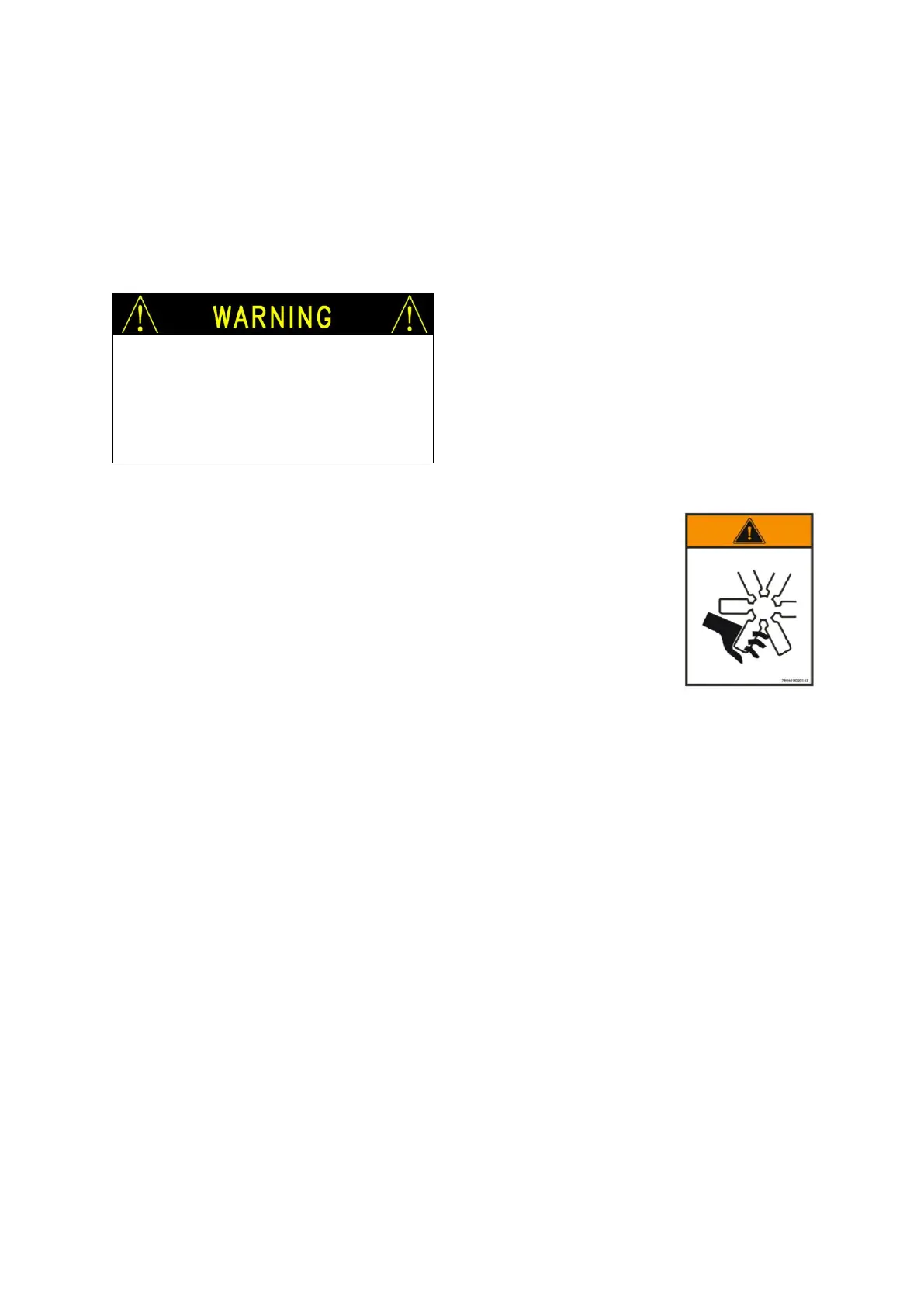

2.13 AIR DUCTING HOOD AND UPPER-COVER
Air ducting hood:
The engine should be equipped with air ducting hood to prevent foreign
materials from being reeled into fan which disturbs the normal work of
fan. On the other hand, the assembly of air ducting hood can prevent
accident caused by carelessly putting hand into the fan. It is equipped
with mounting plate on both left and right and is connected with the water
tank.
Upper-cover
The upper-cover can protect the hydraulic components, electric circuit in the interior of the
excavator and ensures the beautiful appearance. It is fixed on the platform and also protects
engine.
