If the control lever comes back to the neutral position while it is
traveling down the slope, the machine will automatically stop.
If the machine slides while traveling up on the slope, use the pulling
power of the boom to help the machine clime up the slope.
If engine stops accidentally while traveling down the slope, set the
control lever back to the neutral position to stop the machine, lower the
bucket to the ground to block the machine and then restart the machine.
3.5 EXCAVATION
Working condition
When dig lengthways with backhoe, make the drive wheel backward and guide wheel forward.
(as figure)
In order to guarantee safety in quarry working, make the drive wheel backward and guide wheel
forward.

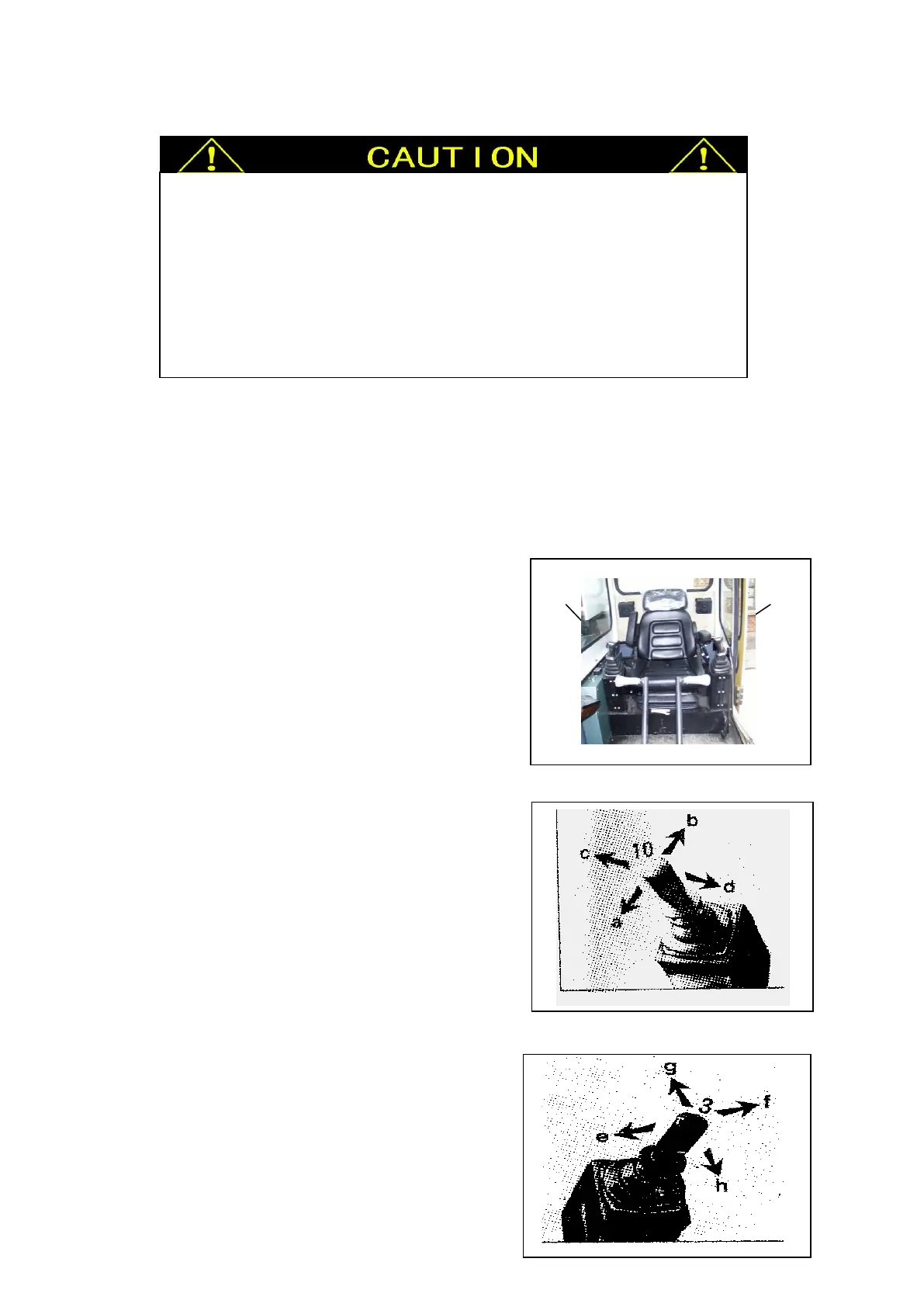

Pilot handles control
1 — Left pilot handle
2 — Right pilot handle
Control with right pilot handle
Right figure is the obverse view of right pilot handle
(when operator sits on the seat). The four movements
of handle can make the excavator move as follows.
a —— Raise boom
b —— Lower boom
c —— backhoe load, or bucket close
d —— backhoe dump, or bucket open
To Next Page
