31

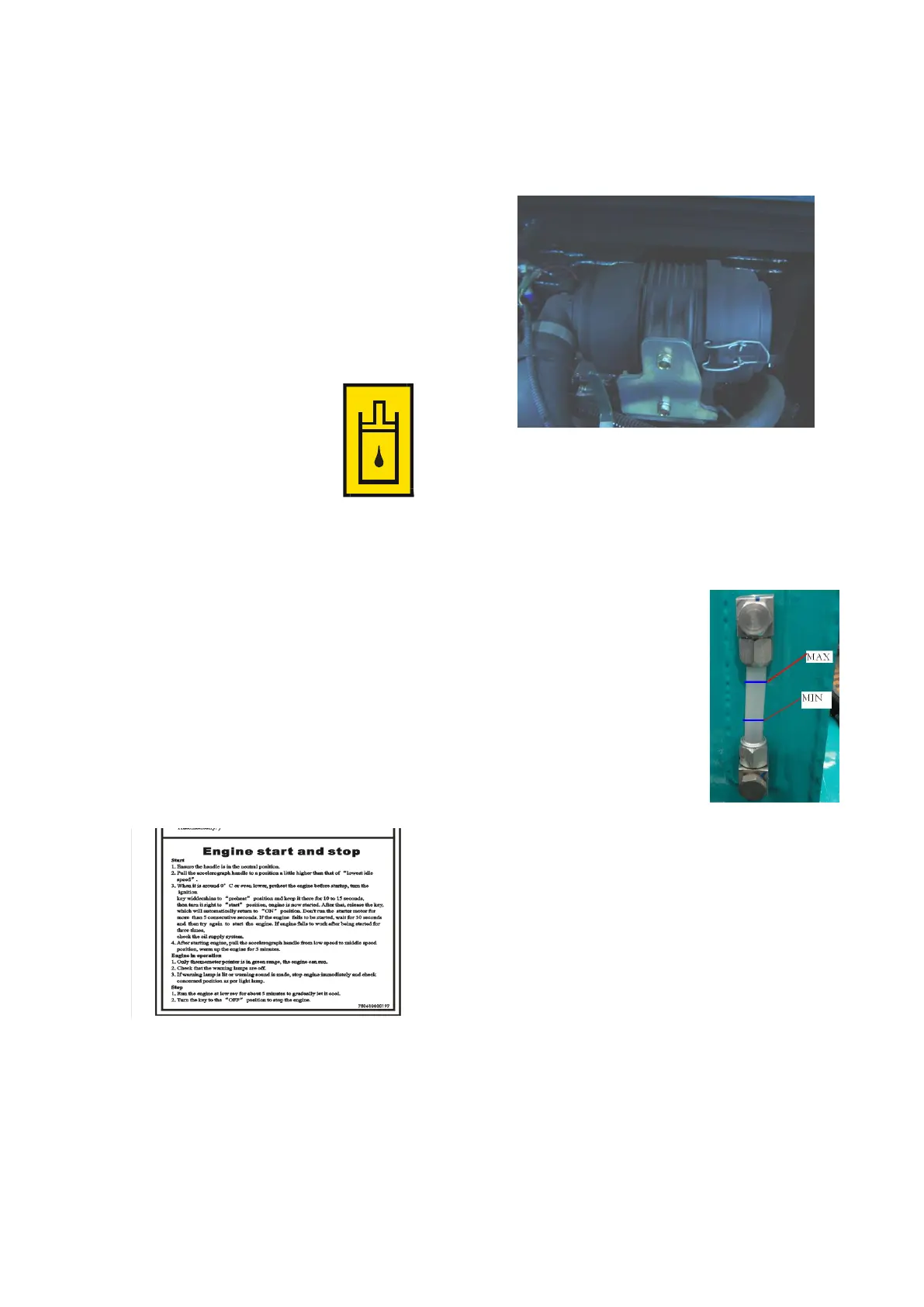

Air filter
When indicator light comes on, it means that you
should maintain or replace filter core.
Oil level in hydraulic oil tank
Hydraulic oil filling mark：
7506 10020201
Please pay attention to the followings when fill oil to hydraulic oil tank:
1) Place machine on a horizontal ground and retract all hydraulic cylinders, the oil level is not
allowed to exceed MAX mark.
2) Similarly, when all hydraulic cylinders extend, the oil level should be
above the MIN mark.
3) Choose the recommended oil according to the Lubricant List.
4) All filled hydraulic oil must pass through returning oil filter.
Engine staring and stopping mark：
Before starting engine
1) Keep pilot valve control lever locked and pilot handle & travel pole neutral. Operator sits on
seat.
FIG.3-3
FIG. 3-5
FIG. 3-4
