101
split exits, please change belt.
When adjusting new belt, after one hour‘s operation, please
adjust it again.

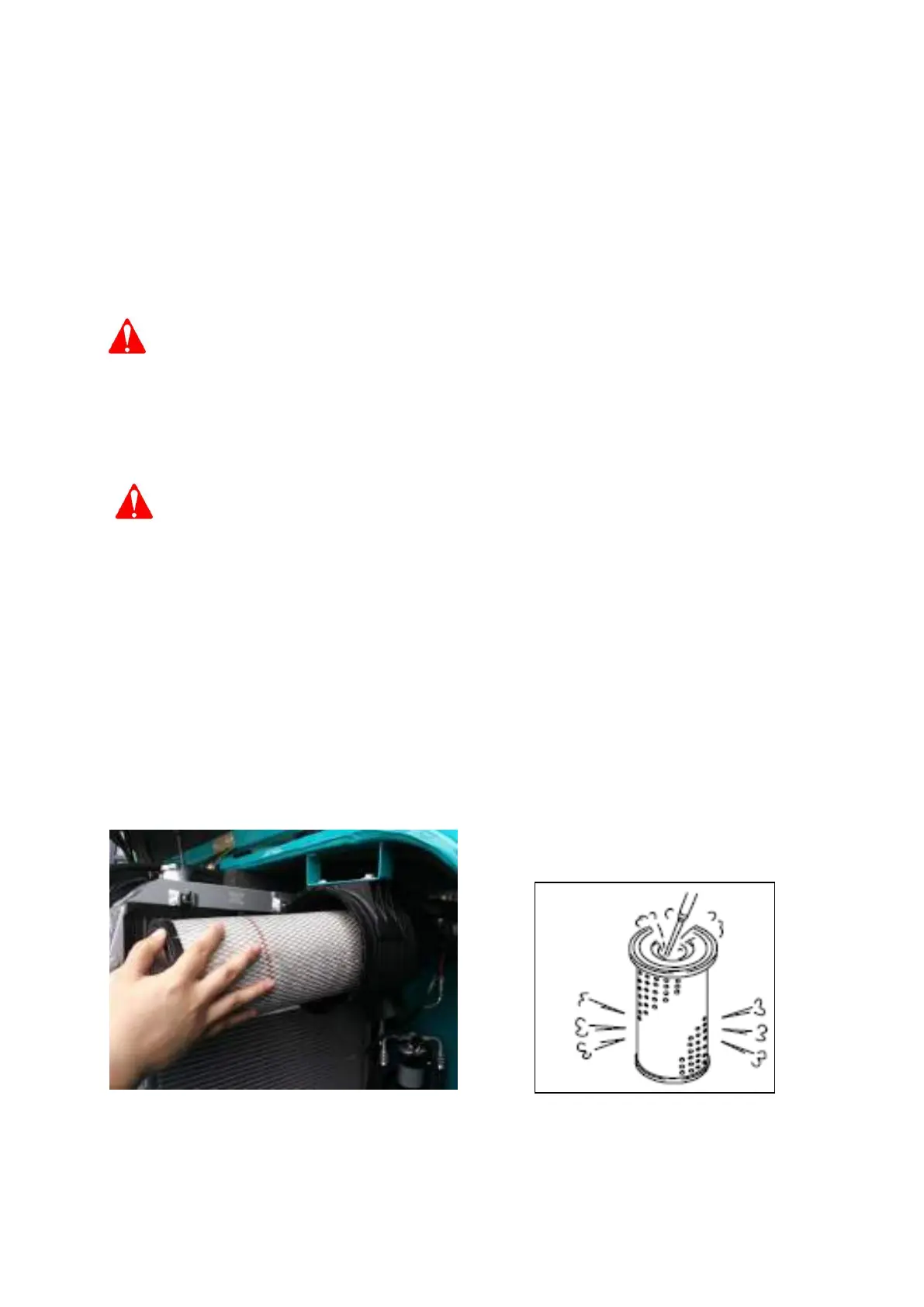

5.5.6.4 Clean air filter cartridge
Stop the machine at level ground, lower bucket to ground..
Shut auto-idle speed switch to run engine unloaded at low speed for 5 minutes.
【Important】
Stopping the engine improperly may damage turbocharger.
Set start key to OFF position, stop the engine, remove the key from starting lock, set safety lock lever to
LOCK position.
Loosen clamp buckle (2) to remove air filter front cover.
Remove outside filter (1), clap slightly by hand, never hit with hard object.
Note
Minimize pressure of compressed air (<0.2 MPa, 2kgf/cm
2
）, let go of personnel around to avoid
scattered broken pieces, wear personal protective articles including goggles and protective glassed.
Use compressed air to clean outside filter (1), following the wrinkle direction to blow air outward.
Clean up the inside filter.
Install outside filter (1), end cover, fasten clamp buckle (2).
Start engine; run it unloaded at low speed. Check filter clogging indicator on monitor. If this indicator
illuminates, shut engine immediately and replace outside filter (1).
Replace internal filter (3) the moment outside filter (3) is replaced.
5.5.6.5 Checking hose and piping leakage, interference wear-out.
For detail, please refer to chapter 5.5.1.6.
