SUNWARD SWE80B - Air Conditioner; Pilot Control Joystick

26
 After shut off air conditioner, it must be
5 or more minutes later to permit
starting air conditioner again.
 It had better use the air conditioner
when the engine operates.
needed numerical value. Do not adjust white pointers to the position which is less than 40 to more than 130.
(4) the level adjustment: upward move rod which is under the seat, the seat forward (back) to the proper
position, loosen the tie rod, the seat can be locked.
Caution
(1) Only adjust the seat when the driver is in safety condition
(2) For slider and recliner adjustment, please make sure the knob is in the proper position; only when
the adjustment mechanism parts are separate, then do the adjustment.After all the adjustments,
please make sure every knob stays in the proper position and every part is locked.

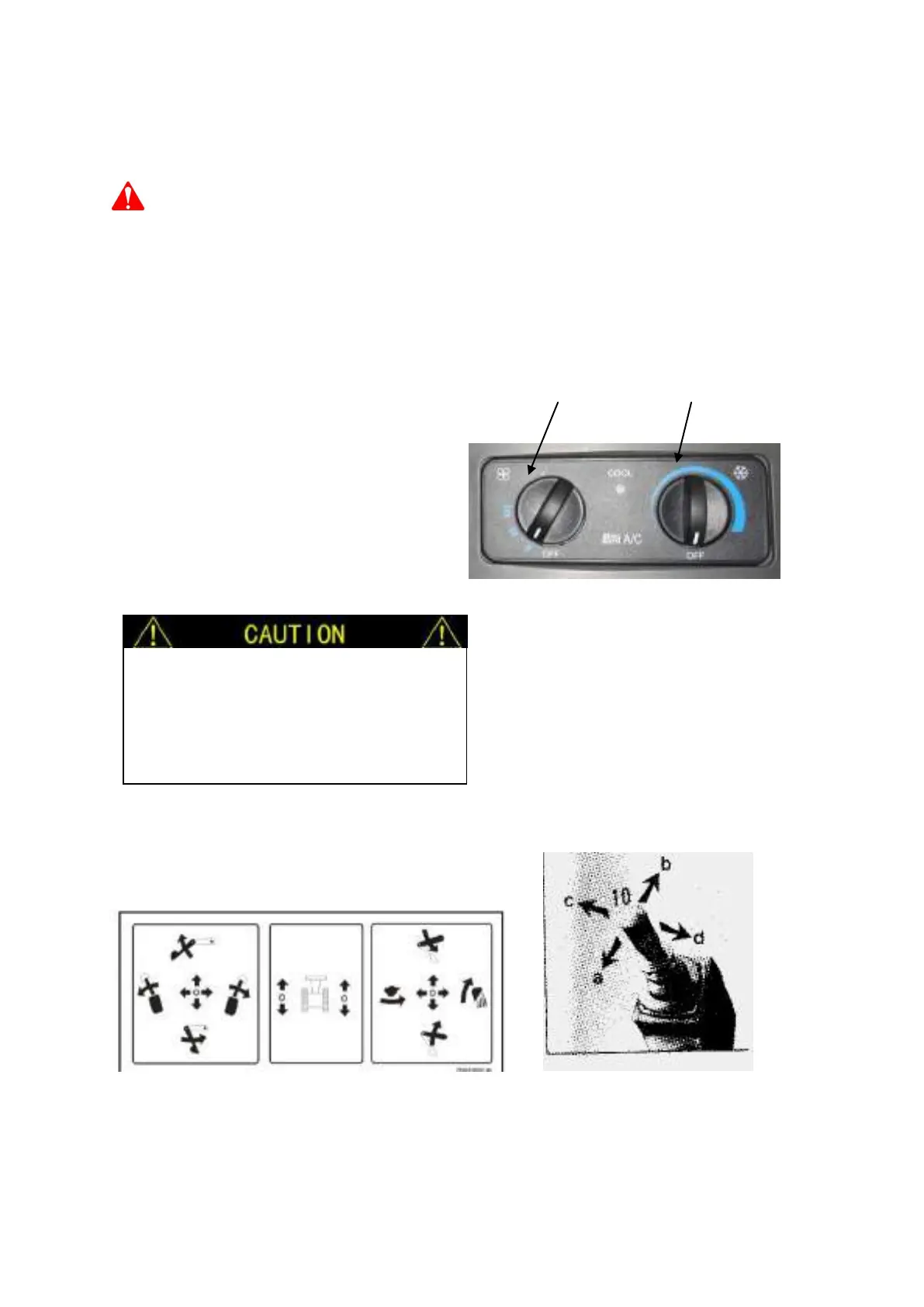

2.6 AIR CONDITIONER
Air conditioner (As figure 2.6), functions are as below:
Wind speed adjustment:
Screw knob A to adjust wind speed.
Temperature adjustment:
Screw knob B to adjust temperature.
2.7 PILOT CONTROL JOYSTICK
Operation marks (As figure 2.7.1)：
The machine equipped with left and right pilot control joystick.
The right pilot joystick controls following movements (As figure 2.7.2):
Figure 2.7.1
A
B
Figure 2.6
