37

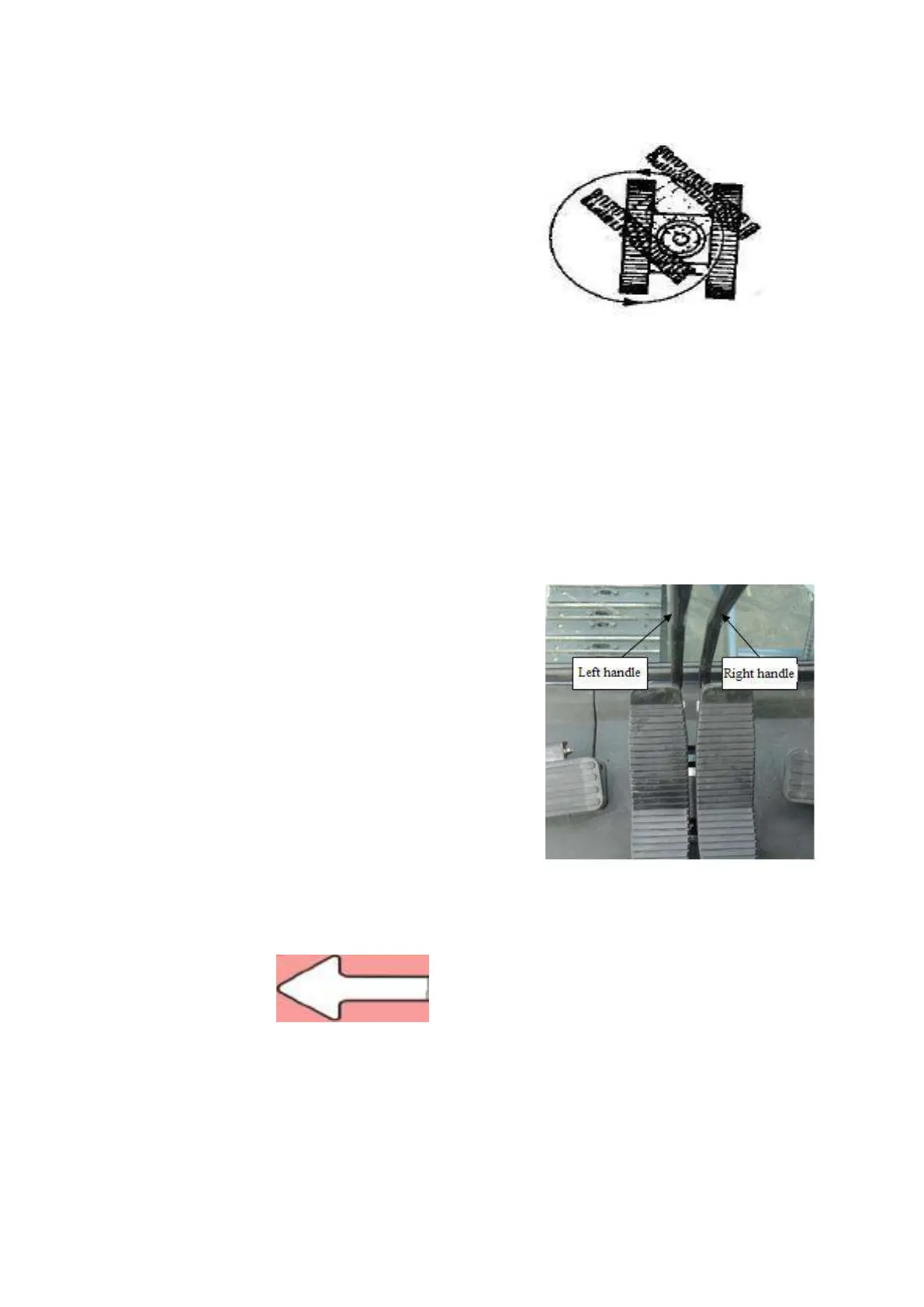

Turning with one side crawler (As figure 3.4.4)
Turn left: treadle right pedal 2 forward.
Turn right: treadle left pedal 1 forward.
In order to protect travel mechanism, it should avoid turning while backing.
Travel with handle control
If need the machine hairlike traveling, you can insert two attached handles to carry out hand control. This
method is safe and reliable and fit for loading and unloading the machine to trailer (As figure 3.4.5).
(1) Straight travel: Push 2 handles forward at the same time. (Figure. 3.4.5
(2) Straight back: Pull 2 handles backward at the same time. (Figure. 3.4.5)
(3) Turning in one point
Left turning (figure 3.4.2): Push right handle forward and pull left
handle backward.
Right turning (figure 3.4.3): Pull right handle backward and push
left handle forward.
(4) Turning with one side crawler(figure 3.4.4)
Left turning: push right handle forward.
Right turning: push left handle forward.
In order to protect travel mechanism, it should avoid turning while backing.
Travel direction label：
Travel speed
During the machine traveling, press high/low speed switch on control panel, it can achieve the shift of travel
motor high/low speed, then the machine can travel at high or low speed (As figure 3.4.6).
