Fuel System
The fuel system consists of a high performance fuel
pump and fuel regulators to provide two measured
and regulated engine fuel channels. The system
is rated up to 800 lbs/hr total delivery with both
channels used.
• Range per channel @ 7psi: 0–400 lb/hr (100
g/s) x 0.1 ± 0.5% fs
• Specic gravity range: 0.40–1.40
Fuel Canister
Designed to measure fuel consumption of fuel
injected engines.
• Mid ow unit available in 20 – 720 lb./hr.
• High ow unit available in 30 -1070 lb./hr.
• Available for gas or alcohol.
Electric Throttle Control
Electric throttle actuators provide engine throttle
automatic control by the Data Acquisition Control
System (DACS). They can also allow automated
testing while providing manual operator control.

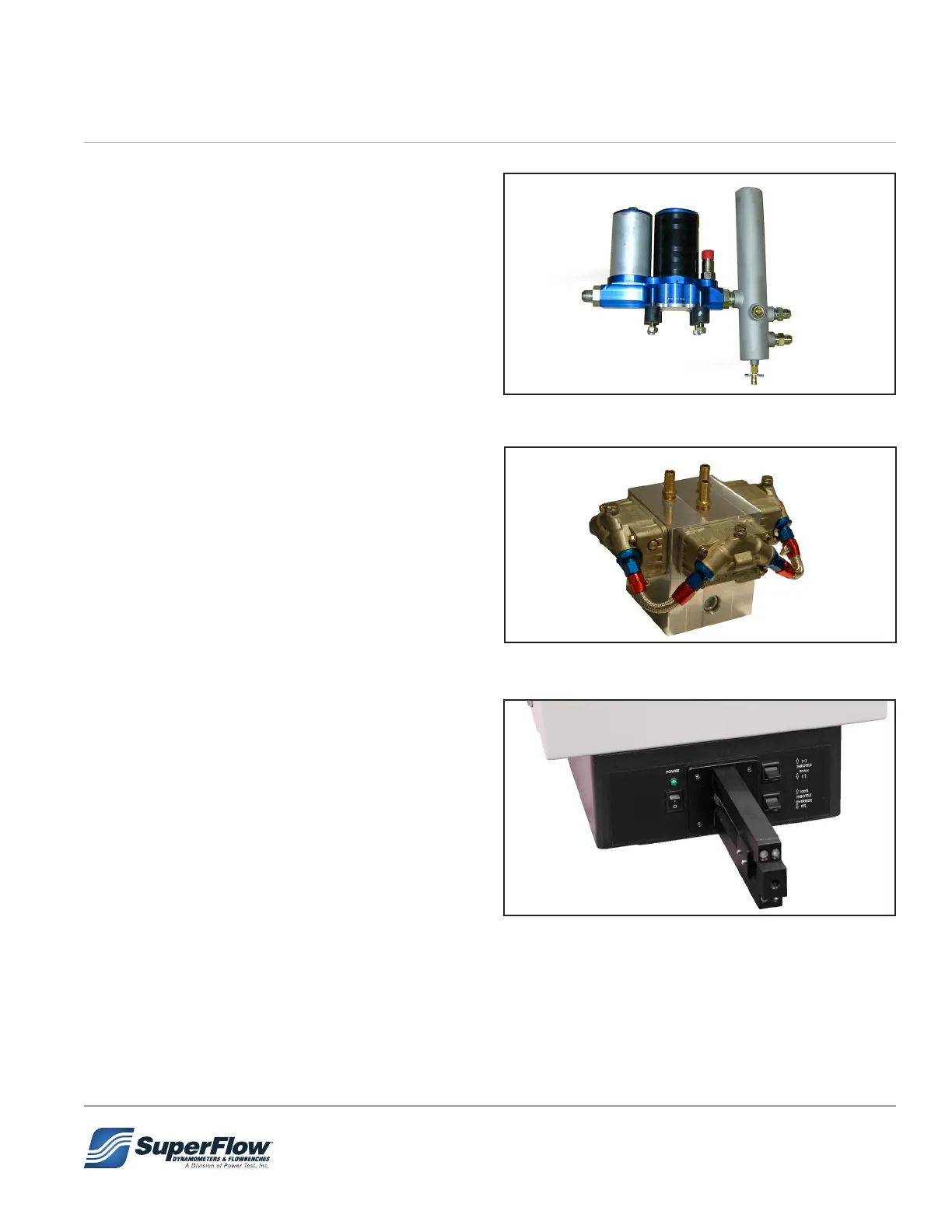

Figure 3.13: Fuel System
Figure 3.14: Fuel Canister
Figure 3.15: Throttle Control
