3.0 System Overview
Sensor Panel Modules
System Interconnect Panel (LEMO)
The system interconnect panel provides the
primary connection between the sensor box and
the peripheral devices (computer, relay box, etc.).
The panel also provides connections for some
sensor inputs.
• Color-coded and keyed LEMO connectors
• Brown - Remote handheld controller serial port
• Red - Air sensor frequency inputs
• Blue - Air temperature and humidity sensor
inputs
• Yellow - Auxiliary frequency input (Tach./Freq.)
• Green - Engine speed sensor input (May also
be used for frequency type devices)
• RJ-45 Category 5 (Cat-5) serial connectors
Sensor Interconnect Panel (AMP)
The sensor interconnect panel provides the primary
connections between the sensor box and the
dynamometer sensors.
• Absorber speed and torque sensor connections
(engine dynos)
• Dynamometer interface (chassis dynos)
• Servo valve connection (engine dynos)
• Electronic throttle connection
• Auxiliary voltage sensor inputs
• Fuel turbine frequency inputs
• Auxiliary control outputs
• Digital input and output connections
NOTE: SuperFlow recommends capping or covering any unused AMP connector.

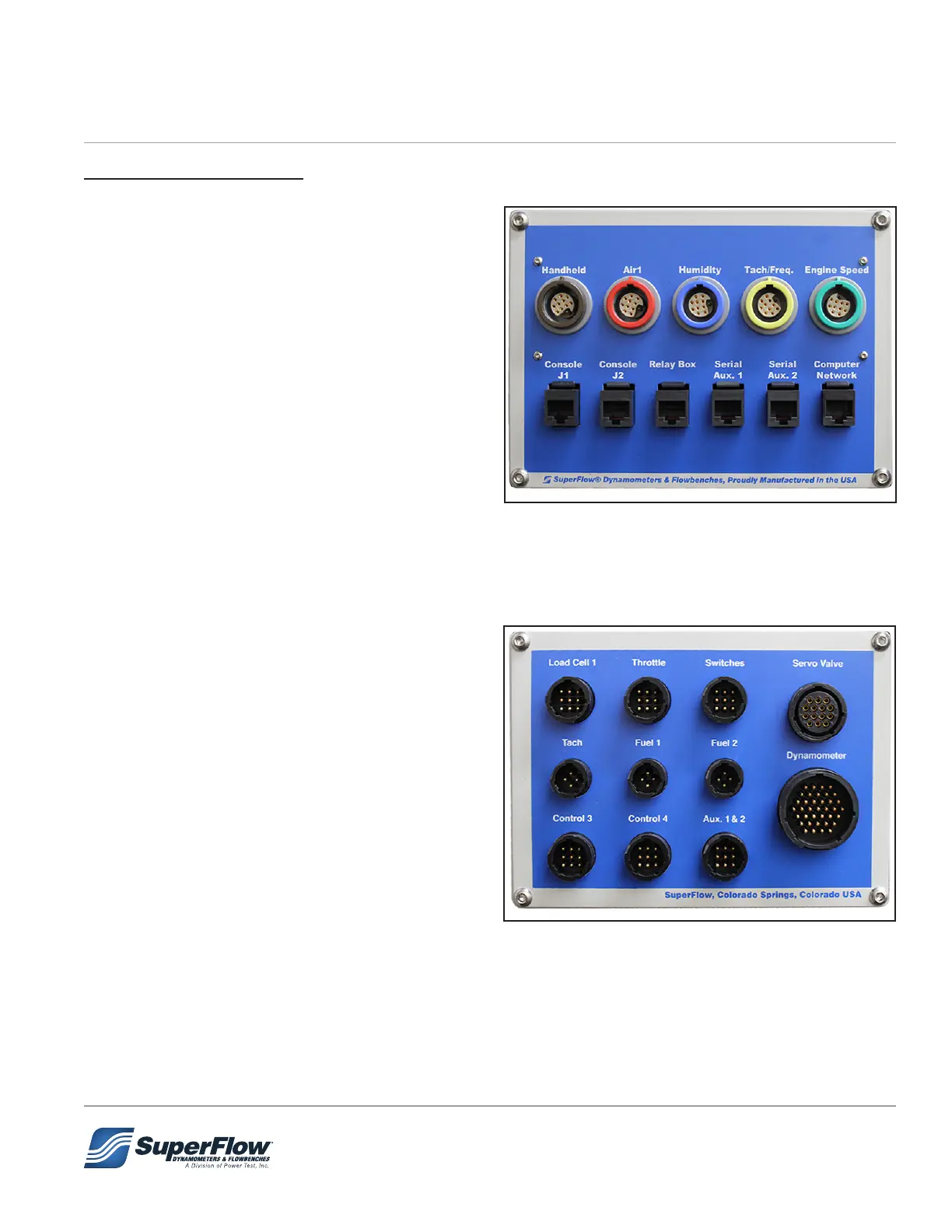

Figure 3.4: System Interconnect Panel
Figure 3.5: Sensor Interconnect Panel
