4.6 Sensor Box
Mount the sensor box on the absorber stand boom. The absorber stand mount makes the sensor
connections to the engine easy.
A power cord attaches to the bottom of the box.
Electrical power for the sensor box should come
from a dedicated, protected line. If desired, a long
power cord can be routed into the control room
and plugged into the same outlet (UPS or surge
suppressor) as the console and computer. Refer to
"Electrical Requirements" on page 12.

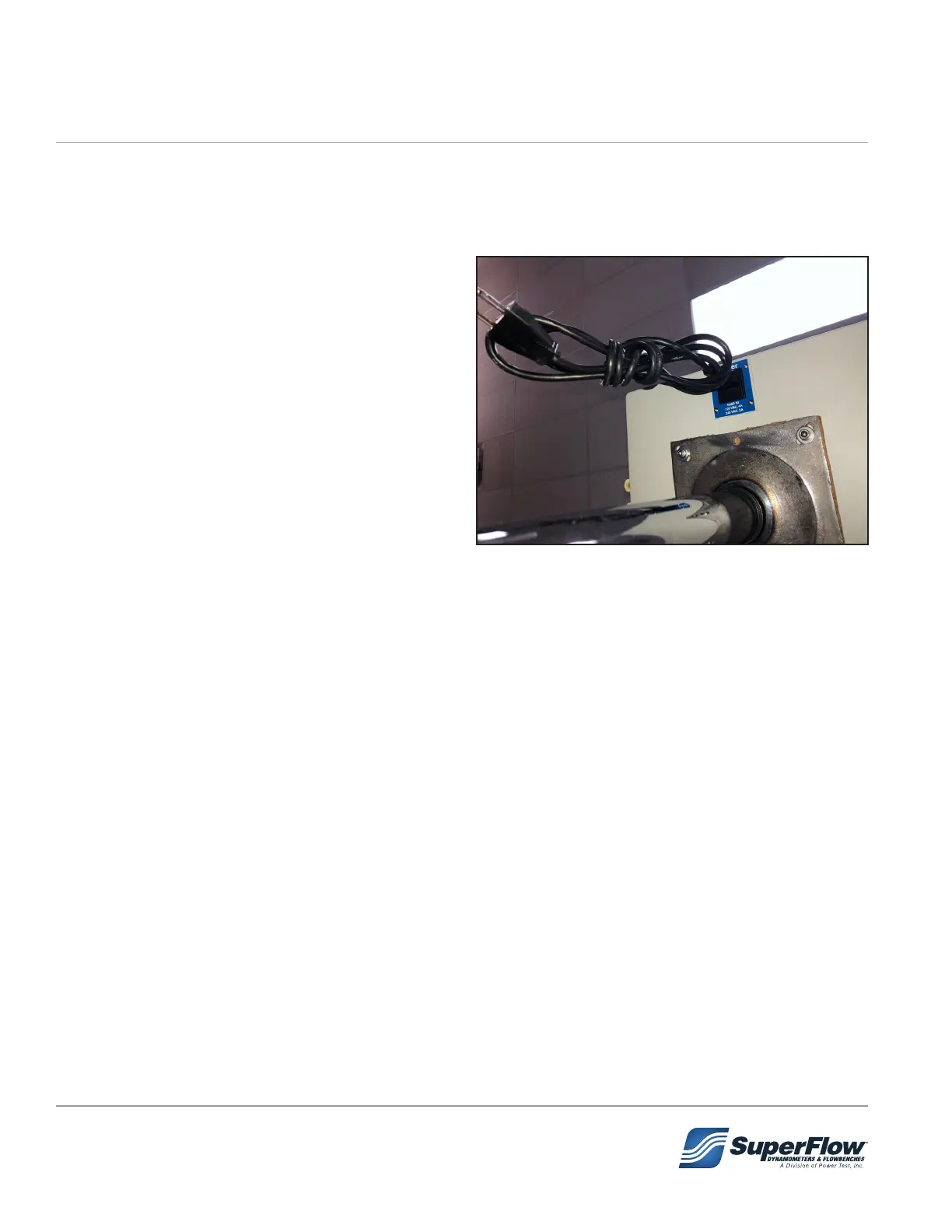

Figure 4.5 Sensor Box Power Cord Connection
4.0 Installation
