SuperFlow SF- 902S - System Interconnect Panel

32
System Interconnect Panel
The system interconnect panel has connections for several di󰀨erent types of sensors and features plus
provides the connections to the console and the computer (Figure 4.8).

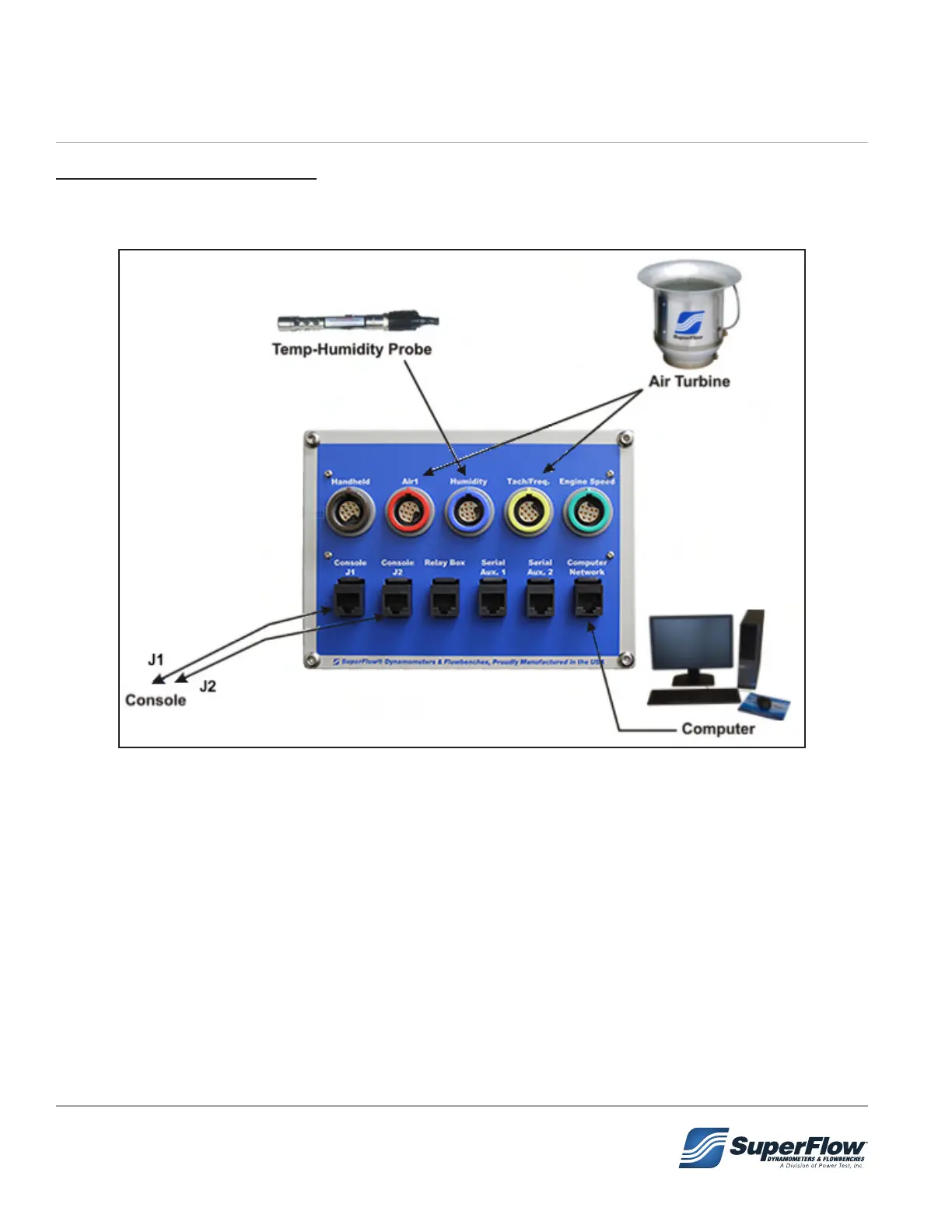

Figure 4.8 System Interconnect Panel
Air 1
SuperFlow airow measurement turbines are connected to the sensor box system interconnect panel. Use
cable 1200A-2044 to connect to the red receptacle labeled Air 1. Calibration tables for each ow turbine
are entered in the conguration le. Other TTL or MAG frequency devices can be connected here as well
but require modication to the denition of channel 7.
Humidity
The humidity and air temperature probe plugs into the blue receptacle on the sensor box system
interconnect panel labeled Humidity. The humidity sensor is sensitive to contamination, so place it in a
fresh air stream for the engine intake system and away from potential engine oil, gasoline, and exhaust
spray. It is also sensitive to sunlight, so keep it out of direct sunlight.
4.0 Installation
