Throttle
If you have the optional electronic actuator, the throttle connector on the sensor interconnect panel
connects to an SF-1805 electric throttle controller or other device using a 0–10VDC control signal.
4.10 Expansion Panels
Pressure Connections
Connect the hose to the appropriate pressure
source. SuperFlow recommends using reinforced
rubber. Stainless steel hoses can be used but
have the potential to conduct Radio Frequency
Interference (RFI) noise. If used isolate them
from the sensor box with short rubber hoses.
The standard system comes with #4 AN ttings
for channel 63 - Man_P, Channel 67 - Oil_P, and
Channel 68 - Dyno WtP.

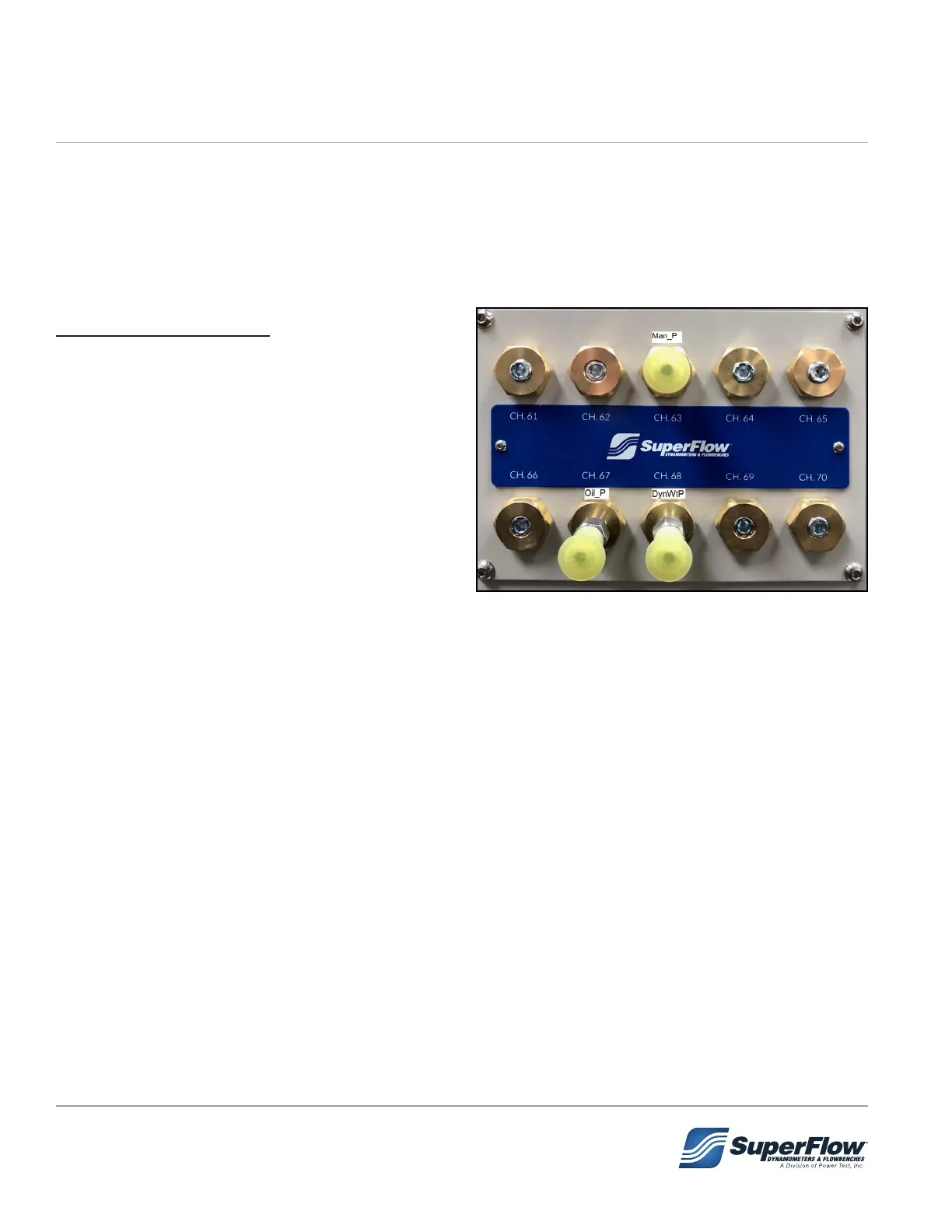

Figure 4.11 Pressures
