SuperFlow SF- 902S - Plumbing Diagram

23
4.0 Installation
4.2 Plumbing Diagram
VFD
M
DYNAMOMETER WATER INLET
*ADJUST PRESSURE BY
INCREASING/DECREASING PUMP RPM.
POWERMARK
RETURN SIDE - 4" BLACK ABS PLASTIC (FROM DYNAMOMETER TO RETURN TANK) *MUST SLOPE DOWNWARDS TOWARDS TANK ** 10 ft MAX (FROM DYNO TO RETURN TANK) ***NO BACK PRESSURE.
1200A-7172-BW MIN 34 GAL RETURN TANK IN GROUND
2" SCHEDULE 80 PVC OR GALVANIZED
COOLING TOWER DRAIN 1" HOSE
PRESSURE SIDE (FROM ACCUMULATOR TO DYNAMOMETER) EITHER 1-1/2" OR 2" HIGH PRESSURE FLEXIBLE HOSE
2X 45° RECOMMENDED TO REDUCE PRESSURE DROP ON SUPPLY LINE
BALL VALVE REQUIRED
BETWEEN PUMP AND DYNO
ACCESIBLE IN ROOM
10 GAL PRESSURE
ACCUMULATOR TANK
RECOMMENDED 10 ft
MAX FROM
SUPPLY PUMP
*CUSTOMER
FURNISHED
PROVISIONS FOR
COOLING TOWER
TAP 1/2" HOSE INTO HIGHEST POINT
IN WATER SYSTEM AS AIR BLEED.
RUN TO SUPPLY TANK BENEATH
WATER LEVEL
RETURN SIDE (FROM RETURN TANK TO MAIN TANK)
EITHER 1 1/2" OR 2" SCHEDULE 80 PVC OR GALVANIZED
SUPPLY SIDE PLUMBING 2-1/2" SCHD 80 PVC 30 ft MAX EFFECTIVE LENGTH *IF LONGER THAN 30 ft, SIZE ACCORDINGLY TO ALLOW NECESSARY INLET PRESSURE AT FULL FLOW*
230 VAC:
DT 1640-01
480 VAC:
3820P-48015A
3820P-SP150AI 3HP SELF-PRIMING PUMP W/ INTERNAL CHECK VALVE MAX HEAD 97 FT 100 GPM @ 60 ft-HD 150 GPM @ MAX FLOW 230/460 VAC 3PH 1-1/2" SUCTION/DISCHARGE 2' MAX FROM RETURN TANK *CONSTANT RUN, NO FLOAT SWITCHES
OVERFLOW TO DRAIN
FOR WATER TEMPERING
SUCTION SIDE (FROM TANK TO PUMP) 2" OR 3" SCHEDULE 80 PVC - SHUTOFF VALVE RECOMMENDED IN CASE OF NEED FOR SERVICING
3820P-C15GM 10 HP SUPPLY PUMP 170 GPM @ 170 ft-HD 100 GPM @ 200 ft-HD 208-230/460 VAC 3PH 26-24.8/12.4 AMPS 2" SUCTION 1-1/2" DISCHARGE
SUPPLY WATER TANK
3000 GALLON
COOLING
*OPTIONAL
COOL SUPPLY WATER FOR TANK WATER TEMPERING *OPTIONAL
NOTES:
1. DENOTES CUSTOMER SUPPLIED EQUIPMENT
REQUIRES A SEAL FEED LINE AND REGUALATOR SET TO 25-30 psig.

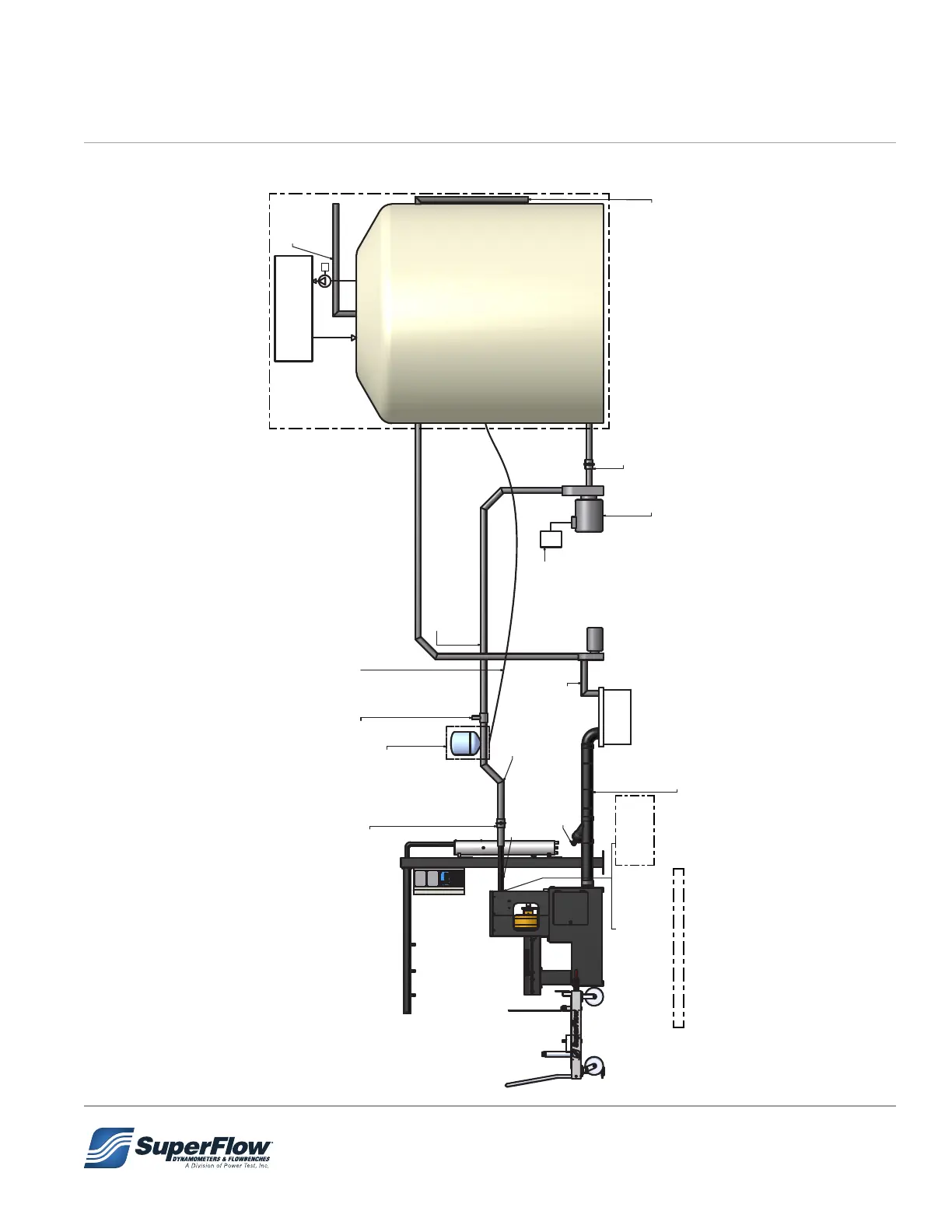

Figure 4.2 Plumbing Diagram
NOTE: Typical plumbing diagram, SF-Powermark is shown in this example.
