3.0 System Overview
Thermocouple Input Panel
The thermocouple panel provides 16 channels for
temperature measurements on the test device.
• 16 channels per panel
• Type K, (grounded or ungrounded)
• Type K thermocouple range, -454° to 2,300°F
(–270° to 1260°C), linearized
• Universal panel jacks accept both standard and
miniature connectors
Pressure Input Panel
The pressure panel provides up to 10 channels
of pressure measurements on the test device.
The standard system ships with three channels
installed. These are:
• Channels 63, 67 & 68: 0–150 psi [0–1034 kPa]
63 = Man_P
67 = Oil_P
68 = DynWTP

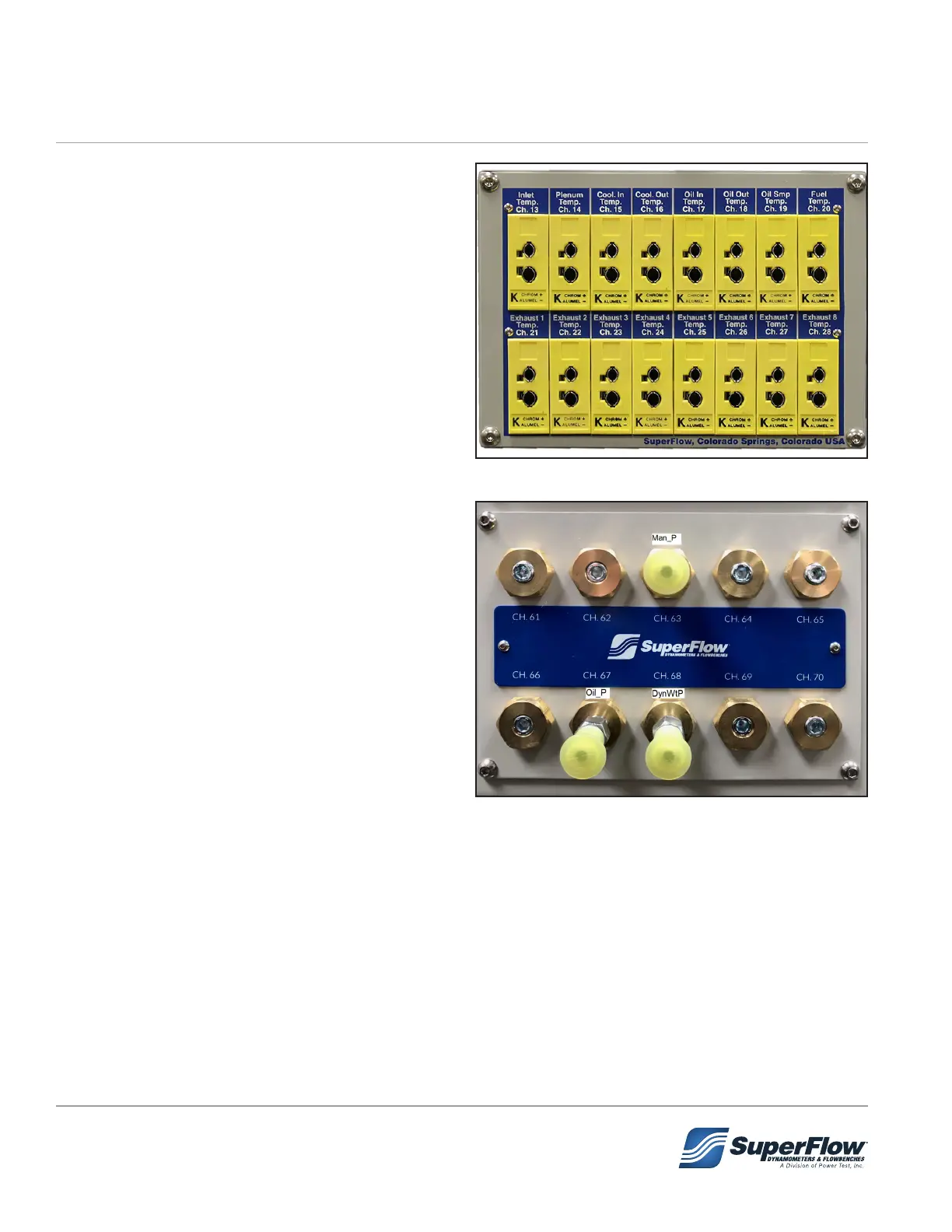

Figure 3.6: Thermocouple Input Panel
Figure 3.7: Pressure Input Panel
