Chapter 3: Maintenance and Component Installation
Installing a Storage Drive into a 5.25" Tray
One 3.5" drive, or two 2.5" drives with an optional bracket (pn MCP-220-00044-0N) can be
installed. An optional expansion card and cables are also required.
1. Remove the tray from the drive bay.
2. For a 3.5" drive, place the drive in the drive tray, and secure the drive to the tray with four
screws from the bottom.
For one or two 2.5" drives, install the drives into the special purpose bracket, then secure
the bracket to drive tray with screws through the bottom of the tray.

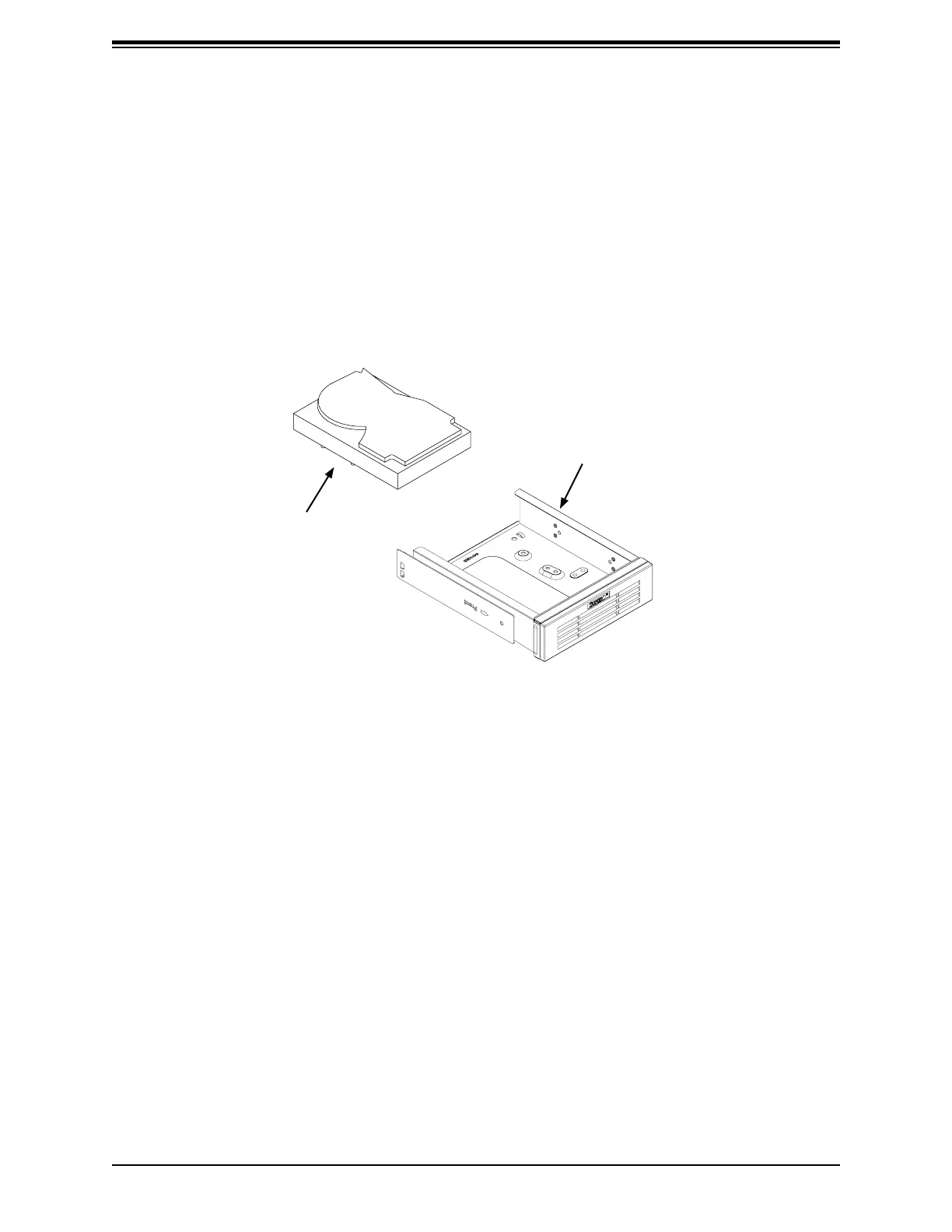

Figure 3-8. Installing a 3.5" Drive to the Drive Tray
Drive
Drive Tray
3. Slide the drive tray into the chassis until the tray clicks into place.
4. Connect the data and power cables for the new drive.
5. Replace the chassis cover and power up the system.
