Supermicro CSE-743TQ-903B-SQ User Manual

Appendix D: BPN-SAS3-743A Backplane Specications
71
D-3 Rear Connectors, Jumpers, and Indicators
Rear Connector Locations
The following connectors are on the side of the backplane that faces the rear of the chassis.
They are identied by silkscreen labels.

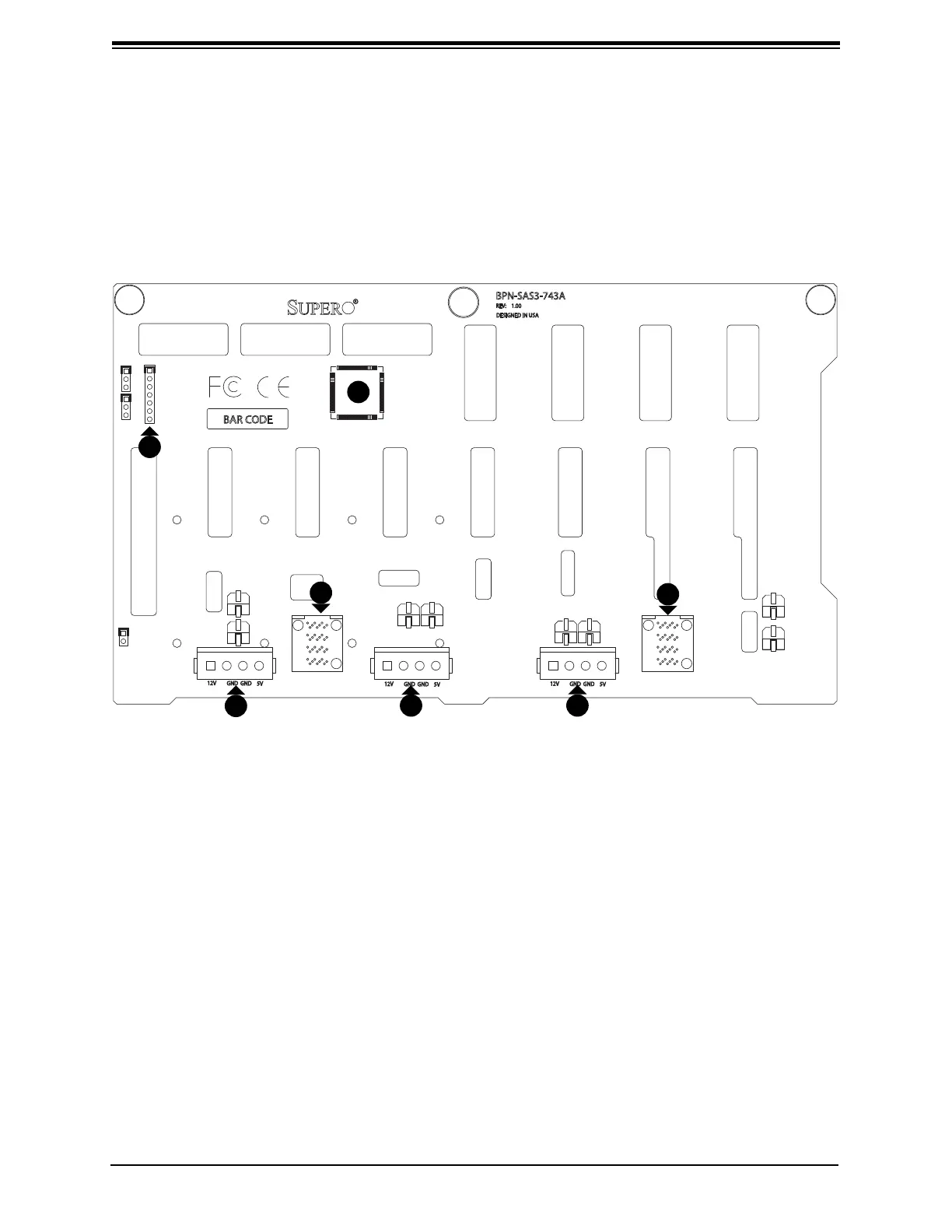

Figure D-1. Rear Connectors
1. Chip: CPLD
2. JTAG Connector: J16
3. SAS3 Port #1: JSM1
4. SAS3 Port #0: JSM0
5. Power Connector (4-pin) #3: JPW3
6. Power Connector (4-pin) #2: JPW2
7. Power Connector (4-pin) #1: JPW1
3
1
2
4
5
6 7
