Installing the Rear 2.5" Hard Drive Cage (SC826B Only)
The SC826B model chassis supports an optional hard drive cage for two additional
2.5" hot-swappable hard drives. The hard drive cage installs in the rear of the
chassis next to the power supply. Once the hard drive cage has been installed, the
2.5" hard drives may be removed without powering down the server.
Installing the 2.5" Rear Hard Drive Cage
1. Power down as described in section 4-1, lay the chassis on a at, stable surface
and remove the chassis cover.
2. Orient the 2.5" rear hard drive cage as shown, aligning the opening at the end
of the cage with the opening at the back of the chassis.
3. Place the hard drive cage into the chassis.
4. Secure the front of the hard drive cage to the chassis by fastening one screw
inside the opening of the hard drive cage as illustrated.

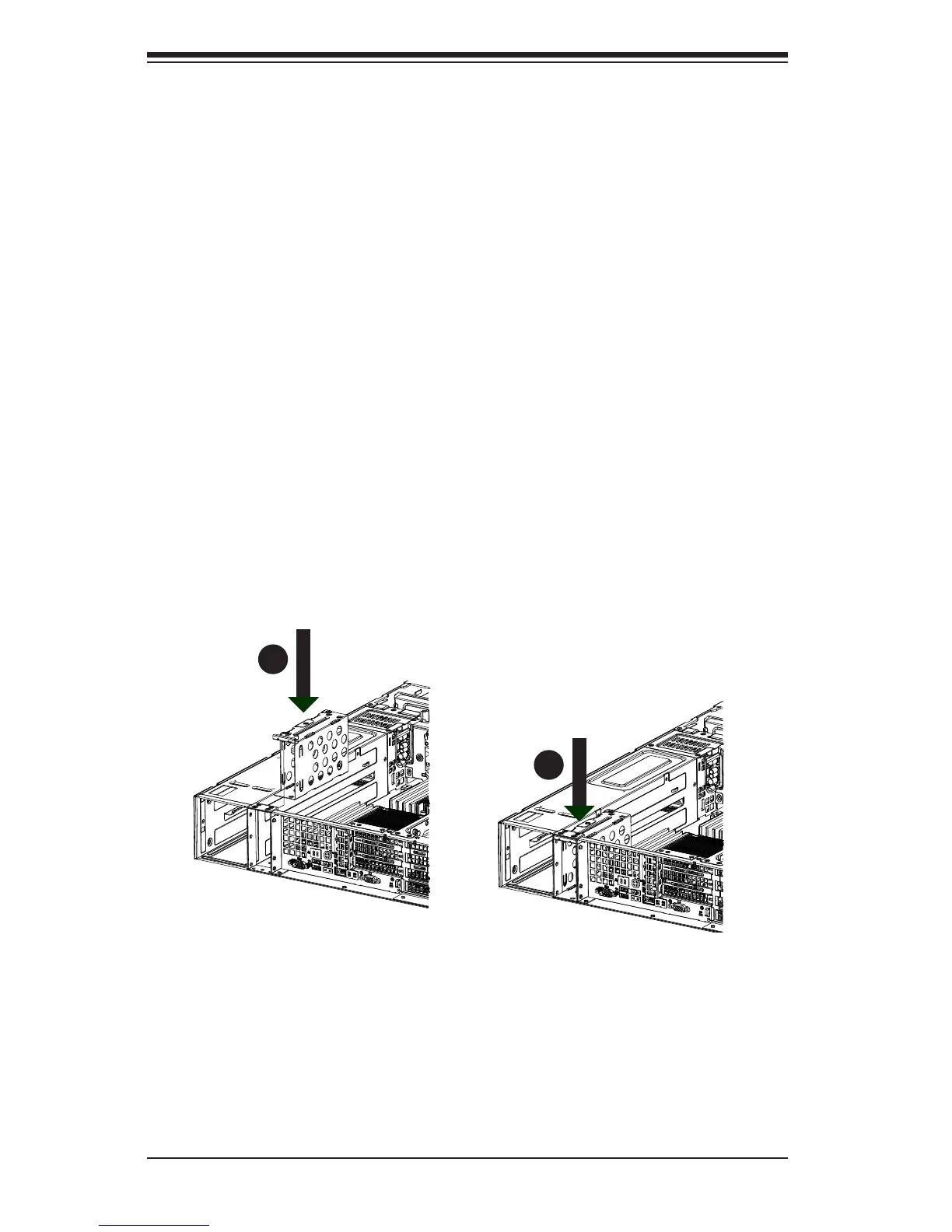

Figure 4-6. Installing the Rear 2.5" Hard Drive Cage
3
2
