2-14
X8DTU/X8DTU-F User's Manual
X8DTU/-F
Rev. 2.01
2-6 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specication. See
the picture below for the colors and locations of the various I/O ports.

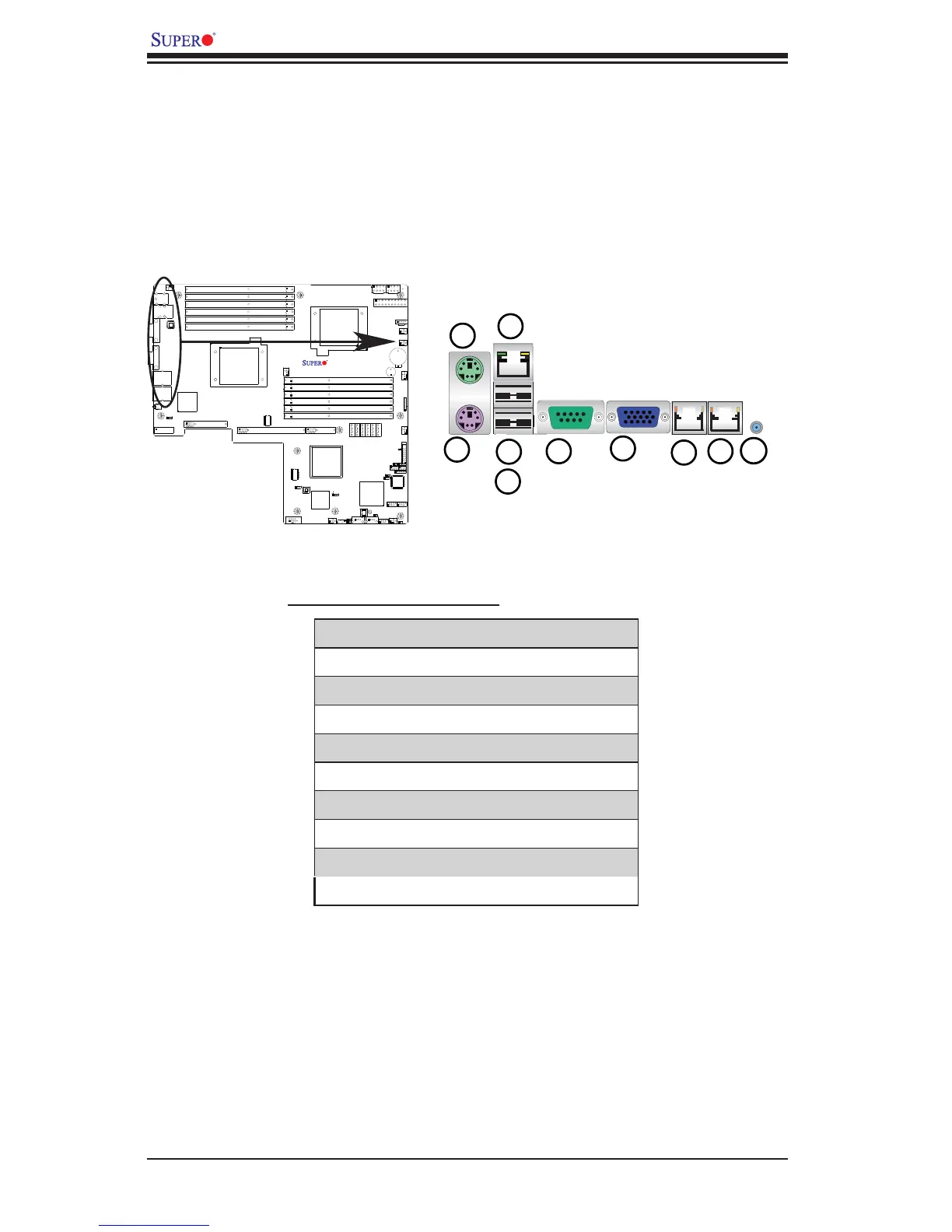

Back Panel Connectors/IO Ports
BackPanelI/OPortLocationsandDenitions
1
2
3
4
5
6
7
8
9
10
Back Panel Connectors
1. Keyboard (Purple)
2. PS/2 Mouse (Green)
3. Back Panel USB Port 0
4. Back Panel USB Port 1
5. IPMI_Dedicated LAN (X8DTU-F)
6. COM Port 1 (Turquoise)
7. VGA (Blue)
8. Gigabit LAN 1
9. Gigabit LAN 2
10. UID Switch
(See Section 2-5 for details.)
