Chapter 2: Installation

2-19

X8DTU/-F

Rev. 2.01

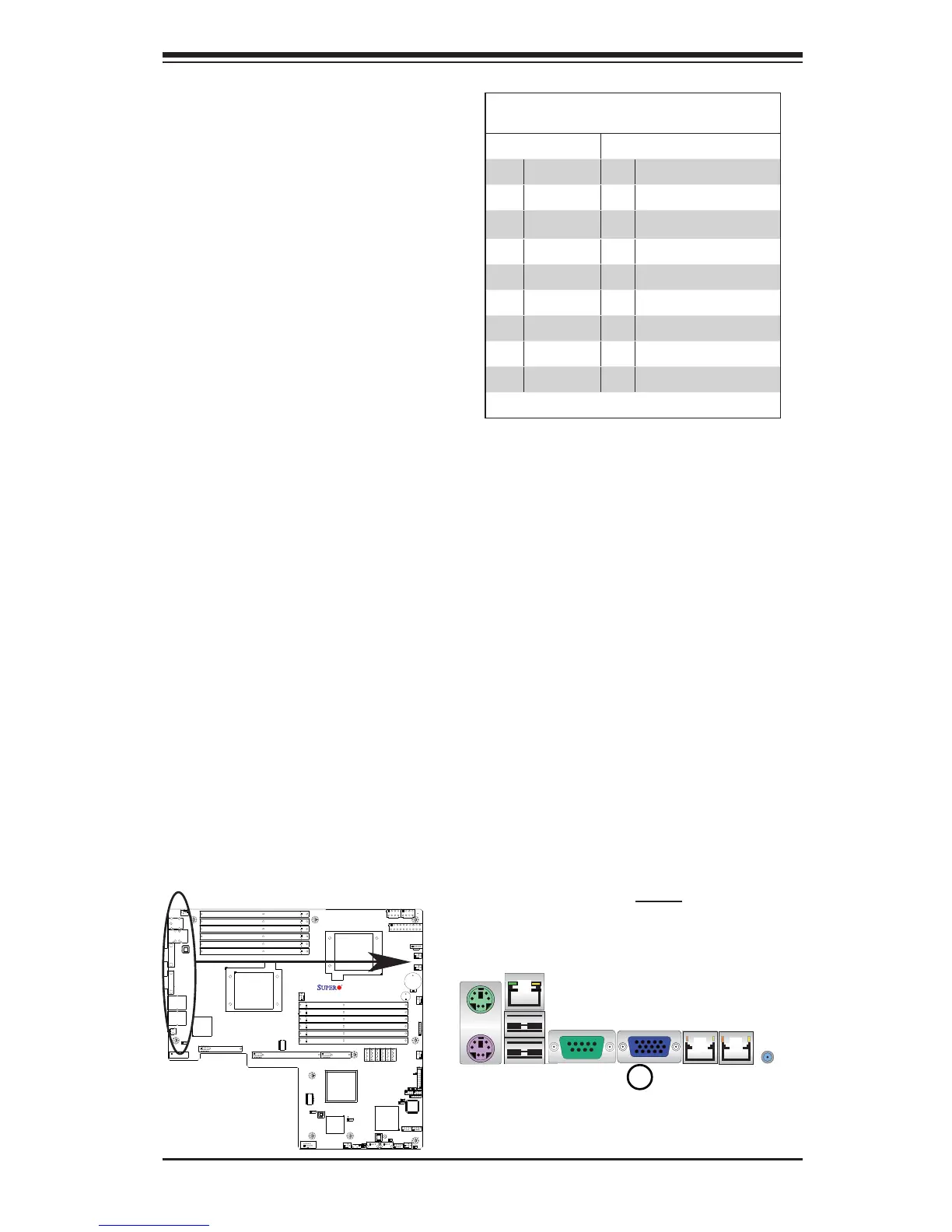

VGA Connector

A VGA connector is located next to

COM Port1 on the IO backplane. This

connector provides video and CRT

display. Refer to the board layout

below for the location.

VGA/CRT Pin

Denitions

Pin# Denition Pin# Denition

1 Red 10 Ground

2 Green 11 MS0

3 Blue 12 MS1: SDA (DDC Data)

4 MS2 13 HSYNC

5 Ground 14 VSYSNC

6 Ground 15 MS3: SCL (DDC CLK)

7 Ground 16 Case

8 Ground 17 Case

9 NC

NC= No Connection

1. VGA

Supermicro Supero X8DTU-F User Manual
