Chapter 2: Installation

2-15

X8DTU/-F

Rev. 2.01

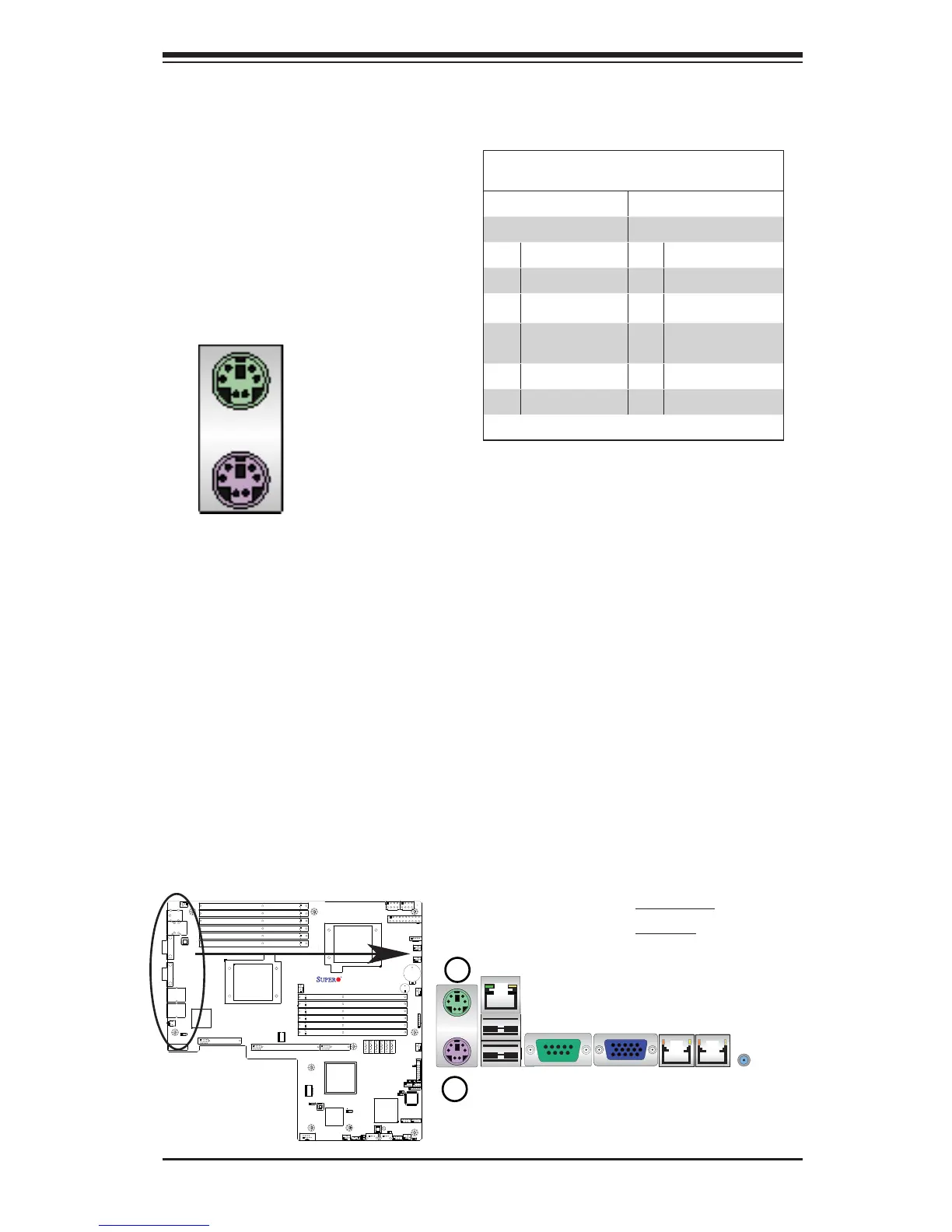

ATX PS/2 Keyboard and PS/2

Mouse Ports

The ATX PS/2 keyboard and PS/2

are located next to the Backpanel

USB ports 0/1 on the motherboard.

See the table at right for pin deni-

tions.

PS/2 Keyboard/Mouse Pin

Denitions

PS2 Keyboard PS2 Mouse

Pin# Denition Pin# Denition

1 KB Data 1 Mouse Data

2 No Connection 2 No Connection

3 Ground 3 Ground

4 Mouse/KB VCC

(+5V)

4 Mouse/KB VCC

(+5V)

5 KB Clock 5 Mouse Clock

6 No Connection 6 No Connection

VCC: with 1.5A PTC (current limit)

BackPanelIO&USBPinDenitions

1. Keyboard

2. Mouse

Supermicro Supero X8DTU-F User Manual
