Chapter 2: Installation
2-21
Power Button
1
NIC1 (Link) LED
Reset Button
2
HDD LED
FP PWR LED
Reset
PWR
3.3V
ID_UID/3.3V SB
Ground
Ground
1920
3.3 V
Key
Ground
NMI
PWR Fail LED
NIC2 (Link) LED
Blue+(OH/Fan Fail/PWR
Fail/Blue_UID LED
Red+(Blue LED_
Cathode_UID)
NIC1 (Activity) LED
NIC2 (Activity) LED
Key
X8DTU/-F
Rev. 2.01

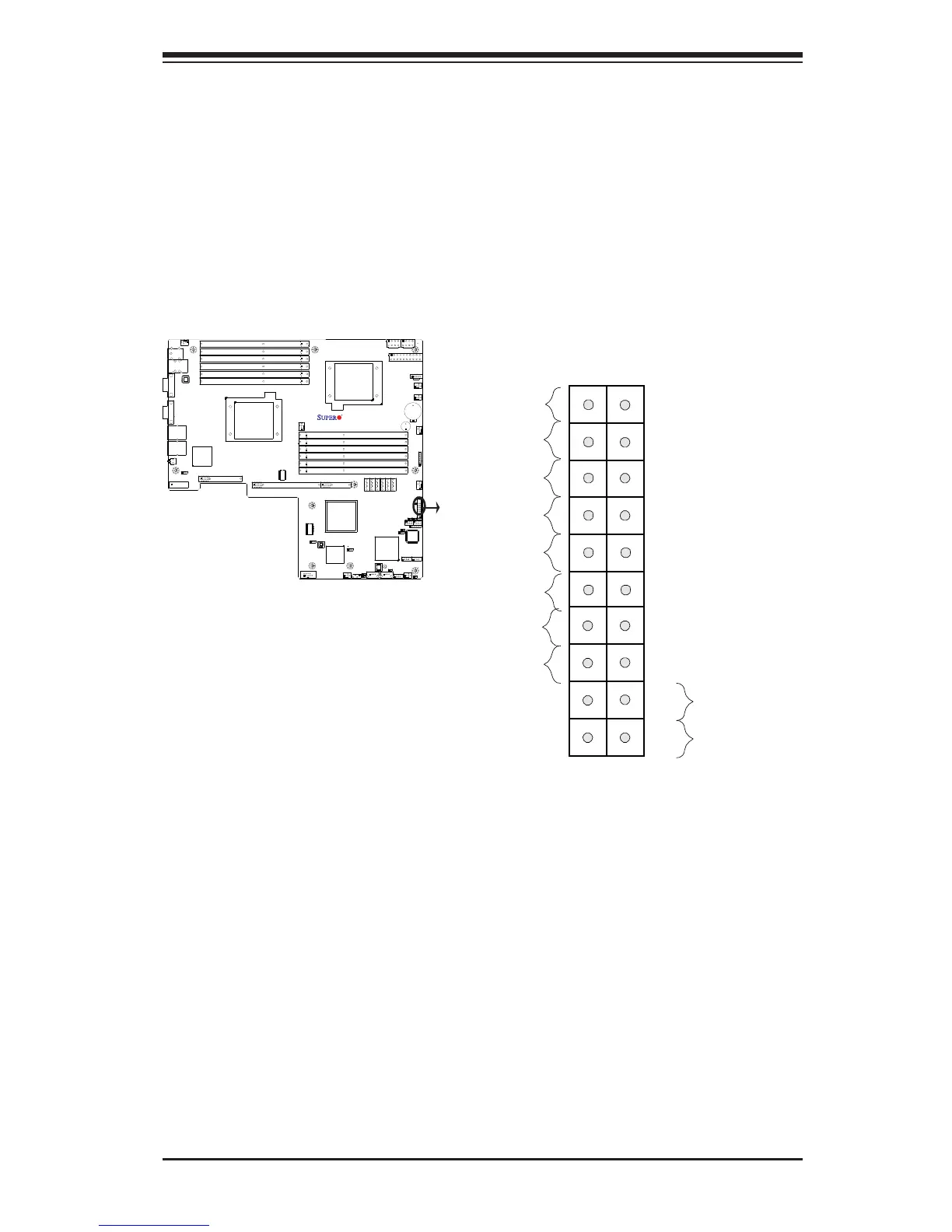

Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally lo-
cated on a control panel at the front of the chassis. These connectors are designed
specically for use with Supermicro server chassis. See the gure below for the
descriptions of the various control panel buttons and LED indicators. Refer to the
following section for descriptions and pin denitions.
JF1 Header Pins
