Super X11DPG-QT User's Manual
168
4.7 Boot

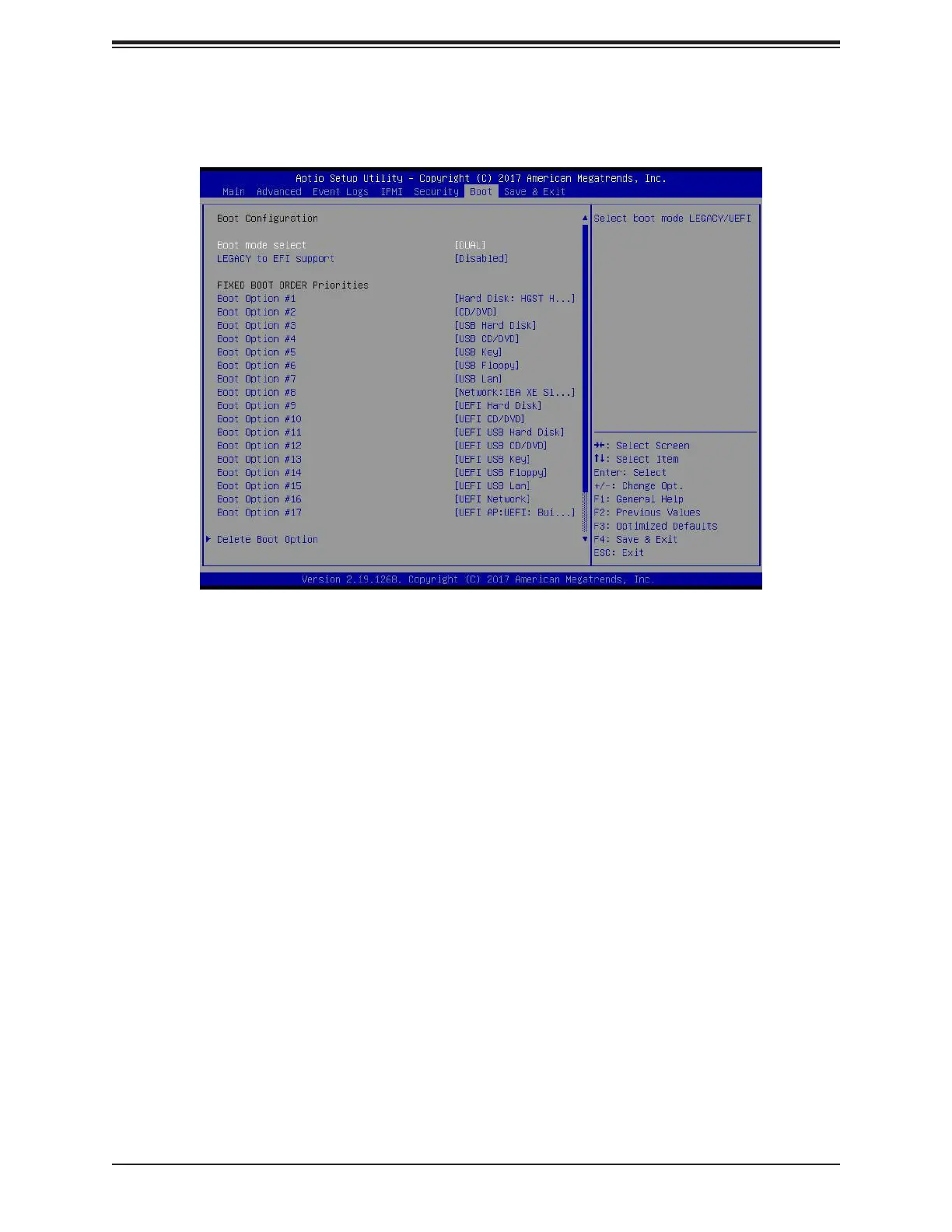

Use this feature to congure Boot Settings:
Boot mode select
Use this feature to select the type of device that the system is going to boot from. The options
are LEGACY, UEFI, and DUAL. The default setting is DUAL.
LEGACY to EFI support
Use this feature to enable the EFI boot support. The options are Disabled and Enabled.
FIXED BOOT ORDER Priorities
This feature prioritizes the order of bootable devices that the system to boot from. Press
<Enter> on each entry from top to bottom to select devices.
*If the feature above is set to Legacy/UEFI/Dual, the following will be displayed:
• Legacy/UEFI/Dual Boot Order #1
• Legacy/UEFI/Dual Boot Order #2
• Legacy/UEFI/Dual Boot Order #3
• Legacy/UEFI/Dual Boot Order #4
• Legacy/UEFI/Dual Boot Order #5
