Chapter 2: Installation
3. Dust Cover
4. CPU Socket
1. Intel Processor
Note: Be sure to cover the CPU socket with the dust cover when the CPU is not in-
stalled.
2. Narrow processor clip (the plastic processor package carrier used for the CPU)

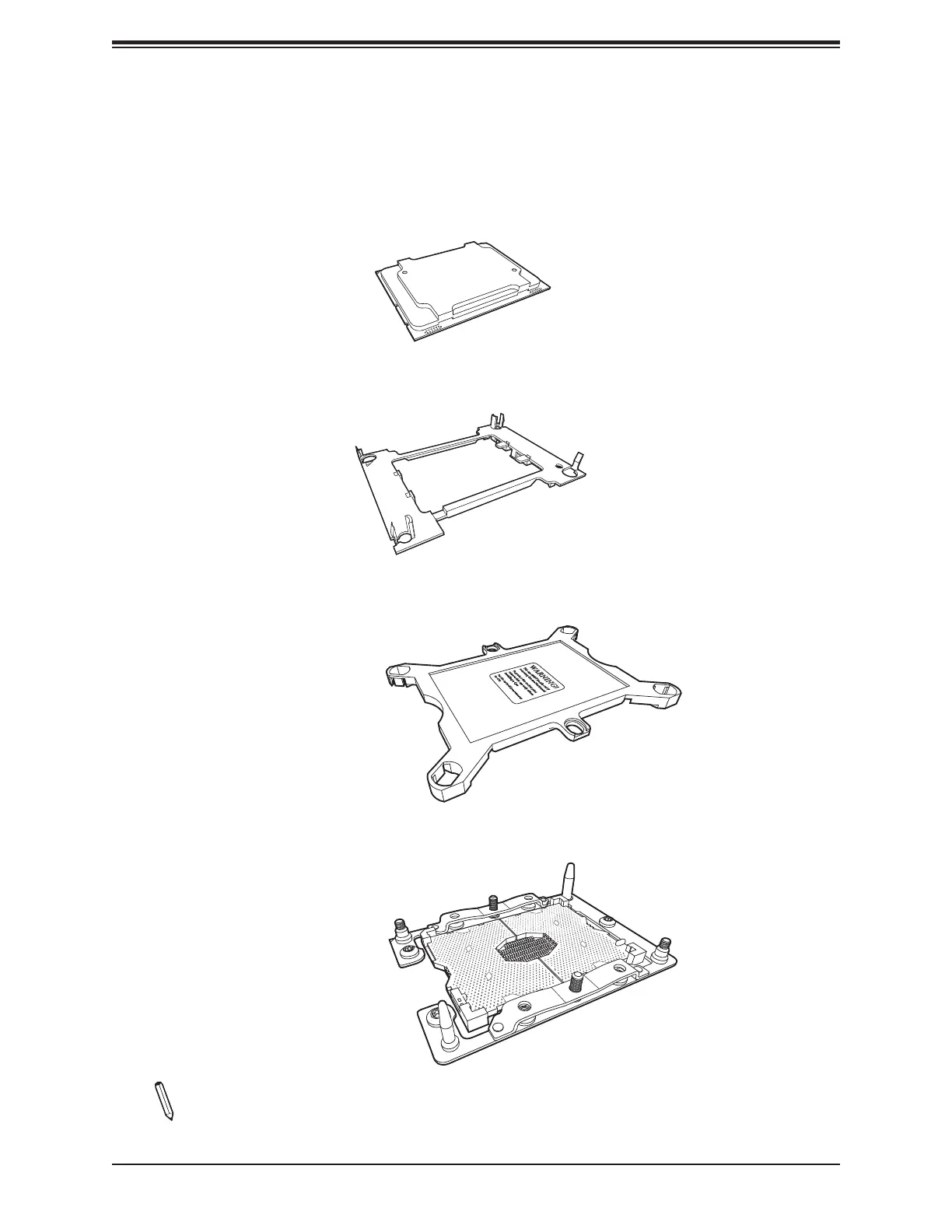

Overview of the Processor Socket Assembly
The processor socket assembly contains 1) Intel Xeon Scalable-SP or 2nd Generation Intel
Xeon Scalable-SP processor, 2) the narrow processor clip, 3) the dust cover, and 4) the CPU
socket.
