Supermicro X11DPG-QT User Manual

Appendix E: Conguring VROC RAID Settings
191
E.2 Conguring RAID Settings

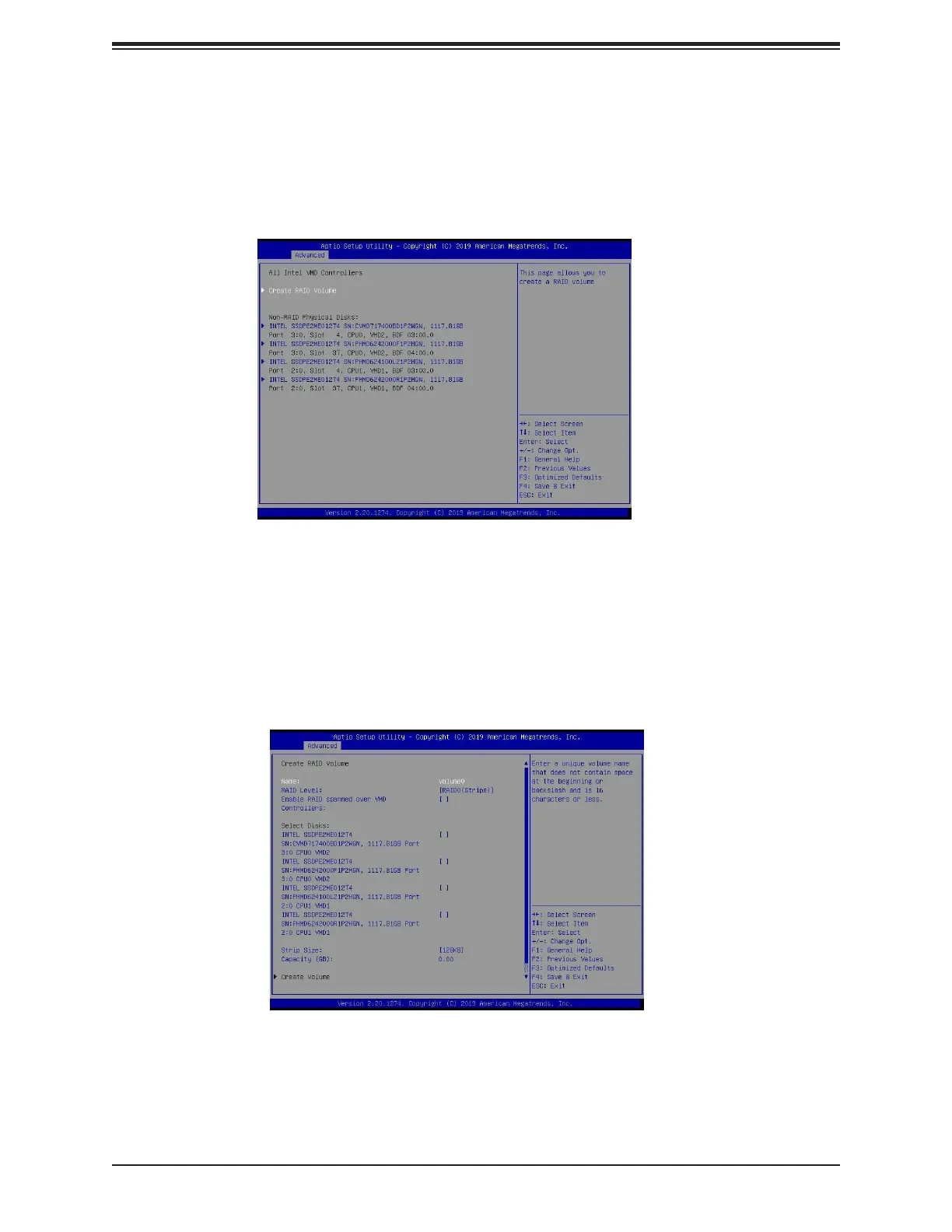

Follow the instructions stated in the E.1 section to access the All Intel VMD Controllers
menu items, the following screen will appear. Please carefully follow the instructions listed in
this section to congure RAID settings for your devices as desired.
To Create a RAID Volume
Use the arrow keys to select Create RAID Volume from the screen above and press <Enter>
to create a RAID Volume. The Create RAID Volume submenu, which allows you to congure
the settings of the RAID volume you've created, will appear as shown below.
