Secure Boot
This feature is available when the platform key (PK) is pre-registered where the platform
operates in the User mode and compatibility support module (CSM) support is disabled in
the BIOS Setup utility. Select Enabled for secure boot ow control. The options are Disabled
and Enabled.
Secure Boot Mode
Use this feature to set the secure boot mode. The options are Standard and Custom. Select
Standard to load manufacturer's default secure variables. Select Custom to change the image
execution policy and to manage secure boot keys.
CSM Support
Select Enabled to support the legacy CSM, which provides compatibility support for traditional
legacy BIOS for system boot. The options are Disabled and Enabled.
F.2 Secure Boot/ Secure Boot Mode/ CSM Support Features
Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Security tab
as shown below.

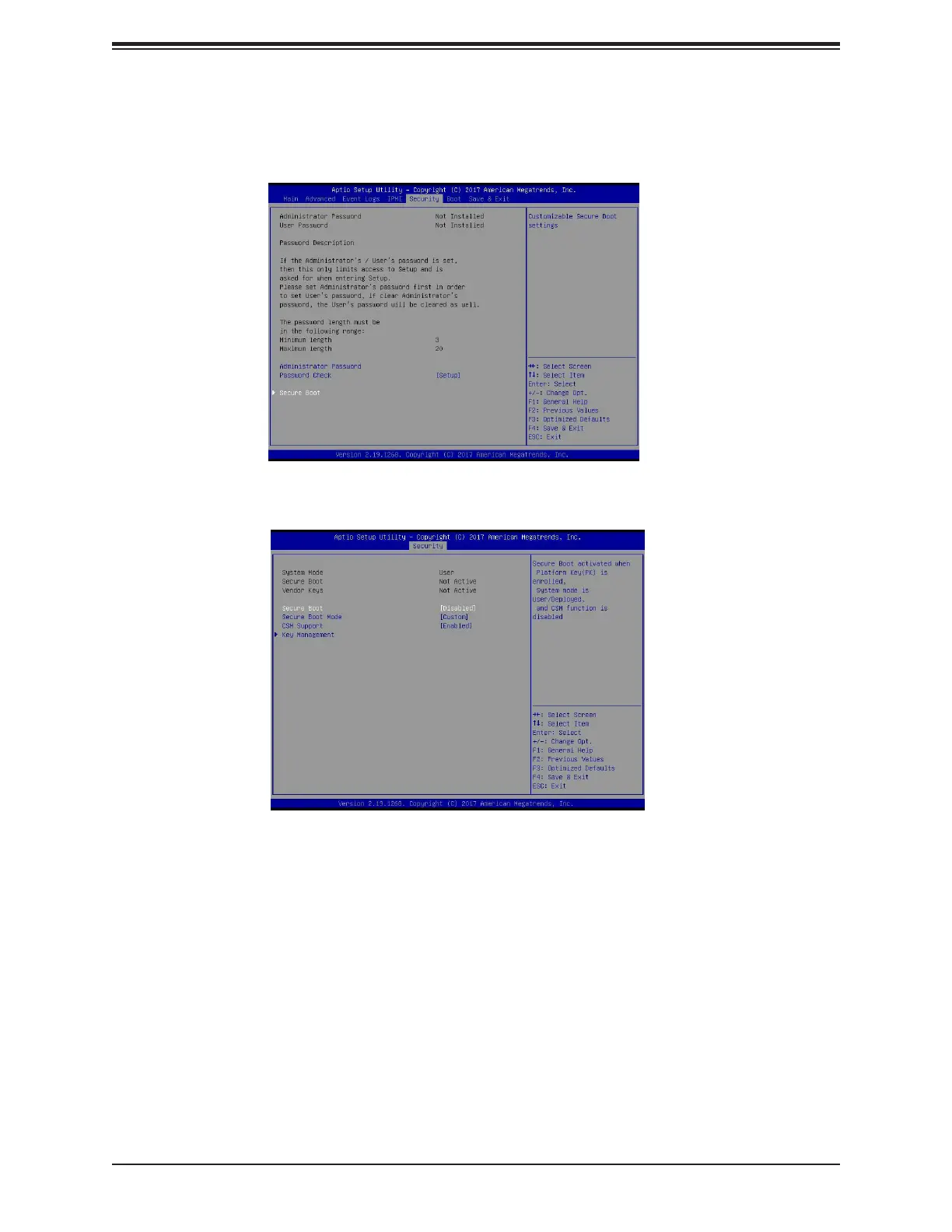

Use the arrow keys to select Secure Boot and press <Enter> to access the menu items. The
following screen will appear.

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
