Supermicro X11DPG-QT User Manual

Super X11DPG-QT User's Manual
174
Appendix B
Software
After the hardware has been installed, you can install the Operating System (OS), congure
RAID settings and install the drivers.
B.1 Microsoft Windows OS Installation
If you will be using RAID, you must congure RAID settings before installing the Windows
OS and the RAID driver. Refer to the RAID Conguration User Guides posted on our website
at www.supermicro.com/support/manuals.
Installing the OS
1. Create a method to access the MS Windows installation ISO le. That might be a DVD,
perhaps using an external USB/SATA DVD drive, or a USB ash drive, or the IPMI KVM
console.
2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your
motherboard and click on "Download the Latest Drivers and Utilities", select the proper
driver, and copy it to a USB ash drive.

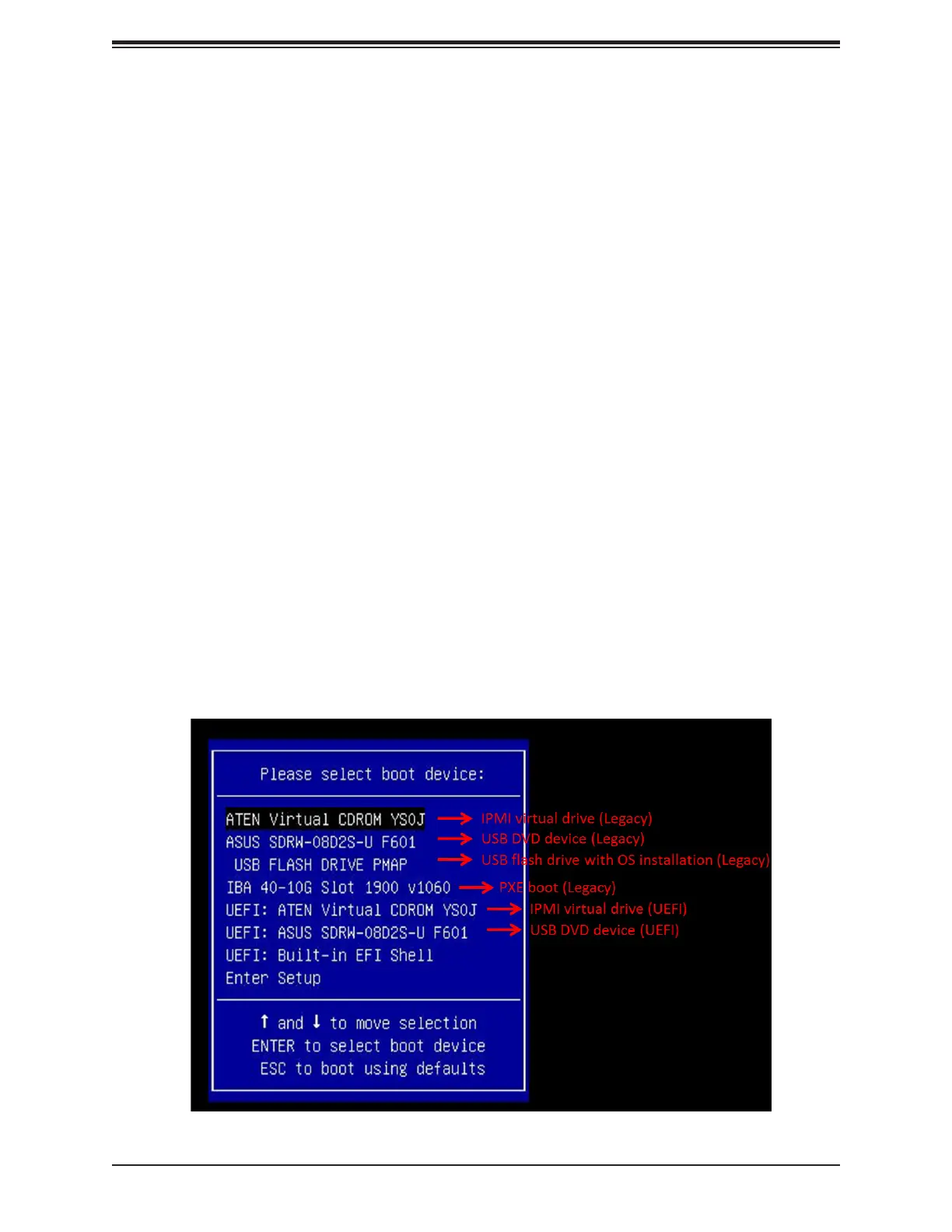

3. Boot from a bootable device with Windows OS installation. You can see a bootable
device list by pressing F11 during the system startup.

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
