Appendix D: UEFI BIOS Recovery
185

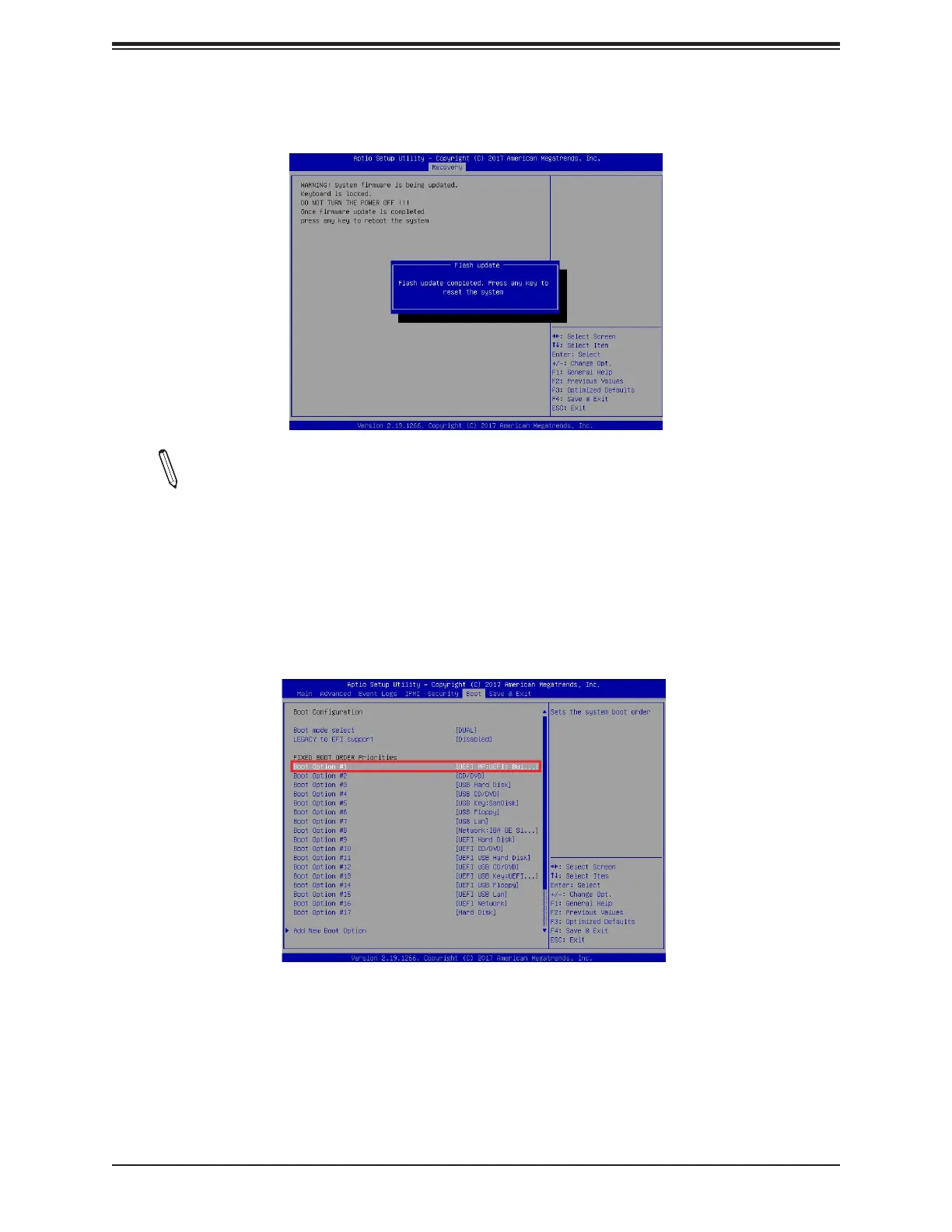

8. Press <Del> during system boot to enter the BIOS Setup utility. From the top of the tool
bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1
as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press
<F4> to save the settings and exit the BIOS Setup utility.
7. After the BIOS recovery process is complete, press any key to reboot the system.
Note: It is recommended that you update your BIOS after BIOS recovery. Please refer
to Chapter 3 for BIOS update instructions.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Supermicro X11DPG-QT and is the answer not in the manual?

Supermicro X11DPG-QT Specifications

General IconGeneral
PS/2 ports quantity0
IPMI LAN (RJ-45) portYes
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Number of SATA III connectors10
Number of DIMM slots16
Maximum LRDIMM memory2000 GB
Supported RDIMM module capacity64GB
Memory voltage1.2 V
Supported memory typesDDR4-SDRAM
Supported memory clock speeds2133, 2400, 2666 MHz
BIOS typeAMI
ACPI version4.0
BIOS memory size64 Mbit
RAID levels0, 1, 5, 10
Wi-FiNo
LAN controllerIntel® X550
Ethernet interface type10 Gigabit Ethernet
On-board graphics card modelAspeed AST2500
Bundled softwareIntel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)8 - 90 %
Supported QPI10.4 GT/s
Processor socketLGA 3647 (Socket P)
Processor manufacturerIntel
Processor number of cores supported28
Component forServer
Motherboard chipsetIntel® C621
Audio output channels7.1 channels
PCI Express x16 (Gen 3.x) slots6
Weight and Dimensions IconWeight and Dimensions
Depth335.3 mm
Width384 mm
