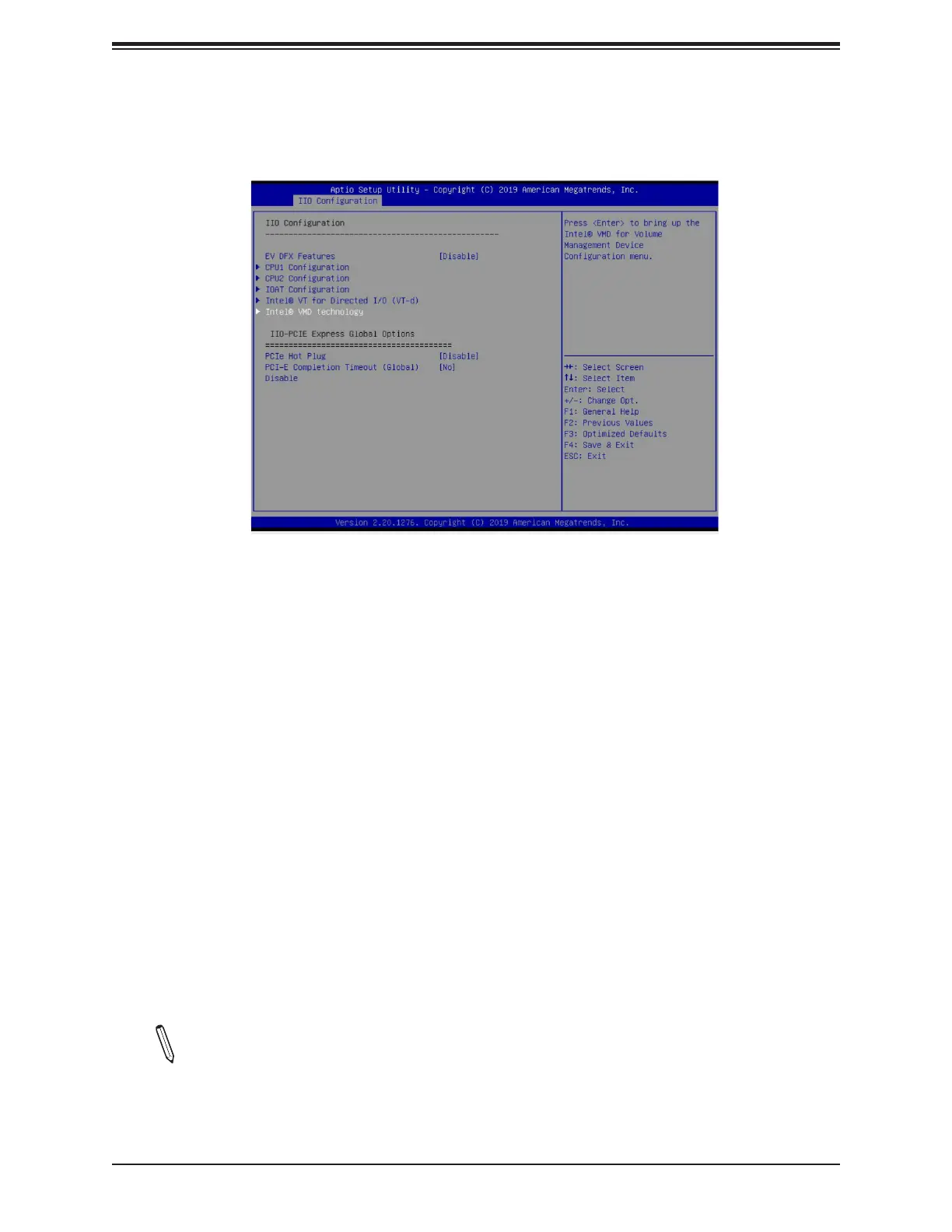

6. When the following screen displays, use the down arrow key to select Intel® VMD
Technology and press <Enter> to enter the Intel® VMD Technology submenu.
Note: After you’ve enabled VMD in the BIOS on a PCIe slot of your choice, this PCIe
slot will be dedicated for VMD use only, and it will no longer support any PCIe device.
To re-activate this slot for PCIe use, please disable VMD in the BIOS.
7. When the Intel® VMD Technology submenu appears, it will display all the PCI slots that
can be congured for VMD support on the screen.
8. From the available PCI slots displayed on the screen, select a PCI slot you want to use
for a VMD device by highlighting it.
9. Select the option [Enable] and press <Enter> to enable the selected slot for VMD
support.
10.Repeat Step 8 ~ Step 9 to select and enable all the PCI slots of your choice for VMD
support.
11. After enabling all PCI slots for VMD support on the BIOS Setup utility, install the VMD
devices (such as add-on cards) on the slots that you've congured for VMD support on
the motherboard. For the changes to take e󰀨ect,
12. Press <F4> to save the settings and exit the BIOS Setup utility. Press <Del> during
system boot to enter the BIOS Setup utility.

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
