Super X11DPG-QT User's Manual
256
For the changes to take e󰀨ect, press <F4> to save the settings and exit the BIOS Setup utility.

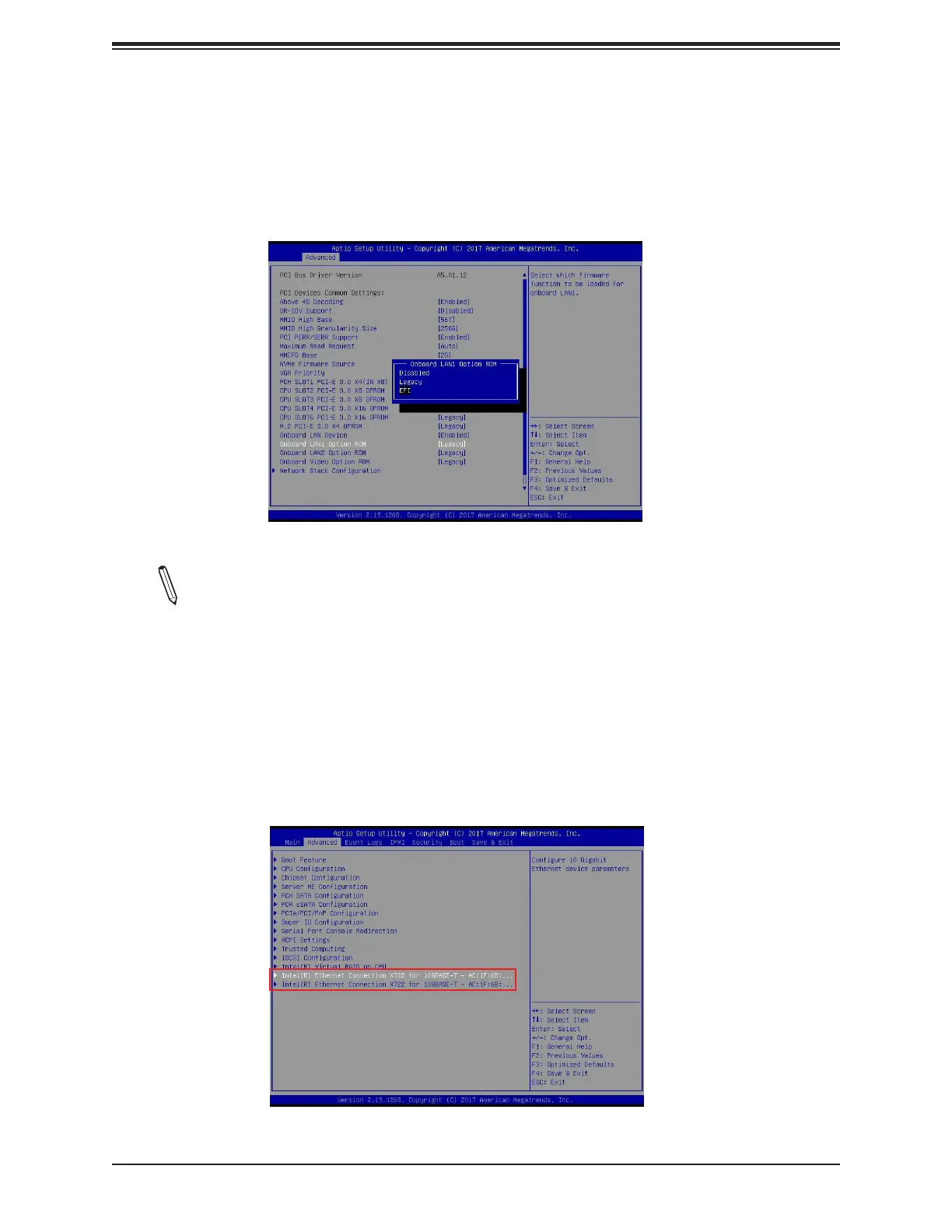

Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Advanced
tab. The feature(s) for onboard Intel® LAN device(s) will become available for conguration
as shown below.
Note : If Onboard LAN1 Option ROM is set to EFI, all features for onboard LAN op-
tion ROM will be set to EFI by the EFI driver. Additionally, these features will become
unavailable except Onboard LAN1 Option ROM.
Onboard LAN1 Option ROM (available when NIC(s) is(are) detected by the system)
Use the arrow keys to select Onboard LAN1 Option ROM and press <Enter>. The options
are Disabled, Legacy, and EFI. Set this feature to EFI.

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
