46
Super X11DPG-QT User's Manual
UID LED
NIC1 Active LED
HDD LED
PWR LED
3.3V Stby/
UID Button
3.3V Stby
Ground
19
Ground
3.3V Stby
20
Ground
Power Fail LED
NIC2 Active LED
NMI
3.3V
3.3V
OH/PWR Fail/Fan Fail LED
Power Button
Reset Button
x
x
Power LED

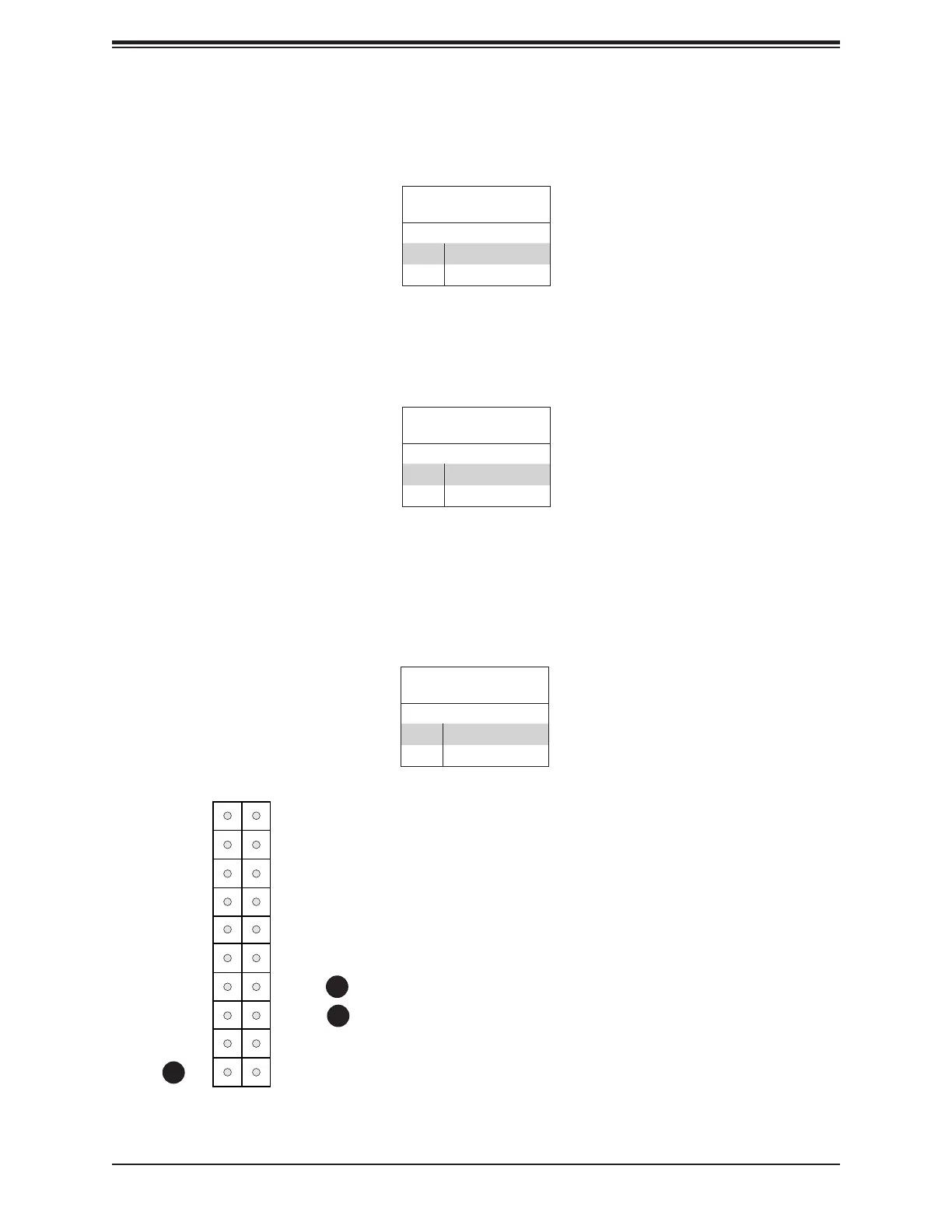

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate
the status of HDD-related activities, including IDE, SATA activities. See the table below for
pin denitions.
1
3
2
1. NMI
2. FP PWR LED
3. HDD LED
NMI Button
The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the
table below for pin denitions.
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 NMI
20 Ground
Power LED
Pin Denitions (JF1)
Pin# Denition
15 Vcc
16 FP PWR LED
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 Vcc
14 HDD LED
