Super X11DPG-QT User's Manual
UID LED
NIC1 Active LED
HDD LED
PWR LED
3.3V Stby/
UID Button
3.3V Stby
Ground
19
Ground
3.3V Stby
20
Ground
Power Fail LED
NIC2 Active LED
NMI
3.3V
3.3V
OH/PWR Fail/Fan Fail LED
Power Button
Reset Button
x
x
Power Button
The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both
pins will power on/o the system. This button can also be congured to function as a suspend
button (with a setting in the BIOS - see Chapter 4). To turn o the power in the suspend
mode, press the button for at least 4 seconds. Refer to the table below for pin denitions.
Reset Button
The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset
switch on the computer case to reset the system. Refer to the table below for pin denitions.

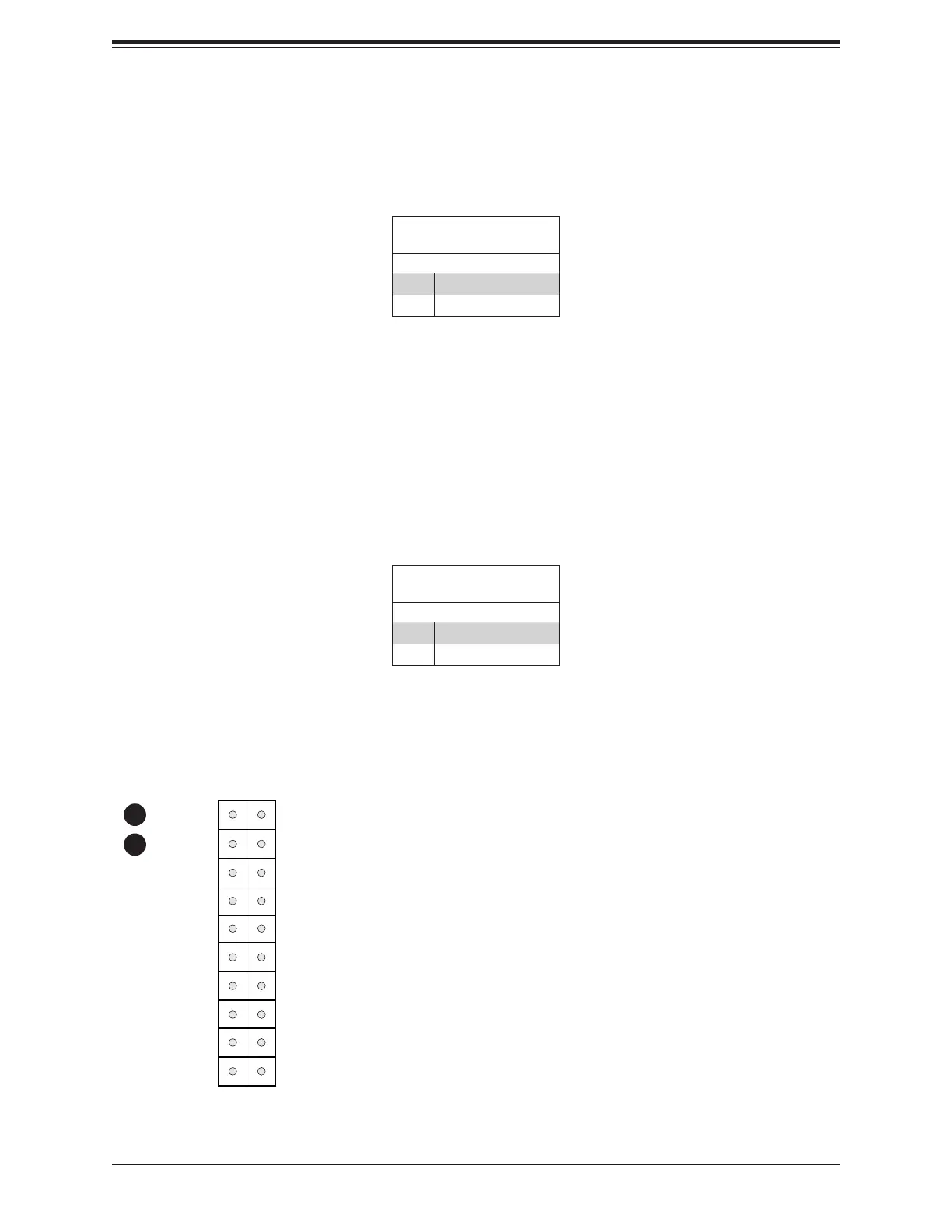

1. Reset Button
2. Power Button
1
2
Reset Button
Pin Denitions (JF1)
Pin# Denition
3 Reset
4 Ground
Power Button
Pin Denitions (JF1)
Pin# Denition
1 Signal
2 Ground
