Supermicro X11DPG-QT User Manual

54
Super X11DPG-QT User's Manual

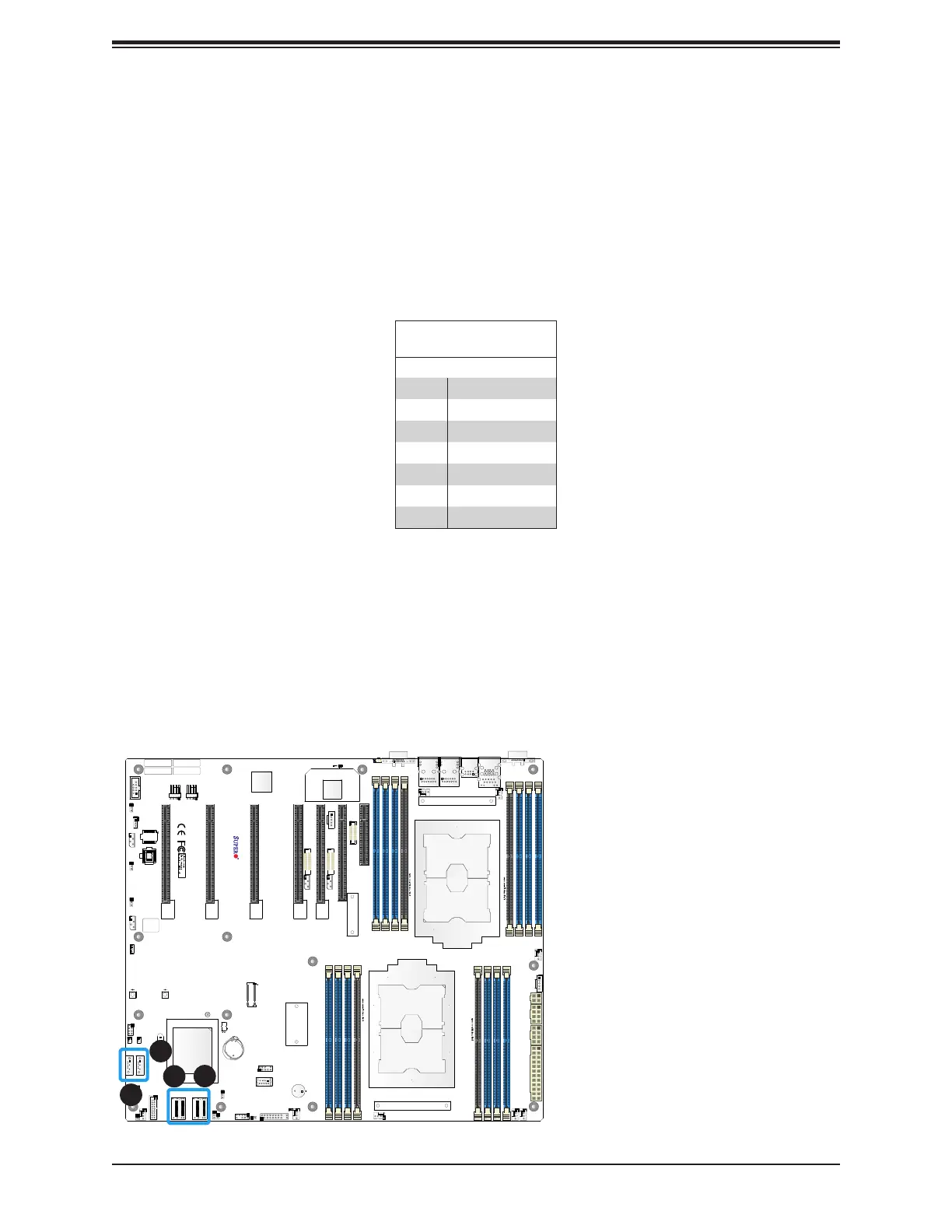

I-SATA 3.0 and S-SATA 3.0 Ports
The X11DPG-QT has eight I-SATA 3.0 ports (I-SATA0~3, I-SATA4~7) which are supported
by the Intel C621 chipset. In addition, it also has two S-SATA 3.0 ports (S-SATA4/ S-SATA5)
that are supported by the Intel SCU. S-SATA4/5 can be used with Supermicro SuperDOMs
which are yellow SATA DOM connectors with power pins built in, and do not require external
power cables. Supermicro SuperDOMs are backward-compatible with regular SATA HDDs or
SATA DOMs that need external power cables. All these SATA ports provide serial-link signal
connections, which are faster than the connections of Parallel ATA.
SATA 3.0 Port
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
1. I-SATA0-3
2. I-SATA4-7
3. S-SATA4
4. S-SATA5
X11DPG-QT
DESIGNED IN USA
REV:1.10A
IPMI CODE
MAC CODE
SAN MAC
BAR CODE
BIOS
LICENSE
CPU1
CPU2
JBT1
PCH
BT1
BMC
VGA
COM1
USB 0/1
IPMI_LAN
USB 4/5 (3.0)
LAN 1
LAN 2
FAN 3
FAN 4
FAN 6
FAN 1
FAN 5
FAN 2
FAN A
FAN B
P2-DIMMD2 P2-DIMMD1 P2-DIMME1
P2-DIMMF1
P1-DIMMA2 P1-DIMMA1 P1-DIMMB1 P1-DIMMC1
JUIDB1
(UID)
LED2
(UID-LED)
LEDM1
JPWR1
JPWR2
JPWR3
LAN
CTRL
P1-DIMMF1 P1-DIMME1 P1-DIMMD1 P1-DIMMD2
P2-DIMMC1 P2-DIMMB1 P2-DIMMA1 P2-DIMMA2
JNCSI1
JTBT1
JPCIE11
JPCIE10
(CPU2 SLOT11 PCI-E 3.0 x4 (IN x8))
(CPU2 SLOT10 PCI-E 3.0 x16)
JPCIE8 JPCIE9
(CPU2 SLOT8 PCI-E 3.0 x16)
JNVI2C2
JNVI2C1
(CPU1 SLOT9 PCI-E 3.0 x16)
JPCIE6 JPCIE4
(CPU2 SLOT6 PCI-E 3.0 x16) (CPU1 SLOT4 PCI-E 3.0 x16)
JPCIE2
(CPU1 SLOT2 PCI-E 3.0 x16)
JGPIO_P2: CPU2-HSSI GPIO JGPIO_P1: CPU1-HSSI GPIO
S-UM12
JPI2C1
JPWR4
LEDPWR
JF1
JHD_AC1
AUDIO_FP
JSPDIF_IN1
JPAC1
JPME2
JTPM1
COM2
JPTG1
JRK1
JIPMB1
JVRM_SEL1
JWD1
JSEN1
JSTBY1
I-SATA0~3I-SATA4~7
USB 6/7 (3.0)
USB 2/3
S-SATA4
S-SATA5
USB8 (3.0)
SP1
M.2 CONNECTOR
JSD1
JSD2
S-SGPIO
JL1
FAN C FAN D
1
2
4
3

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
