Supermicro X9DA7 - SGPIO and IEEE 1394 a Connectors

Chapter 2: Installation
2-33
JPWR1
JPI2C1
LE1
JTPM1
FAN5
FAN7
FAN6
FAN2
FAN3
FAN1
J18
JSD1
SP1
J29
JBR1
JWD1
STBY1
JPI1
JL1
CPU1
P2 DIMMH2
P2 DIMMG2 P2 DIMMH1
P2 DIMMG1
P2 DIMME2 P2 DIMMF1
P2 DIMMF2
P1 DIMMA2
P1 DIMMA1
P1 DIMMB2 P1 DIMMB1
P1 DIMMD2
P1 DIMMD1
J25
CPU2 Slot5 PCI-E 3.0 x16
CPU1 Slot3 PCI-E 3.0 x16
CPU2 Slot2 PCI-E 3.0 x4 in x8
TPM/Port80
JF1
Always Populate DIMMxA First
CPU2
S-SATA3
I-SATA1
COM1
USB3.0 0/1
S-SATA0
P1 DIMMC2 P1 DIMMC1
JSPDIF_In
JBT1
JPME1
BIOS
JD1
LAN1/2
USB2.0
0/1/2/3
JPWR2
J22
Intel
C602
CPU2 Slot6 PCI-E 3.0 x8
J21
7.1 Audio
Audio CTRL
GLAN CTRL
CPLD
S I/O
JPL1
CPU2 Slot4 PCI-E 3.0 x8
Battery
USB3.0 2/3
1394a
CTRL
(CPU1Fan)
(CPU2 Fan)
JIPMB1
JSPDIF_Out
J30
JI2C1
X9DA7/E
Rev.
1.0
L-SAS0~3
Audio FP
SCU-SGPIO1
T-SGPIO1
CNF1
CNF2
L-SAS4~7
FANA
JI2C2
J23
S-SATA2
USB5/6
S-SATA1
I-SATA2
I-SATA3
I-SATA0
CTRL
SAS
CPU1 Slot1 PCI-E 3.0 x16
JOH1
JS6
JS7
DS1
JS5
JS4
FP CTRL
KB/Mouse
USB4
P2 DIMME1
FAN4
A
B
C

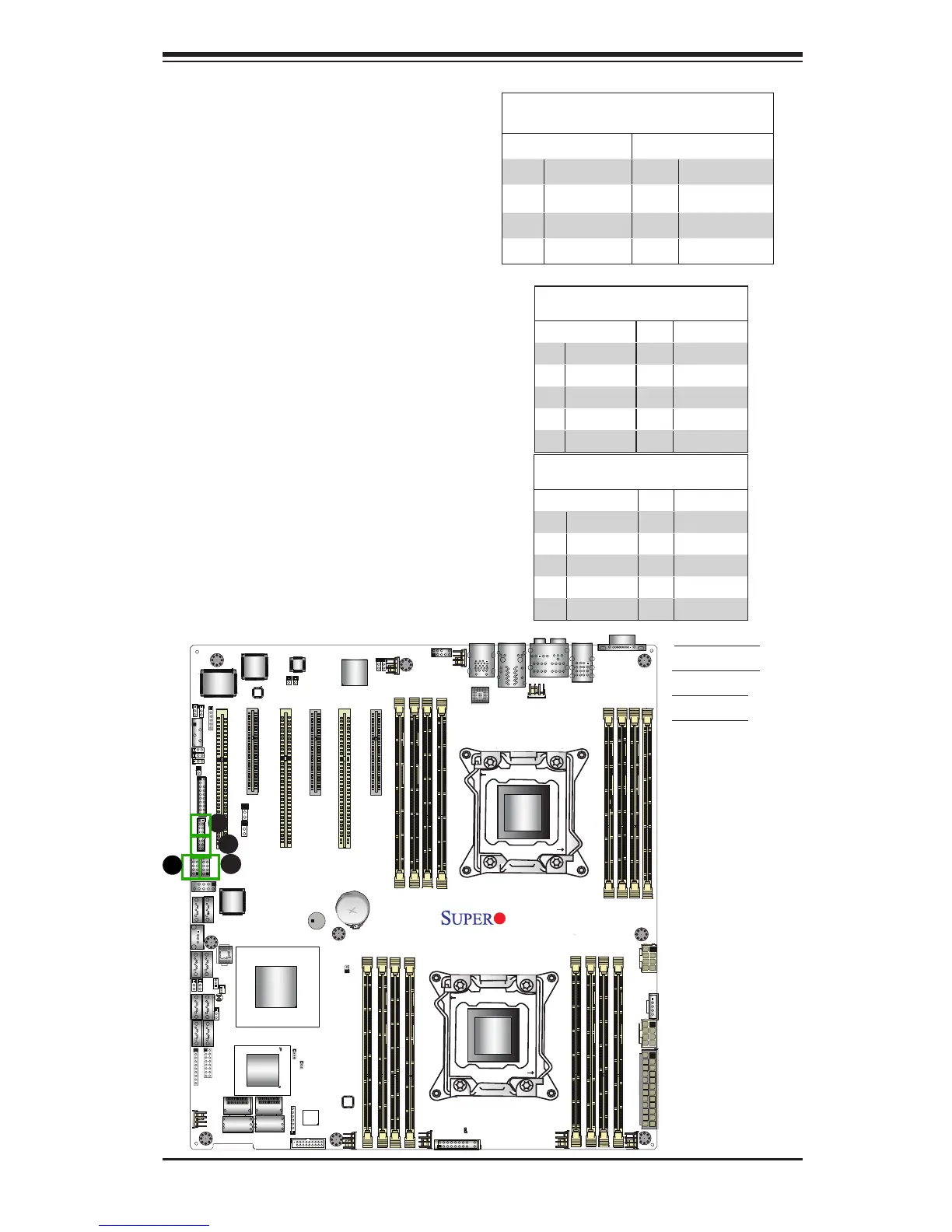

A. T-SGPIO1
B. S-SGPIO1
C. 1394a_1
C. 1394a_2
T-SGPIO 1/S-SGPIO 1 Headers
Two SGPIO (Serial-Link General
Purpose Input/Output) headers are
located on the motherboard. T-SGPIO
supportS SATA interface, and S-
SGPIO 1 is for SAS interface. See the
table on the right for pin denitions.
Note: NC= No Connection
T-SGPIO 1/S-SGPIO 1
Pin Denitions
Pin# Denition Pin Denition
1 NC 2 NC
3 Ground 4 Data
5 Load 6 Ground
7 Clock 8 NC
IEEE 1394a_1/ 1394a_2
Connectors
1394a_1 (CNF1) and 1394a_2 (CNF2)
provide IEEE 1394a connections on
the motherboard. Connect IEEE 1394
cables to the connectors for IEEE
1394a support. See the tables on the
right for pin denitions.
1394_1
Pin Denitions
Pin# Denition Pin# Denition
1 PTPA0+ 2 PTPA0-
3 GND 4 GND
5 PTPB0+ 6 PTPB0-
7 PWR 1394a 8 PWR 1394a
10 Shield GND
1394_2
Pin Denitions
Pin# Denition
Pin#
Denition
1 PTPA1+ 2 PTPA1-
3 GND 4 GND
5 PTPB1+ 6 PTPB1-
7 PWR 1394a 8 PWR 1394a
10
Shield GND
