2-3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on
the label area.
Notes:
•Always connect the power cord last, and always remove it before adding,
removing or changing any hardware components. Make sure that you install
the processor into the CPU socket before you install the CPU heatsink.
•If you buy a CPU separately, make sure that you use an Intel-certied multi-
directional heatsink only.
•Make sure to install the system board into the chassis before you install
the CPU heatsink.
•When receiving a server board without a processor pre-installed, make sure
that the plastic CPU socket cap is in place and none of the socket pins are
bent; otherwise, contact your retailer immediately.
•Refer to the Supermicro website for updates on CPU support.
Press down
on Load Lever
labeled 'Open 1st'.

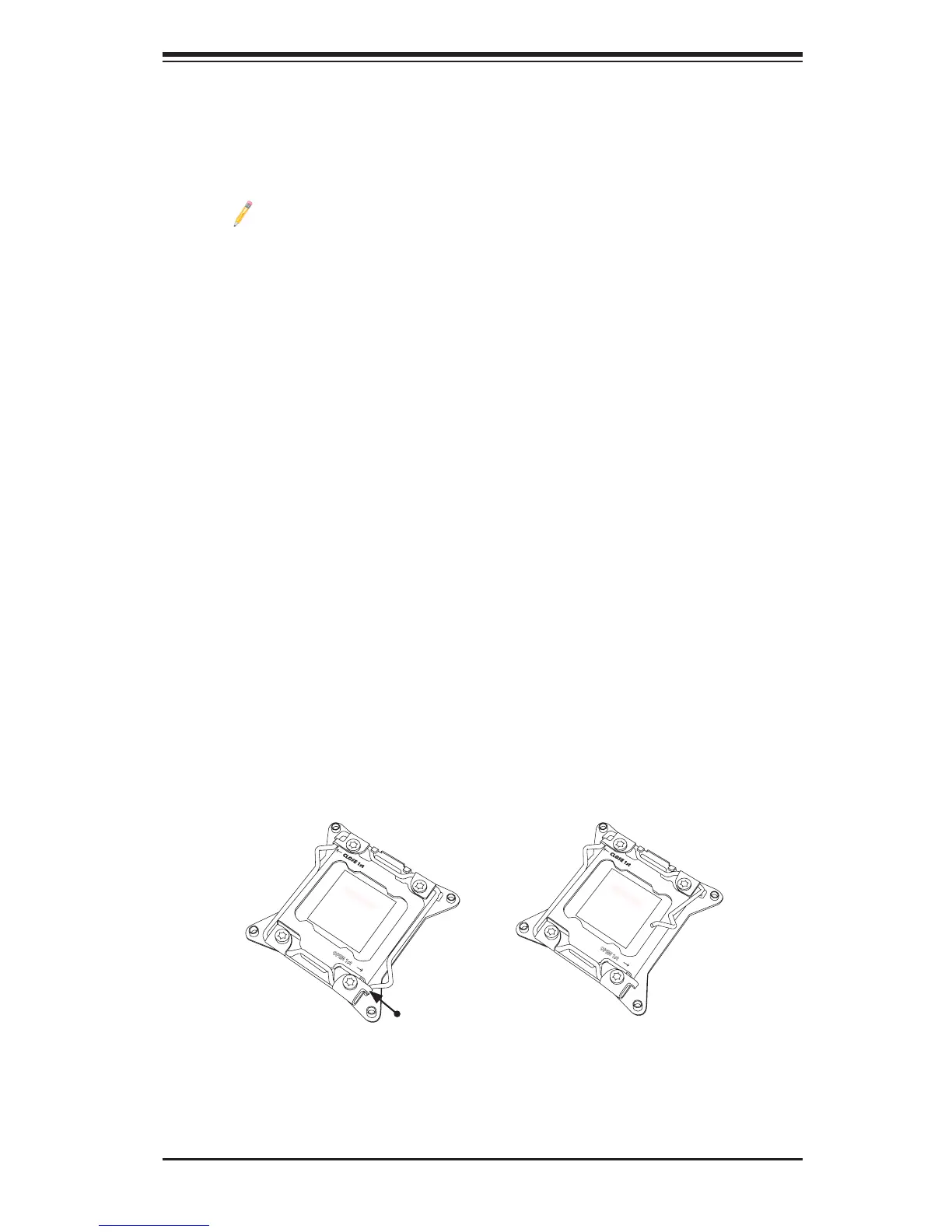

Installing the LGA2011 Processor
1. There are two load levers on the LGA2011 socket. To open the socket cover,
rst press and release the load lever labeled 'Open 1st'.
1
2
OPEN 1st
OPEN 1st

Supermicro X9DA7 Specifications

General

Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 connectors	3
Integrated SAS ports	8
Number of SATA II connectors	6
Maximum UDIMM memory	128 GB
Number of DIMM slots	16
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	512 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	Serial Attached SCSI (SAS)
Wi-Fi	No
LAN controller	Intel® I350
Ethernet interface type	Gigabit Ethernet
Cables included	FireWire, SATA
Bundled software	SuperDoctor® III Watch Dog, NMI
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	6.4, 7.2, 8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Processor thermal power (max)	150 W
Processor number of cores supported	4, 6, 8
Component for	Workstation
Motherboard chipset	Intel® C602
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Sustainability certificates	RoHS

Weight and Dimensions

Depth	332 mm
Width	305 mm
