Supermicro X9DA7 - 2-10 SATA;SAS Connections; Serial ATA and SAS Ports

Chapter 2: Installation
2-41
JPWR1
JPI2C1
LE1
JTPM1
FA N5
FA N7
FA N6
FA N2
FA N3
FAN1
J18
JSD1
SP1
J29
JBR1
JWD1
STBY1
JPI1
JL1
CPU1
P2 DIMMH2
P2 DIMMG2 P2 DIMMH1
P2 DIMMG1
P2 DIMME2 P2 DIMMF1
P2 DIMMF2
P1 DIMMA2
P1 DIMMA1
P1 DIMMB2 P1 DIMMB1
P1 DIMMD2
P1 DIMMD1
J25
CPU2 Slot5 PCI-E 3.0 x16
CPU1 Slot3 PCI-E 3.0 x16
CPU2 Slot2 PCI-E 3.0 x4 in x8
TPM/Port80
JF1
Always Populate DIMMxA First
CPU2
S-SATA3
I-SATA1
COM1
USB3.0 0/1
S-SATA0
P1 DIMMC2 P1 DIMMC1
JSPDIF_In
JBT1
JPME1
BIOS
JD1
LAN1/2
USB2.0
0/1/2/3
JPWR2
J22
Intel
C602
CPU2 Slot6 PCI-E 3.0 x8
J21
7.1 Audio
Audio CTRL
GLAN CTRL
CPLD
S I/O
JPL1
CPU2 Slot4 PCI-E 3.0 x8
Battery
USB3.0 2/3
1394a
CTRL
(CPU1Fan)
(CPU2 Fan)
JIPMB1
JSPDIF_Out
J30
JI2C1
X9DA7/E
Rev.
1.0
L-SAS0~3
Audio FP
SCU-SGPIO1
T-SGPIO1
CNF1
CNF2
L-SAS4~7
FANA
JI2C2
J23
S-SATA2
USB5/6
S-SATA1
I-SATA2
I-SATA3
I-SATA0
CTRL
SAS
CPU1 Slot1 PCI-E 3.0 x16
JOH1
JS6
JS7
DS1
JS5
JS4
FP CTRL
KB/Mouse
USB4
P2 DIMME1
FAN4
Note: For more information on HostRAID conguration, please refer to the
HostRAID User's Guide posted on our Website @ http://www.supermicro.
com.
SATA/SAS
Pin Denitions
Pin# Denition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground

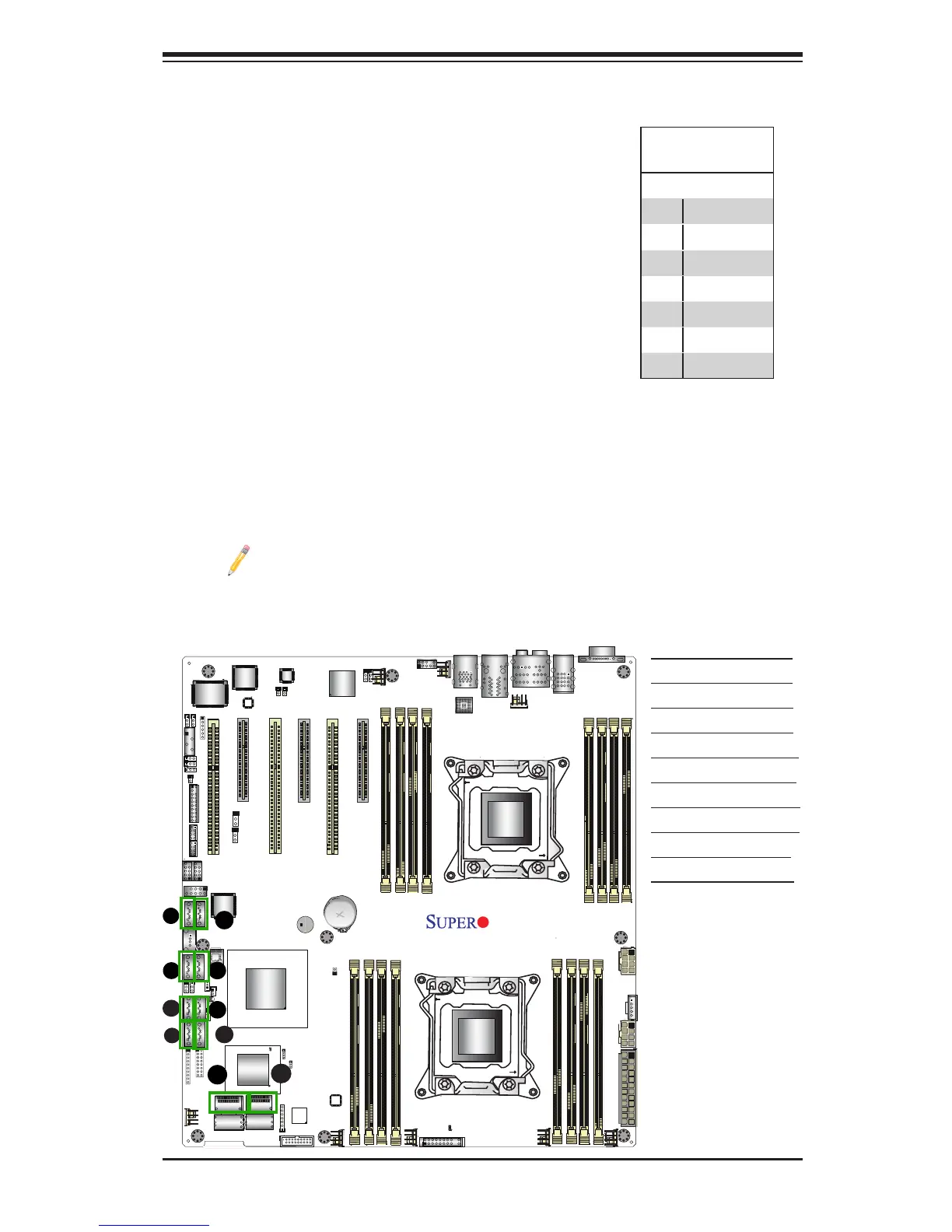

A. I-SATA0 (SATA3.0)
B. I-SATA1 (SATA3.0)
C. I-SATA2 (SATA2.0)
D. I-SATA3 (SATA2.0)
E. S-SATA0 (SATA2.0)
F. S-SATA1 (SATA2.0)
G. S-SATA2 (SATA2.0)
H. S-SATA3 (SATA2.0)
I. L-SAS0~3 (X9DA7)
J. L-SAS4~7 (X9DA7)
Serial ATA Ports
Two SATA 3.0 Ports (I-SATA0/1), colored in white, and
six SATA 2 Ports (I-SATA2/3, S-SATA0~3), colored in
black, are located on the motherboard. I-SATA ports are
supported by the Intel PCH chip; while S-SATA ports
are supported by SCU (Storage Control Unit). These
ports provide serial-link signal connections, which are
faster than the connections of Parallel ATA. See the
table on the right for pin denitions.
C
D
E
2-10 SATA/SAS Connections
F
A
SAS2 Ports (X9DA7 Only)
Eight Serial_Attached_SCSI Ports (L-SAS 0~3, L-SAS 4~7) provide
Serial_Attached SCSI connections on the motherboard. SAS Connections can
function as SATA ports if the connectors are used with the mini-ipass cables. See
the table on the right for pin denitions.
G
H
B
I
J
