Supermicro X9DA7 User Manual

Appendix B: Software Installation Instructions
B-1

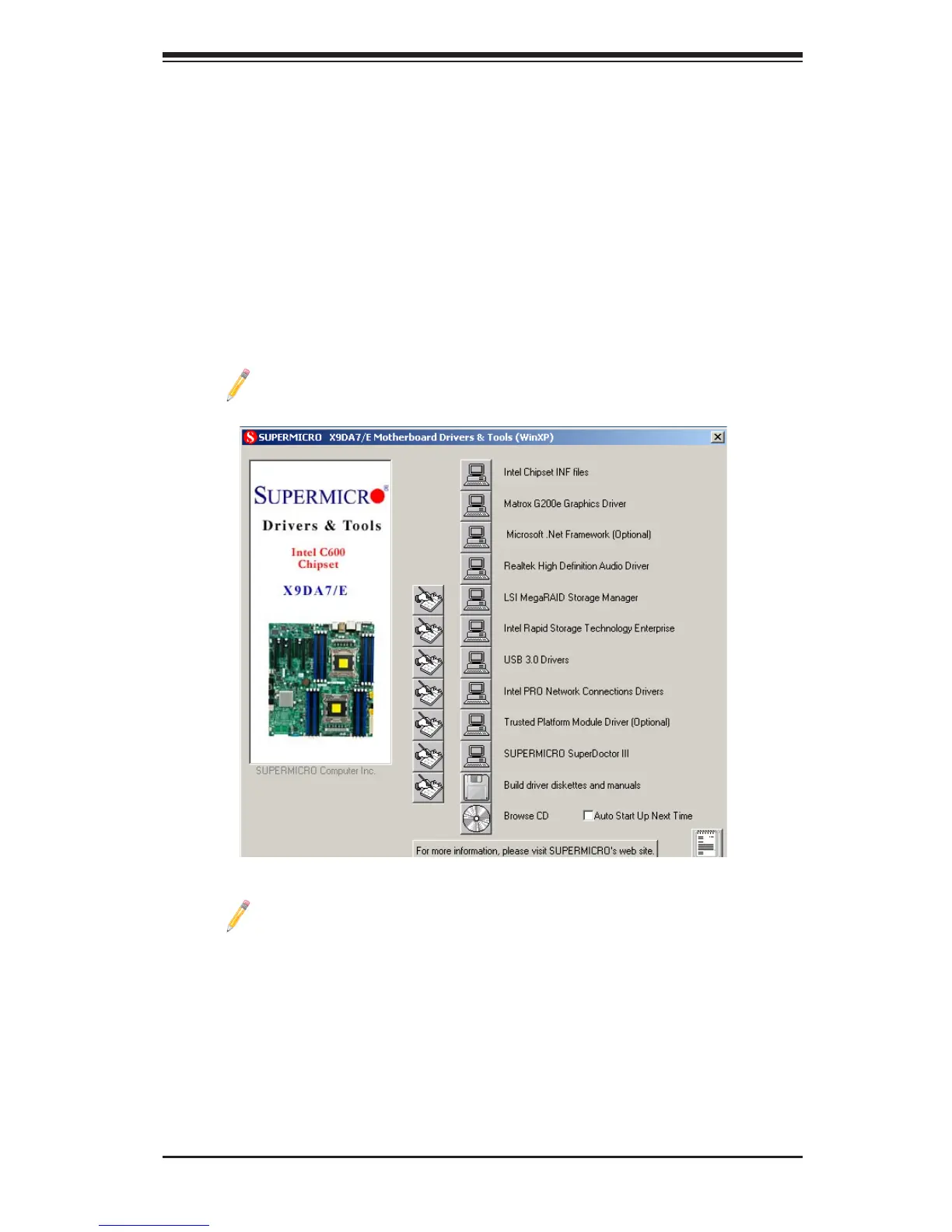

Driver/Tool Installation Display Screen
Note 1: Click the icons showing a hand writing on the paper to view the
readme les for each item. Click a computer icon to the right of an item to
install an item (from top to the bottom) one at a time. After installing each
item, you must reboot the system before proceeding with the next item
on the list. The bottom icon with a CD on it allows you to view the entire
contents of the CD.
Note 2: When making a storage driver diskette by booting into a Driver
CD, please set the SATA Conguration to "Compatible Mode" and congure
SATA as IDE in the BIOS Setup. After making the driver diskette, be sure
to change the SATA settings back to your original settings.
Appendix B
Software Installation Instructions
B-1 Installing Software Programs
After you've installed the operating system, a screen as shown below will appear.
You are ready to install software programs and drivers that have not yet been in-
stalled. To install these programs, click the icons to the right of these items.
Note: To install the Windows OS, please refer to the instructions posted
on our Website at http://www.supermicro.com/support/manuals/.

Supermicro X9DA7 Specifications

General

Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 connectors	3
Integrated SAS ports	8
Number of SATA II connectors	6
Maximum UDIMM memory	128 GB
Number of DIMM slots	16
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	512 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	Serial Attached SCSI (SAS)
Wi-Fi	No
LAN controller	Intel® I350
Ethernet interface type	Gigabit Ethernet
Cables included	FireWire, SATA
Bundled software	SuperDoctor® III Watch Dog, NMI
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	6.4, 7.2, 8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Processor thermal power (max)	150 W
Processor number of cores supported	4, 6, 8
Component for	Workstation
Motherboard chipset	Intel® C602
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Sustainability certificates	RoHS
