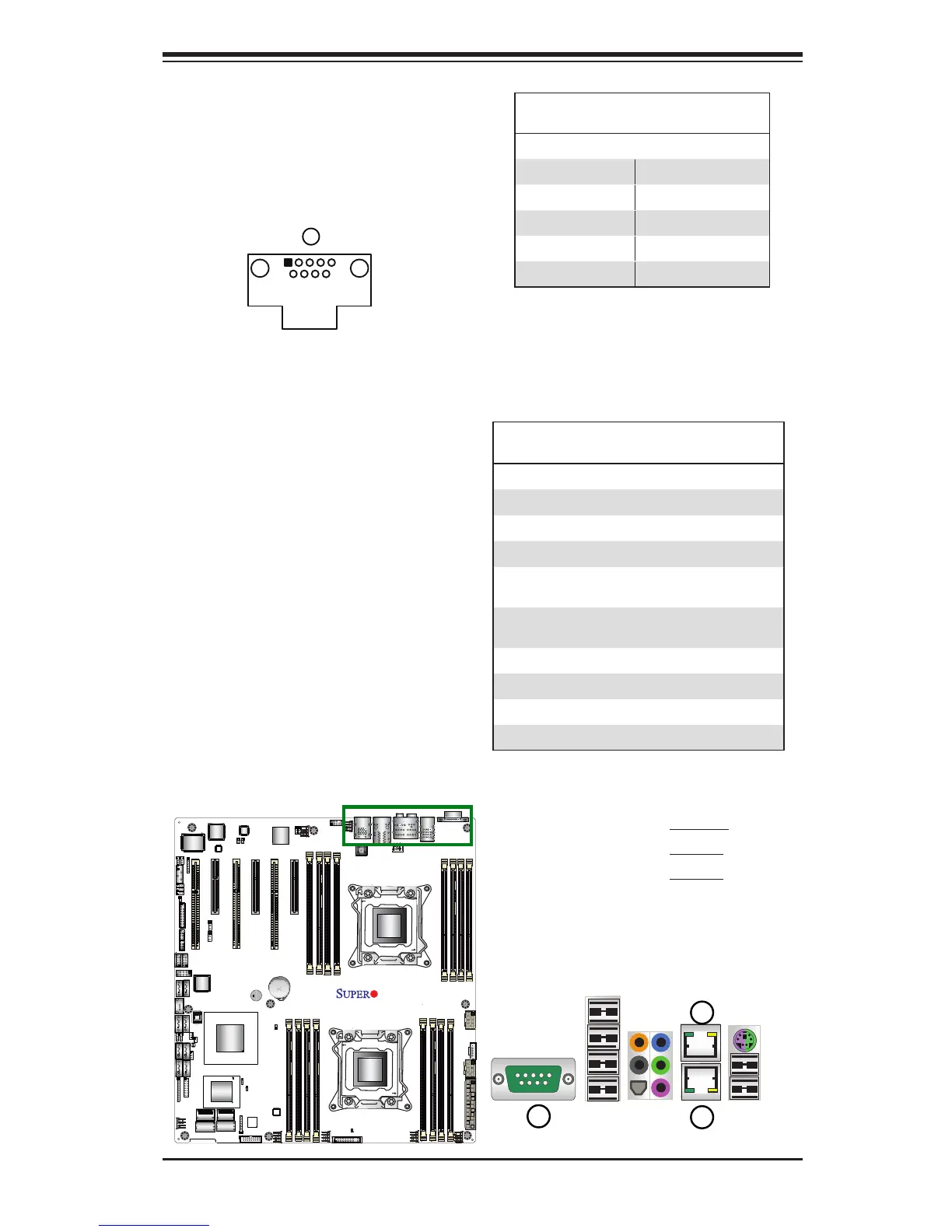

Supermicro X9DA7 - Serial and Ethernet Ports

Chapter 2: Installation
2-19
1. COM1
2. LAN1
3. LAN2
Serial Ports
One COM connection (COM1) is lo-
cated on the Backplane I/O panel on
the motherboard. See the table on the
right for pin denitions.
Serial COM Port
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
COM1
COM2
1
2
3
1
Ethernet Ports
Two Gigabit Ethernet ports (LAN1/2)
are located on the I/O backplane on
the motherboard All these ports ac-
cept RJ45 type cables. (Note: Please
refer to the LED Indicator Section for
LAN LED information.)
LAN Ports
Pin Denition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED (Yel-
low, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)
